Artesyn

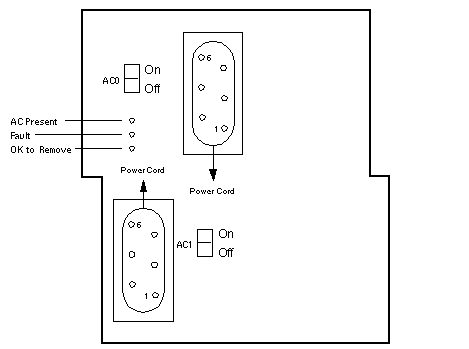

4000/4700 Watt Power Supply

300-1705 300-1917
AC Input Power Supply
Type A196
Specification 950-4603
April 2005		 AC Input Power Supply
Type A196
Specification 950-4603
March 2006

AC Input

200 - 240V 47 - 63Hz 24 Amps RMS Maximum with 87A load current
200 - 240V 47 - 63Hz 28.3 Amps RMS Maximum with 104A load current
Operating Range 180-264Vrms 47-63Hz

DC Output

+46.00V 87A 4000 Watt with one or two AC input sources
+45.22V 104A 4700 Watt with two AC input sources

Notes

  1. This Power Supply weighs 19.5 Kilograms (43 Lbs).
  2. Front Power Supplies are labeled PS0, PS1, and PS2 from right to left.
  3. Rear Power Supplies are labeled PS3, PS4, and PS5 from right to left.
  4. There is a different part number for the upper and lower power cord.
  5. The 300-1705 was not factory configured in the Sun Fire 12K or Sun Fire 15K.
  6. The 300-1917 was not factory configured in the Sun Fire 12K or Sun Fire 15K.
  7. 2GB DIMMs in the 15K require power supply 300-1705 or 300-1917.
  8. 2GB DIMMs in the 25K require power supply 300-1705, 300-1917, or 300-1813.
  9. 1.8GHz Uniboards in the 15K and 25K require power supply 300-1705, 300-1917, or 300-1813.
    Power Supply Upgrade Kit C-HE-POWER-KIT-Z contains six 300-1917 power supplies.
