CPU/Memory Uniboard

501-6520 501-6550 0MB w/o Cache w/o USIV 0MB 501-6520 8× 8MB Ecache w/o USIV 540-5664 0MB FRU 4 × 1050MHz USIV 0MB 501-6520 November 2003 Jaguar 1050 540-5940 0MB FRU 4 × 1200MHz USIV 0MB 501-6520 November 2003 Jaguar 1200 (see 12K/15K/E20K/E25K Notes below)

501-6863 501-6864 0MB w/o Cache w/o USIV 0MB 501-6863 8× 8MB Ecache w/o USIV 540-6251 0MB FRU 4 × 1200MHz USIV 0MB 501-6863 June 2004 Jaguar 1200 (see 12K/15K/E20K/E25K Notes below)

501-6783 501-6826 0MB w/o Cache w/o USIV 0MB 501-6783 8× 8MB Ecache w/o USIV 540-6248 0MB FRU 4 × 1050MHz USIV November 2004 0MB 501-6783 Jaguar 1050 540-6233 0MB FRU 4 × 1200MHz USIV November 2004 0MB 501-6783 Jaguar 1200 (see 12K/15K/E20K/E25K Notes below) 540-6295 0MB FRU 4 × 1350MHz USIV January 2005 0MB 501-6783 Jaguar 1350 (see 12K/15K/E20K/E25K Notes below)

501-7396 0MB w/o Cache w/o USIV+ 540-6803 0MB FRU 4 × 1350MHz USIV April 2006 0MB 501-7396 Jaguar 1350 (see 12K/15K/E20K/E25K Notes below) 540-6830 16GB Option 32 × 512MB XUS4BD-482-1350-Z XUS4BD-482-1350C-Z 540-6831 32GB Option 32 × 1GB XUS4BD-484-1350-Z XUS4BD-484-1350C-Z 540-7024 64GB Option 32 × 2GB XUS4BD-488-1350-Z XUS4BD-488-1350C-Z

501-6783 501-6909 0MB w/o Cache w/o USIV+ 0MB 501-6783 8× 16MB Ecache w/o USIV+ 540-6439 0MB FRU 4 × 1500MHz USIV+ August 2005 0MB 501-6783 Panther 1500 (see 12K/15K/E20K/E25K Notes below)

501-7396 0MB w/o Cache w/o USIV+ 540-6832 0MB FRU 4 × 1500MHz USIV+ April 2006 0MB 501-7396 Panther 1500 (see 12K/15K/E20K/E25K Notes below) 540-6833 16GB Option 32 × 512MB XUS4BD-482-1500-Z XUS4BD-482-1500C-Z 540-6834 32GB Option 32 × 1GB XUS4BD-484-1500-Z XUS4BD-484-1500C-Z 540-6802 64GB Option 32 × 2GB XUS4BD-488-1500-Z XUS4BD-488-1500C-Z

501-7515 0MB w/o Cache w/o USIV+ (see 1.8GHz Notes below) 540-6753 April 2006 540-7527 August 2007 0MB FRU 4 × 1800MHz USIV+ 0MB 501-7515 Panther 1800 (see 12K/15K/E20K/E25K Notes below) 540-7528 540-7071 540-6754 540-7201 540-7535 16GB Option 32 × 512MB XUS4BD-482-1800-Z XUS4BD-482-1800C-Z 540-7529 540-7072 540-6755 540-7202 540-7536 32GB Option 32 × 1GB XUS4BD-484-1800-Z XUS4BD-484-1800C-Z 540-7530 540-7073 540-6756 540-7203 540-7537 64GB Option 32 × 2GB XUS4BD-488-1800-Z XUS4BD-488-1800C-Z

501-7515 0MB w/o Cache w/o USIV+ 540-7123 0MB FRU 4 × 1950MHz USIV+ September 2007 0MB 501-7515 Panther 1950 (E4900/E6900 E20K/E25K only) (see 1.95GHz Notes below) 540-7519 0MB FRU 4 × 1950MHz USIV+ July 2011 0MB 501-7515 Panther 1950 (see 1.95GHz Notes below) 540-7132 16GB Option 16 × 1GB XUS4BD-444-1950-Z 540-7133 32GB Option 16 × 2GB XUS4BD-448-1950-Z

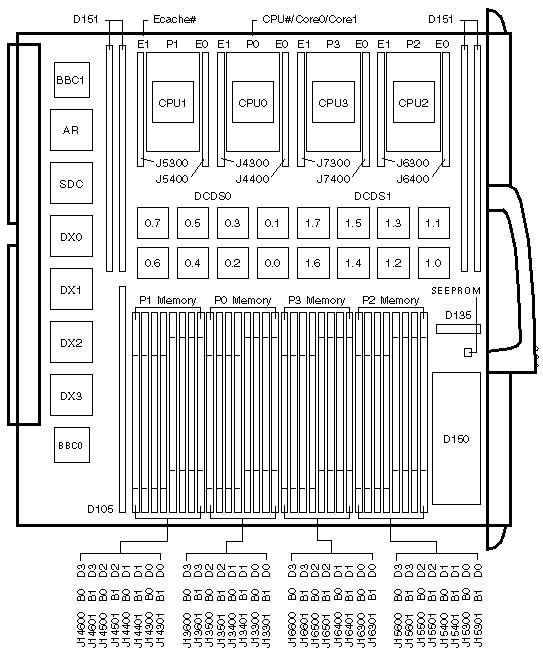

CPU1 and CPU0 Memory SOCKET CPU BANK DIMM J14600 J14601 J14500 J14501 J14400 J14401 J14300 J14301 P1 P1 P1 P1 P1 P1 P1 P1 B0 B1 B0 B1 B0 B1 B0 B1 D3 D3 D2 D2 D1 D1 D0 D0 J13600 J13601 J13500 J13501 J13400 J13401 J13300 J13301 P0 P0 P0 P0 P0 P0 P0 P0 B0 B1 B0 B1 B0 B1 B0 B1 D3 D3 D2 D2 D1 D1 D0 D0

CPU3 and CPU2 Memory SOCKET CPU BANK DIMM J16600 J16601 J16500 J16501 J16400 J16401 J16300 J16301 P3 P3 P3 P3 P3 P3 P3 P3 B0 B1 B0 B1 B0 B1 B0 B1 D3 D3 D2 D2 D1 D1 D0 D0 J15600 J15601 J15500 J15501 J15400 J15401 J15300 J15301 P2 P2 P2 P2 P2 P2 P2 P2 B0 B1 B0 B1 B0 B1 B0 B1 D3 D3 D2 D2 D1 D1 D0 D0





System Codenames

Notes

1. The minimum operating system:
   • 1050MHz or 1200MHz:
     Solaris 8 2/04 or Solaris 9 4/04
   • 1350MHz:
     Solaris 8 2/04, Solaris 9 4/04, or Solaris 10 3/05
   • 1500MHz, 1800MHz or 1950MHz:
     Solaris 9 9/05 or Solaris 10 3/05 HW1
2. Four DIMMs of the same size form a bank.
3. A populated DIMM bank requires an UltraSPARC IV CPU.
4. Mixing UltraSPARC III Cu, UltraSPARC IV, and UltraSPARC IV+ is supported.
5. F540-5940 is made with covers 340-4293 and 340-7852 and heatsink 541-0078.
6. F540-6251 is made with cover 541-0141 and heatsink 541-0122.
7. F540-6251 replaced F540-5940 in June 2004. (WO_29286)

1.8GHz Notes

1. 540-7071/540-7072/540-7073 were released and added to 541-1346/541-1347/541-1348 in October 2006. (WO_34180)
   These parts include high voltage (HV) UltraSPARC IV+ 527-1271 or 527-1272.
2. 540-7201/540-7202/540-7203 were released in February 2007. (WO_35197)
   They were added to 541-1346/541-1347/541-1348 in March 2007. (WO_35481)
   These parts include max voltage (MV) UltraSPARC IV+ 527-1312 or 527-1315.
3. 540-7528/540-7529/540-7530 were released in August 2007. (WO_37594)
   They were added to 541-1346/541-1347/541-1348 in August 2007. (WO_37680)
   These parts include high voltage (HV) UltraSPARC IV+ 527-1271.
4. 540-7535/540-7536/540-7537 were released in August 2007. (WO_37670)
   They were added to 541-1346/541-1347/541-1348 in August 2007. (WO_37680)
   These parts include max voltage (MV) UltraSPARC IV+ 527-1312.

1.95GHz Notes

1. The maximum number of DIMMs is sixteen in Bank 0 only.
2. The 1.95GHz Uniboard operates at 1.5GHz if Bank 0 and 1 DIMMs are installed.
3. Capacity on Demand is not supported.

Sun Fire 4800/6800/E4900/E6900 Notes

1. The minimum System Controller firmware level:
   • 1050MHz or 1200MHz:
     5.16
   • 1350MHz:
     5.18.1
   • 1500MHz:
     5.19
   • 1800MHz:
     5.20.1
   • 1950MHz:
     5.20.4
2. System Controller firmware 5.19.1 may cause a panic. (BugID 15285434 [SUNBT6319704])
   Use >= 5.19.2.
3. The Sun Fire 4800 requires E4900 Power Supply 300-1596.
   1800MHz and 1950MHz require Power Supply 300-1837 on Sun Fire 4800 and E4900.
   E4900-BASE2Z (announced August 2006) includes 300-1837.
4. The Sun Fire 4800 requires E4900 Fan Trays 540-5997, 540-5998, and 540-5999.
   1800MHz and 1950MHz require Fan Trays 541-1134, 541-1135, and 541-1136 on Sun Fire 4800 and E4900.
   E4900-BASE2Z (announced August 2006) includes 541-1134, 541-1135, and 541-1136.
5. XE4900-USIV+KIT-Z includes three 300-1837 power supplies and fan trays 541-1134, 541-1135, and 541-1136.
6. The Sun Fire 6800 requires E6900 Power Supply 300-1595.
   1800MHz requires E6900 Power Supply 300-1836 if ScApp <= 5.20.1.
   If ScApp >= 5.20.2, E6900 Power Supply 300-1595, 300-1836 or 300-1930 can be used.
   1950MHz requires E6900 Power Supply 300-1836.
   E6900-BASE2Z (announced August 2006) includes 300-1836.
   XE6900-USIV+KIT-Z includes six 300-1836 Power Supplies.
7. CPU/Memory Board slots are labeled SB0 through SB5.
8. Install Filler Board 540-4040 in all empty CPU/Memory Board slots.
9. Install Filler Panel 330-2821 when servicing a CPU/Memory Board slot.

Sun Fire 12K/15K/E20K/E25K Notes

1. CPU/Memory slots are labeled SB0 through SB17.


2. SMS Requirements:
   • 1050MHz or 1200MHz:
     SMS 1.4.1 with patches is required.
   • 1350MHz:
     SMS 1.4.1 with patches 117866-04 or higher, and 117371-06 or higher, are required.
       The minimum firmware for 1350MHz is 5.18.1 (SMS 1.4.1 117772-03).
   • 1500MHz:
     SMS 1.5 is required.
   • 1800MHz:
     SMS 1.6 is required.
   • 1950MHz:
     SMS 1.6 with patches 123300-05 or higher, and 124319-02 or higher, are required.


3. 1200MHz, 1350MHz, 1500MHz, 1800MHz & 1950MHz Uniboards will run at 1050MHz when installed in the 12K, 15K, E20K, and E25K, unless the carrier plate is upgraded, as described below.

   540-5940:
   • This Uniboard runs only at 1050MHz.

   All other 1200MHz, 1350MHz, 1500MHz, 1800MHz & 1950MHz Uniboards:
   • Sun Fire 12K/15K: Full 1200/1350/1500/1800MHz performance requires a carrier plate upgrade kit, either:
     C-F1XK-USIV-KIT (containing carrier plates 541-0119, 541-0120, and 541-0121) or
     C-F1XK-USIV-KIT-Z (containing carrier plates 541-1396, 541-1398, and 541-1399).
     • Without the carrier plate upgrade, the Uniboards will operate at 1050MHz.
   • Sun Fire E20K/E25K: The required carrier plates are shipped with E20K/E25K.


4. Expander Boards 501-5179-20, 501-6827, 501-6802, and 501-7361 include AXQ 6.3.
   Upgrade C-HIGHEND-UG included nine 501-6827 or 501-6802 Expander Boards.
   Upgrade C-HIGHEND-UG-Z includes nine 501-7361 Expander Boards with AXQ 6.3.


5. 1800MHz in the 15K and E25K requires A196 power supply 300-1705 or 300-1917.
   Power Supply Upgrade Kit C-HE-POWER-KIT-Z contains six 300-1917 power supplies.
6. 1950MHz requires Power Supply 300-1813 and Power Chassis 371-2540.
   E20K-BASE-3-Z and E25K-BASE-3-Z (both announced April 2007) include 300-1813 and 371-2540.
   C-HE-PWR2-KIT-Z includes six 300-1813 Power Supplies and two 371-2540 Chassis.

References

1. Sun Fire 4800 Server Documentation.
2. Sun Fire 6800 Server Documentation.
3. Sun Fire E4900 Server Documentation.
4. Sun Fire E6900 Server Documentation.
5. Sun Fire 12K Server Documentation.
6. Sun Fire 15K Server Documentation.
7. Sun Fire E20K Server Documentation.
8. Sun Fire E25K Server Documentation.
