Power Centerplane

<a href="../../Systems/SupportHeaders/BKPL_SunFire_12K_15K_Power_Cntrpln.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-5183 501-7350

March 2001 April 2006

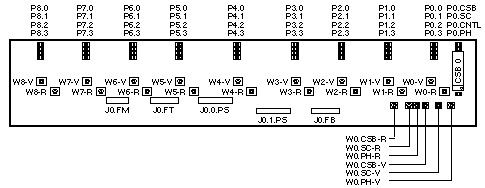

Primary Side - Chassis Front

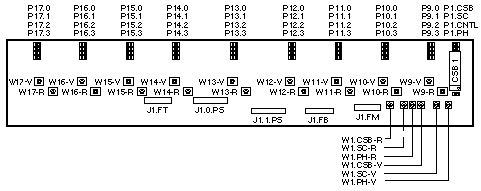

Secondary Side - Chassis Rear

Notes

Disconnect AC Input power before serviceing the Power Centerplane.
Refer to the Service Manual for detailed removal and replacement procedures.

References

Sun Fire 15K/12K Server Documentation.
Sun Fire E25K/E20K Server Documentation.
