36-72GB 4 mm DAT72 Tape Drive

Other supported platforms:
Disk Arrays StorEdge D240

Options 5882 / TAPDAT72-D / TAPDAT72-D2 / TAPDAT72-R
Options TAPDAT72-3F-2 / TAPDAT72-3F68
Options TAPDAT72-5F-2 / TAPDAT72-5F68

380-0993 380-1004 380-1005
Desktop Assembly
TAPDAT72-D		 5.25" Drive
Option 5882
TAPDAT72-5F68
TAPDAT72-R		 3.5" Drive
TAPDAT72-3F68
380-1323 380-1324 380-1328
Desktop Assembly
TAPDAT72-D2		 5.25" Drive
TAPDAT72-5F-2		 3.5" Drive
TAPDAT72-3F-2

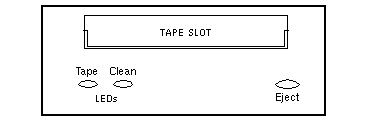

Front View

Additional Information & Views

LED Information
Activity (Tape) LED - Flashing Green = activity
Activity (Tape) LED - Steady Green = cartridge loaded
Attention (Clean) LED - Flashing Amber = cartridge near end of life
Attention (Clean) LED - Flashing Amber = heads need cleaning
Attention (Clean) LED - Steady Amber = hard fault

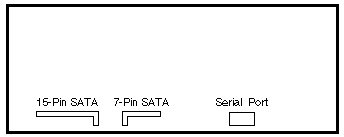

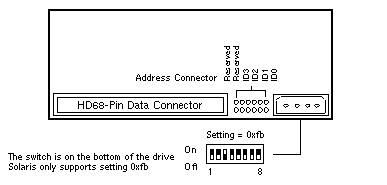

Rear View

Notes

  1. The minimum operating system is Solaris 8.
  2. Solaris 8 requires st Patch 108725-14.
    Solaris 9 requires st Patch 113277-13.
  3. The Sun Blade 2500 requires a PCI Host Bus Adapter for internal support.
  4. The Sun Blade 2500 PCI Host Bus Adapter to DAT72 cable is not available from Sun.
  5. The Blank Data Tape part number is 370-6908. Order 10-Pack SG-XMEDDAT72-10.
  6. The Cleaning Tape part number is 370-1613. Order 10-Pack SG-XMED4MMCL-10.

References

  1. Documentation CD-ROM, 791-4770, HP C7438-11003.
  2. Errata Sheet for the StorEdge DAT72 Tape Drive, HP C7438-90901.
  3. DAT72 Tape Drive Documentation website.


36-72GB 4 mm DAT72 Tape Drive

Options SELX9DT1Z / SEMX9DT1Z

390-0319 541-0846 541-3852
Quantum TE6162-612
Quantum TE6162-613		 M4000/M5000 FRU
Drive 390-0319
Tool 263-3537
SELX9DT1Z		 M4000/M5000 FRU
Drive 390-0319
Tool 263-3537
SELX9DT1Z

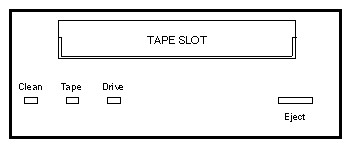

Front View

Rear View

Notes

  1. Removal tool 263-3537 was added to 541-0846 in February 2008. (WO_38467)
  2. The 541-0846 soft switch is set to identify the drive manufacturer as Seagate.

References

  1. Quantum DDS4/DAT72 User Guide, 81-81396-01.
