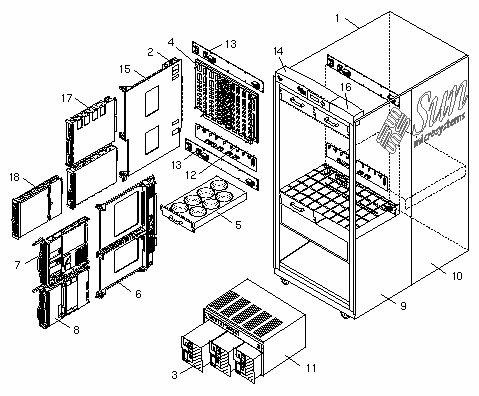

Sun Fire E20K/E25K (post July 2006) Base Cabinet
9-Slot/18-Slot Fireplane Logic Enclosure
| E20K-BASE-2-Z |
E25K-BASE-2-Z |
Go to
E20K-BASE-3-Z
E25K-BASE-3-Z
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
NS = Not Shown |
| CODE |
PART # |
DESCRIPTION |
1
1
2
-
-
NS
NS
1
3
4
5 |
599-3114
599-3113
501-7540
501-7361 [F]
370-4012
541-1410 [F]
541-1412 [F]
540-6751
300-1917 [F]
501-7341 [F]
540-6795 [F] |
Sun Fire E20K Assy, E20K-BASE-2-Z (see 602-3291)
Sun Fire E25K Assy, E25K-BASE-2-Z (see 602-3292)
 System Expander Assembly
 System Expander Board FRU
 System Expander DIMM
Front Door
Rear Door
Power Cabinet Assembly
Dual AC Input 48 Volt Output Power Supply
Logic Centerplane
Fan Tray |
1
9
10
11
11
12
13
13
14
16
15
15
15
15
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS |
541-1392
341-2784 [F]
341-2785 [F]
371-1343 [F]
371-2539 [F]
501-7350 [F]
501-7346 [F]
501-7686 [F]
541-1402 [F]
541-1404 [F]
540-6790 [F]
541-1396 [F]
541-1398
541-1399 [F]
340-5614
340-5615
341-2800
341-2801
340-5901
341-2814
341-2777
341-2778
341-2812
341-2813
370-4364 [F]
541-1400 [F]
541-1698 [F]
541-1699 [F] |
Processor Cabinet
Left Logo Side Panel
Right Logo Side Panel
Power Supply Chassis
Power Supply Chassis **
Power Centerplane
Fan Backplane *
Fan Backplane
Frame Manager
Frame Manager Extension, 250 mm
Carrier, System Controller/Centerplane Support
Carrier, Slots 1 2 3 6 7 8 10 11 12 15 16 17
Carrier, Slots 0 9
Carrier, Slots 4 5 13 14
Top Honeycomb Filter
Front Honeycomb Filter
Left Door Trim Panel
Right Door Trim Panel
DC Cover
Top Rear Trim Panel
Wireway Cover
Air Filter Cover
Lower Trim Panel
Top Front Trim Panel
Air Filter
Kick Plate
Rear Plenum Panel
Front Plenum Panel
|
* This part shipped with a waiver for the use of hexavalent chromium.
** Replaced 371-1343 as primary component in December 2006.
(WO_34766)
|
6
-
- |
501-7535
501-7551 [F]
501-7351 [F] |
Centerplane Support Board Assembly
Centerplane Support Board FRU
(501-7535-01)
Centerplane Support Board FRU
(501-7535-02) |
7
-
-
-
-
-
-
-
-
- |
501-7493
501-7426 [F]
501-7428 [F]
375-3391 [F]
501-7239 [F]
500-7239
500-7347
500-7348
530-2799
530-3663 |
System Control Board Assembly
1GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
512MB Memory Module, Single Wide
System Control Board FRU
System Control Motherboard
cPCI Riser Board
Power Supply Board
Ethernet Cable
LED Cable
|
7
-
-
-
-
-
-
-
-
- |
501-7745
501-7426 [F]
501-7428 [F]
375-3391 [F]
501-7736 [F]
500-7736
500-7347
500-7737
530-2799
530-3663 |
System Control Board Assembly
1GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
512MB Memory Module, Single Wide
System Control Board FRU
System Control Motherboard
cPCI Riser Board
Power Supply Board
Ethernet Cable
LED Cable
|
8
-
-
-
-
-
-
-
-
-
-
- |
540-6752
501-7355 [F]
330-4277
371-1354
390-0287
380-1324 [C]
390-0252
390-0265
390-0275 [F]
530-3617 [F]
530-3045 [F]
530-3533 |
System Control Peripheral Assembly
System Control Peripheral Board FRU
ATAPI to SCSI Adapter Bracket
ATAPI to SCSI Adapter
10X ATAPI DVD-ROM
36-72GB 4 mm DAT 72 Tape Drive
73.4GB 10000 RPM Disk, Fujitsu MAW3073NC
73.4GB 10000 RPM Disk, Hitachi HUS103073A
73.4GB 10000 RPM Disk, Seagate ST373027LC
Internal Peripheral Power Cable
Internal SCSI DVD-ROM Cable
Internal ATAPI DVD-ROM Power Cable
|
17
18
-
-
-
18
-
-
-
18
-
-
-
18
-
-
- |
540-xxxx
501-7483
501-7394 [F]
501-7365 [F]
501-7364 [F]
501-7896
501-7394 [F]
501-7365 [F]
501-7364 [F]
501-7602
501-7357 [F]
501-7365 [F]
501-7364 [F]
501-7895
501-7357 [F]
501-7365 [F]
501-7364 [F] |
CPU/Memory UniBoard
hsPCI+ I/O Board Assembly, Option 4576A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
hsPCI+ I/O Board Assembly, Option 4576A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
hsPCI-X I/O Board Assembly, Option 4577A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
hsPCI-X I/O Board Assembly, Option 4577A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
|
| PART # |
DESCRIPTION |
250-1453
250-1639 [F]
250-1640 [F] |
9/16" × 1/2" Open End Wrench
Carrier Torque Tool, 18 in/lb
Screwdriver with 7 1/4" Shaft for Fan Backplane |
180-1943 [F]
180-1944
180-1954 [F]
180-1955
180-2058 [F]
180-2063 [F]
180-2059 [F]
180-2064 [F] |
Upper Power Cord, NEMA L6-30P to Han 6HsB
Upper Power Cord, Blue 32A IEC 309 to Han 6HsB
Lower Power Cord, NEMA L6-30P to Han 6HsB
Lower Power Cord, Blue 32A IEC 309 to Han 6HsB
Upper Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB
Upper Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB
Lower Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB
Lower Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB |
| 530-3618 [F] |
System Control Serial Cable, DIN-8 to DB-25 |
541-1417 [F]
541-1418 [F] |
Bottom Slot 0 Filler Panel, Option 4615A-Z
Top Slot 0 Filler Panel, Option 4610A-Z |
565-1879
530-3720 [F]
530-3721 [F]
530-3722 [F]
530-3723 [F]
530-3662
530-3670 [F]
530-3671 [F]
530-3672 [F]
530-3673 [F]
530-3661 [F]
530-3669 [F]
530-3674 [F]
530-3675 [F]
530-3676 [F]
530-3677 [F]
530-3678 [F]
530-3682 [F] |
Cable Kit
Fan Power Cable
48Vdc Power Cable
48Vdc Crossover Cable
EXP/CSB LED Cable
Cable Kit
Upper Front Fan I2C Cable
Lower Front Fan I2C Cable
Upper Rear Fan I2C Cable
Lower Rear Fan I2C Cable
Front Expander Power Cable
Rear Expander Power Cable
Front Control 0 Cable
Front Control 1 Cable
Rear Control 0 Cable
Rear Control 1 Cable
Internal Frame Manager Power Cable
External Frame Manager Power Cable |
541-1417 [F]
541-1418 [F] |
I/O Filler Assembly
CPU Filler Assembly |
System Codenames
| System |
Codename |
| Sun Fire E20K |
Amazon 20 |
| Sun Fire E25K |
Amazon 25 |
Sun Fire E20K/E25K (post July 2006) Base Cabinet
9-Slot/18-Slot Fireplane Logic Enclosure
| E20K-BASE-3-Z |
E25K-BASE-3-Z |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
NS = Not Shown |
| CODE |
PART # |
DESCRIPTION |
1
1
2
-
-
NS
NS
1
3
11
-
4
5 |
599-3269
599-3263
501-7540
501-7361 [F]
370-4012
541-1410 [F]
541-1412 [F]
540-7141
300-1813 [F]
371-2540 [F]
341-3304
501-7341 [F]
540-6795 [F] |
Sun Fire E20K Assy, E20K-BASE-3-Z (see 602-3817)
Sun Fire E25K Assy, E25K-BASE-3-Z (see 602-3751)
System Expander Assembly
System Expander Board FRU
System Expander DIMM
Front Door
Rear Door
Power Cabinet Assembly
Dual AC Input 52 Volt Output Power Supply *
A211 Power Supply Chassis *
A211 Keying Bracket
Logic Centerplane
Fan Tray |
* Power Supply 300-1813 and Chassis 371-2540 are 1.95GHz US IV+ requirements.
C-HE-PWR2-KIT-Z includes six 300-1813 Power Supplies and two 371-2540 Chassis.
|
1
9
10
12
13
14
16
15
15
15
15
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS |
541-2063
341-2784 [F]
341-2785 [F]
501-7350 [F]
501-7686 [F]
541-1402 [F]
541-1404 [F]
540-6790 [F]
541-1396 [F]
541-1398
541-1399 [F]
340-5614
340-5615
341-2800
341-2801
340-5901
341-2814
341-2777
341-2778
341-2812
341-2813
370-4364 [F]
541-1400 [F]
541-1698 [F]
541-1699 [F] |
Processor Cabinet
Left Logo Side Panel
Right Logo Side Panel
Power Centerplane
Fan Backplane
Frame Manager
Frame Manager Extension, 250 mm
Carrier, System Controller/Centerplane Support
Carrier, Slots 1 2 3 6 7 8 10 11 12 15 16 17
Carrier, Slots 0 9
Carrier, Slots 4 5 13 14
Top Honeycomb Filter
Front Honeycomb Filter
Left Door Trim Panel
Right Door Trim Panel
DC Cover
Top Rear Trim Panel
Wireway Cover
Air Filter Cover
Lower Trim Panel
Top Front Trim Panel
Air Filter
Kick Plate
Rear Plenum Panel
Front Plenum Panel
|
6
- |
501-7535
501-7351 [F] |
Centerplane Support Board Assembly
Centerplane Support Board FRU
(501-7535-02) |
7
-
-
-
-
-
-
-
-
- |
501-7745
501-7426 [F]
501-7428 [F]
375-3391 [F]
501-7736 [F]
500-7736
500-7347
500-7737
530-2799
530-3663 |
System Control Board Assembly
1GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
512MB Memory Module, Single Wide
System Control Board FRU
System Control Motherboard
cPCI Riser Board
Power Supply Board
Ethernet Cable
LED Cable
|
8
-
-
-
-
-
-
-
-
-
-
- |
540-6752
501-7355 [F]
330-4277
371-1354
390-0287
380-1324 [C]
390-0252
390-0265
390-0275 [F]
530-3617 [F]
530-3045 [F]
530-3533 |
System Control Peripheral Assembly
System Control Peripheral Board FRU
ATAPI to SCSI Adapter Bracket
ATAPI to SCSI Adapter
10X ATAPI DVD-ROM
36-72GB 4 mm DAT 72 Tape Drive
73.4GB 10000 RPM Disk, Fujitsu MAW3073NC
73.4GB 10000 RPM Disk, Hitachi HUS103073A
73.4GB 10000 RPM Disk, Seagate ST373027LC
Internal Peripheral Power Cable
Internal SCSI DVD-ROM Cable
Internal ATAPI DVD-ROM Power Cable
|
17
18
-
-
-
18
-
-
-
18
-
-
-
18
-
-
- |
540-xxxx
501-7483
501-7394 [F]
501-7365 [F]
501-7364 [F]
501-7896
501-7394 [F]
501-7365 [F]
501-7364 [F]
501-7602
501-7357 [F]
501-7365 [F]
501-7364 [F]
501-7895
501-7357 [F]
501-7365 [F]
501-7364 [F] |
CPU/Memory UniBoard
hsPCI+ I/O Board Assembly, Option 4576A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
hsPCI+ I/O Board Assembly, Option 4576A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
hsPCI-X I/O Board Assembly, Option 4577A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
hsPCI-X I/O Board Assembly, Option 4577A-Z
hsPCI+ I/O Board FRU
3.3Vdc hsPCI Cassette
5.0Vdc hsPCI Cassette
|
| PART # |
DESCRIPTION |
250-1453
250-1639 [F]
250-1640 [F] |
9/16" × 1/2" Open End Wrench
Carrier Torque Tool, 18 in/lb
Screwdriver with 7 1/4" Shaft for Fan Backplane |
180-1943 [F]
180-1944
180-1954 [F]
180-1955
180-2058 [F]
180-2063 [F]
180-2059 [F]
180-2064 [F] |
Upper Power Cord, NEMA L6-30P to Han 6HsB
Upper Power Cord, Blue 32A IEC 309 to Han 6HsB
Lower Power Cord, NEMA L6-30P to Han 6HsB
Lower Power Cord, Blue 32A IEC 309 to Han 6HsB
Upper Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB
Upper Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB
Lower Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB
Lower Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB |
| 530-3618 [F] |
System Control Serial Cable, DIN-8 to DB-25 |
541-1417 [F]
541-1418 [F] |
Bottom Slot 0 Filler Panel, Option 4615A-Z
Top Slot 0 Filler Panel, Option 4610A-Z |
565-1879
530-3720 [F]
530-3721 [F]
530-3722 [F]
530-3723 [F]
530-3662
530-3670 [F]
530-3671 [F]
530-3672 [F]
530-3673 [F]
530-3661 [F]
530-3669 [F]
530-3674 [F]
530-3675 [F]
530-3676 [F]
530-3677 [F]
530-3678 [F]
530-3682 [F] |
Cable Kit
Fan Power Cable
48Vdc Power Cable
48Vdc Crossover Cable
EXP/CSB LED Cable
Cable Kit
Upper Front Fan I2C Cable
Lower Front Fan I2C Cable
Upper Rear Fan I2C Cable
Lower Rear Fan I2C Cable
Front Expander Power Cable
Rear Expander Power Cable
Front Control 0 Cable
Front Control 1 Cable
Rear Control 0 Cable
Rear Control 1 Cable
Internal Frame Manager Power Cable
External Frame Manager Power Cable |
541-1417 [F]
541-1418 [F] |
I/O Filler Assembly
CPU Filler Assembly |
System Codenames
| System |
Codename |
| Sun Fire E20K |
Amazon 20 |
| Sun Fire E25K |
Amazon 25 |
|
