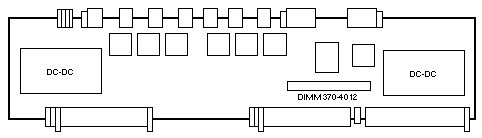

System Expander Board

Notes

1. 501-5179-17 was converted to 501-6376-01 in May 2002. (WO_23941)
2. 501-5179-09/10/12/15 was converted to 501-6376-01 in June 2002. (WO_24462)
3. 501-5179-09/10/12/15 was converted to 501-6376-01 in August 2002. (WO_24803)
4. 501-5179-09/10/12/15 was converted to 501-6376-01 in October 2002. (WO_25139)
5. 501-5179-19 was reworked to -20 with AXQ6.3 in December 2003. (WO_27638)
6. 501-5179-20 was relabeled 501-6827-01 in February 2004. (WO_28379)
7. Upgrade C-HIGHEND-UG includes Expander Board 501-6827 with AXQ 6.3.

FRU Notes

1. F501-5179-20 was inactivated and replaced with F501-6827-01 in February 2004.
2. F501-5179-19 was reworked to F501-5179-21 in April 2004. (WO_28883)
3. F501-5179-21 does not include rework to AXQ6.3.

Notes for 501-6802

1. The 501-6802 was added to systems and to Upgrade C-HIGHEND-UG in May 2006. (WO_33027)
2. There is no FRU associated with 501-6802 or the next higher assembly 501-6884.

References

1. Sun Fire 15K/12K Server Documentation.
2. Sun Fire E25K/E20K Server Documentation.
