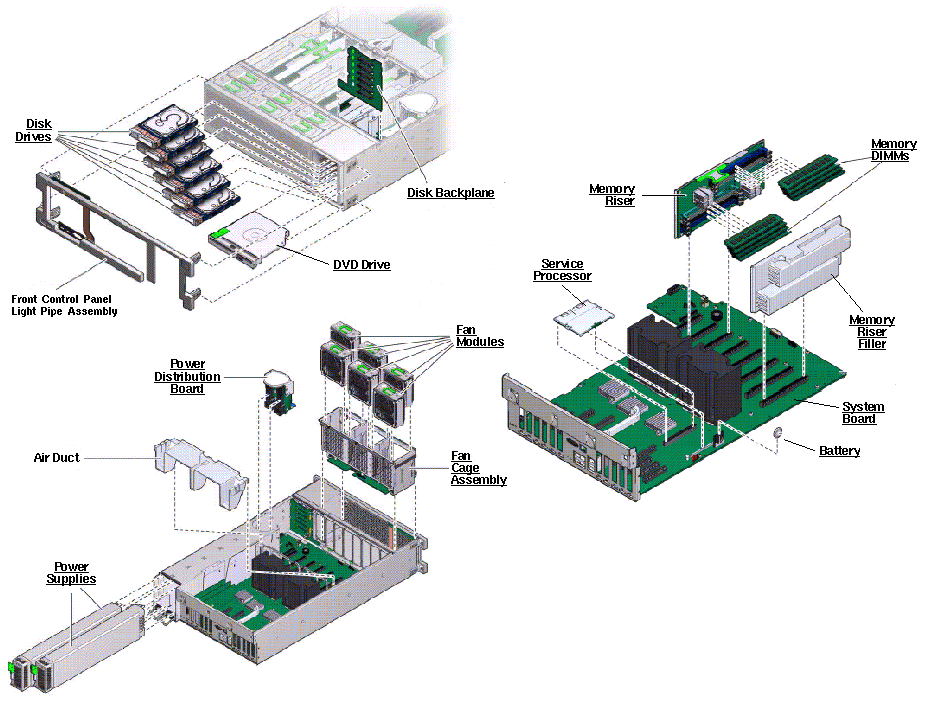

SPARC T4-2 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
Cables
Option #
Manufacturing
Description
Previous
7102869 Buy
7039990 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 10M
n/a
7102870 Buy
7039999 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 20M
n/a
7102871 Buy
7040001 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 50M
n/a
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-2M Buy
530-4567 [C]
10Gbps QSFP to QSFP Cable, 2m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2125A-1M-N Buy
530-4450 [C]
QSFP to 4× SFP+ Splitter Cable, 1m
n/a
X2125A-3M-N Buy
530-4451 [C]
QSFP to 4× SFP+ Splitter Cable, 3m
n/a
X2125A-5M-N Buy
530-4452 [C]
QSFP to 4× SFP+ Splitter Cable, 5m
n/a
X2127A-10M Buy
530-4480 [C]
MPO to 4x LC Duplex Splitter Cable, 10m
n/a
X2127A-20M Buy
530-4481 [C]
MPO to 4x LC Duplex Splitter Cable, 20m
n/a
X2127A-50M Buy
530-4482 [C]
MPO to 4x LC Duplex Splitter Cable, 50m
n/a
X2130A-1M-N Buy
530-4441 [C]
10Gbps SFP+ TwinX Cable, 1m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
X2130A-10M-N
[S]
530-4454 [C]
10Gbps SFP+ TwinX Cable, 10m
n/a
n/a
560-2963 [C]
Cable Kit
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm n/a
Fan Board to System Board Signal Cable n/a
Fan Board to System Board Power Cable n/a
System Board to PDB Cable n/a
System Board to Disk Backplane Signal Cable n/a
System Board to Disk Backplane Power Cable n/a
n/a
7070388 [C]
Cable Kit
560-2963 [C]
SAS Cable, SFF-8087 to SFF-8087, 215mm (x2)
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm n/a
Fan Board to System Board Signal Cable n/a
Fan Board to System Board Power Cable n/a
System Board to PDB Cable n/a
System Board to Disk Backplane Signal Cable n/a
System Board to Disk Backplane Power Cable n/a
Chassis
Option #
Manufacturing
Description
Previous
n/a
7051575
Chassis Subassembly
n/a
n/a
Power Supply Chassis Cable Cover n/a
n/a
n/a
Power Distribution Board Cover n/a
AC Input Line Filter with Cable n/a
n/a
n/a
n/a
7067321
Chassis Subassembly
7051575
n/a
n/a
Power Supply Chassis Cable Cover n/a
n/a
Power Distribution Board Cover n/a
AC Input Line Filter with Cable n/a
n/a
n/a
Communication
Option #
Manufacturing
Description
Previous
7104074 Buy
7092757
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
7046442
[C]
X4242A
[S]
7092767
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
375-3696
[C]
X6000A-N
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
n/a
375-3696
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a
n/a
7046442
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a
Disks
Option #
Manufacturing
Description
Previous
7101423
[S]
7017183 [C]
100GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk) n/a
n/a
7101469
[S]
7017184 [C]
300GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk) n/a
n/a
7105214
[S]
7064135 [C]
600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
7107550
[S]
7077233 [C]
400GB Solid State SATA Drive Assembly
n/a
400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G] n/a
n/a
SE6X3G12Z
[S]
542-0388 [C] Buy
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
n/a
SE6X3K11Z
[S]
542-0287 [C] Buy
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7048474
[C]
+
7100481 Buy
7070202
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7014747
[C]
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
7014776
[C]
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
375-3617
[C]
X2124A-N Buy
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
7105381
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
7105382
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
SE4X5XC1Z
[S]
511-1525
[C]
10 Gb Ethernet Network Module
n/a
SG-XPCIEFCOE2-Q-SR 3
[S]
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
SG-XPCIEFCOE2-Q-TA 4
[S]
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
X4447A-Z-N
[S]
7055021
[C]
Quad Port GbE PCI Express, UTP
511-1422
[C]
n/a
X7281A-2-N
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3617
[C]
Dual 10-Gigabit Ethernet SFP+ LP
n/a
n/a
375-3681
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
511-1422
[C]
Quad Port GbE PCI Express, UTP
n/a
n/a
n/a
7014741
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
n/a
7014747
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
n/a
7014776
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
n/a
7048474
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7014741
[C]
3 Can be installed in slot 4 or 5, not both4 Can be installed in slot 4 or 5, not both
Fan
Option #
Manufacturing
Description
Previous
n/a
541-3535
[F]
Fan Cage Assembly
n/a
Fan Board with USB and VGA n/a
530-4349 [F] Buy n/a
n/a
541-3539 [C]
92mm Fan Module
n/a
n/a
7051522
[F]
Fan Cage Assembly
541-3535
[F]
530-4349 [F] Buy n/a
Fan Board with USB and VGA 511-1243
n/a
7057262
[F]
Fan Cage Assembly
7051522
[F]
+
530-4349 [F] Buy n/a
Fan Board with USB and VGA n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
7101674 Buy
7023303
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
n/a
7101676 Buy
7023325
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101678 Buy
7023315
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101684 Buy
7023036
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
n/a
7101686 Buy
7023059
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7101688
[S]
7023057
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7105392
[S]
8Gigabit/Sec PCI Express Dual FC Host Adapter for EU Countries
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-EM8-N 5
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF8-N 6
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
5 Can be installed in slot 4 or 5, not both6 Can be installed in slot 4 or 5, not both
Memory
Option #
Manufacturing
Description
Previous
7104201 Buy
32GB Memory Expansion (1 × 32GB) Option
7042211
[C]
32GB DDR3L-1066/DDR3L-1333 DIMM
n/a
7101696
[S]
8GB Memory Expansion (2 × 4GB) Option
7014642
[C]
4GB DDR3L-1333/PC3L-10600 DIMM
n/a
7101697
[S]
16GB Memory Expansion (2 × 8GB) Option
7014640
[C]
8GB DDR3L-1333/PC3L-10600 DIMM
n/a
7101698
[S]
32GB Memory Expansion (2 × 16GB) Option
7020577
[C]
16GB DDR3L-1066/PC3L-10600 DIMM
n/a
7104197
[S]
8GB Memory Expansion (1 × 8GB) Option
7042208
[C]
8GB DDR3L-1600/PC3L-12800 DIMM
n/a
7104199
[S]
16GB Memory Expansion (1 × 16GB) Option
7042210
[C]
16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz)
n/a
n/a
330-5269
Memory Riser Filler
n/a
n/a
541-4438 [C]
Memory Riser Assembly
n/a
n/a
n/a
n/a
7051516 [C]
Memory Riser Assembly
541-4438 [C]
Memory Riser Tray Assembly n/a
n/a
511-1672
NOTE: PN#7042210 16GB DDR3-1600/PC3L-12800 and PN#7042211 32GB DDR3L-1333/PC3L-10600 both require firmware 8.2.1.b or later. See article 1494121.1 for more details.
Power
Option #
Manufacturing
Description
Previous
n/a
300-2344
[C]
Type A239C 1030/2060 Watt AC Input Power Supply
n/a
n/a
7022322
[F]
Power Distribution Board / Power Supply Backplane
n/a
n/a
n/a
n/a
7048278
[C]
Type A239C 1030/2060 Watt AC Input Power Supply
300-2344
[C]
n/a
7060596
[C]
Type A239E 2000 Watt AC Input Power Supply
7048278
[C]
+
n/a
7081064
[C]
Type A239A 2000 Watt AC Input Power Supply
7060596
[C]
+
NOTE: Mixing of supported power supply types is allowed.
Rack
Option #
Manufacturing
Description
Previous
n/a
371-4791 [C] Buy
Tool-less Slide Rail Rack Mount Kit
n/a
n/a
371-4812 [C] Buy
Cable Management Arm
n/a
Removable Media
Option #
Manufacturing
Description
Previous
n/a
541-4272
[C]
Slot-Load DVD Assembly
n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
7013722
[C]
Slot-Load SATA DVD-Writer/CD-Writer
n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer
390-0443
n/a
7017475
[C]
Slot-Load SATA DVD-Writer/CD-Writer
n/a
Slot-Load SATA DVD-Writer/CD-Writer n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
7070422
[C]
Slot-Load SATA DVD-Writer/CD-Writer
n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
7082409
[C]
Tray-Load SATA DVD-Writer/CD-Writer
n/a
8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer n/a
n/a
n/a
n/a
n/a
7300356
[C]
Tray-Load SATA DVD-Writer/CD-Writer
7082409
[C]
8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer n/a
n/a
n/a
n/a
7302240
[C]
Tray-Load SATA DVD-Writer/CD-Writer
n/a
8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5) n/a
n/a
n/a
n/a
n/a
7314403
[C]
Tray-Load DVD Assembly
n/a
n/a
8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6) n/a
n/a
n/a
8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7) n/a
SCSI
Option #
Manufacturing
Description
Previous
7104482
[S]
7070787
[C]
Flash Accelerator F40 400GB Solid State Memory
7026993
[C]
7105384
[S]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter for EU Countries
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
7105387
[S]
8-Port 6Gbps SAS-2 PCI Express HBA
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
7107092
[S]
7069200
[C]
800GB PCI Express Flash Accelerator F80 SAS HBA
n/a
SGX-SAS6-EXT-Z
[S]
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-INT-Z 8
[S]
7047852
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3640
[C]
SGX-SAS6-R-INT-Z
[S]
7047503 10
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
375-3701 9
[C]
7050794
[C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
371-4982 [C]
SGXPCIE2SCSIU320-N
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
n/a
371-4982 [C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
n/a
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3640
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3641
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3701 7
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
n/a
n/a
7026993
[C]
Flash Accelerator F40 400GB Solid State Memory
n/a
7 Install 375-3701 or 7047503 in Slot 0 only. Installation of 375-3701 or 7047503 disables access to the front-panel DVD.8 Must be installed in slot 09 Install 375-3701 or 7047503 in Slot 0 only. Installation of 375-3701 or 7047503 disables access to the front-panel DVD.10 Install 375-3701 or 7047503 in Slot 0 only. Installation of 375-3701 or 7047503 disables access to the front-panel DVD.
System Board
Option #
Manufacturing
Description
Previous
n/a
7096274 11
[F]
8-Core 2.85GHz System Board Assembly (reworked 7063413)
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7097399
[F]
8-Core 2.85GHz System Board Assembly (reworked 7049060)
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7098680 [F]
8-Core 2.85GHz System Board Assembly (reworked 7016186)
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7016186
[F]
[S]
8-Core 2.85GHz System Board Assembly
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7049060
[F]
[S]
8-Core 2.85GHz System Board Assembly
7016186
[F]
[S]
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7063413 12
[F]
[S]
8-Core 2.85GHz System Board Assembly
7049060
[F]
[S]
+
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
11 7096274 and 7063413 require System Firmware 8.4.1.a or newer to resolve LTC2970 bug issues.12 7096274 and 7063413 require System Firmware 8.4.1.a or newer to resolve LTC2970 bug issues.
System Service Processor
Option #
Manufacturing
Description
Previous
n/a
542-0442
[C]
Service Processor Assembly
n/a
n/a
AST2200 Service Processor n/a
n/a
7054434
[C]
Service Processor Assembly
542-0442
[C]
n/a
AST2200 Service Processor n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
-
330-5297
CPU Air Duct
-
341-2610
PCI Filler Panel
-
350-1406
Air Divider with Fault Remind Button
-
530-3510
Interlock Switch Cable
-
530-3895
4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm
-
530-4287
Fan Board to System Board Signal Cable
-
530-4288
Fan Board to System Board Power Cable
-
530-4289
System Board to PDB Cable
-
530-4290
System Board to Disk Backplane Signal Cable
-
530-4291
System Board to Disk Backplane Power Cable
-
530-4348
System Board to Rear I/O Board Signal Cable
-
541-2629
2.5" Disk Drive Filler Panel
NS
350-1288
DIMM Slot Filler
NS
7022320
Chassis Subassembly
-
Power Supply Chassis Cable Cover
-
-
-
Power Distribution Board Cover
-
AC Input Line Filter with Cable
NS
NS
