7016180	7016186		7016180	7098680
System Board w/o UltraSPARC T4	T4-2 System Board Assy 8-Core 2.85GHz Rear I/O Board 511-1245		System Board w/o UltraSPARC T4	T4-2 System Board Assy 8-Core 2.85GHz Reworked 7016186 Rear I/O Board 511-1245
7049061	7049060		7049061	7097399
System Board w/o UltraSPARC T4	T4-2 System Board Assy 8-Core 2.85GHz Rear I/O Board 7051520		System Board w/o UltraSPARC T4	T4-2 System Board Assy 8-Core 2.85GHz Reworked 7049060 Rear I/O Board 7051520
7063412	7063413		7063412	7096274
System Board w/o UltraSPARC T4	T4-2A System Board Assy 8-Core 2.85GHz Rear I/O Board 7051520		System Board w/o UltraSPARC T4	T4-2A System Board Assy 8-Core 2.85GHz Reworked 7063413 Rear I/O Board 7051520

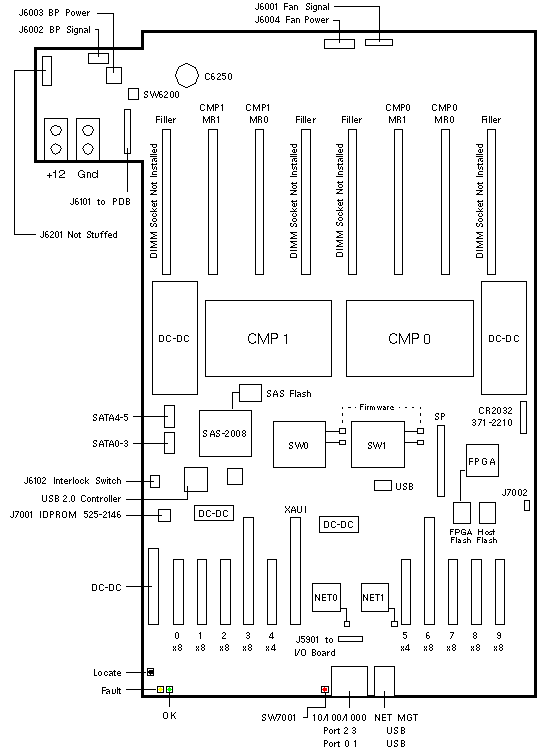

Jumpers and Switches

LOCATION	PINS	SETTING	DESCRIPTION
J7002	1-2	In	Default Setting
J7002	2-3	In	Unknown
SW4601	n/a	n/a	Locate Button
SW6200	n/a	n/a	Memory Riser Fault Remind Button

SPARC T4-2 Codename: Solana YF

Notes

1. The minimum operating system is Solaris 10 09/10 with the complete Solaris 10 08/11 bundle.
2. The D220 is located at U8001 and U8701.
3. D220 rework was done by E0020803, E0021102, E0021678, and M0009993.
4. Slots 0, 1, 2, 7, 8, and 9 PCI Express Channels are electrically eight lanes wide.
5. Slots 3 and 6 are sixteen lane connectors and are electrically eight lanes wide.
6. Slots 4 and 5 are eight lane connectors and are electrically four lanes wide.

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the third four DIMMs in the black slots.
4. Install the last four DIMMs in the green slots.
5. All DIMMs installed in the server must have identical architecture, including identical capacity and rank classification. >See the SPARC T4-2 Server Documentation for additional DIMM population rules.
6. Install Dimm Filler 350-1288 in all unused DIMM slots.
7. Install Memory Riser Filler 330-5269 in all Filler Slots.

SGX-SAS6-R-INT-Z RAID HBA Notes

1. Install 375-3701 in Slot 0 only.
2. Installation of 375-3701 disables access to the front-panel DVD.

References

1. SPARC T4-2 Server Documentation.
