Options 7101696 / 7101697 / 7101698
Options 7104197 / 7104199 / 7104201

7014642	7014640	7020577

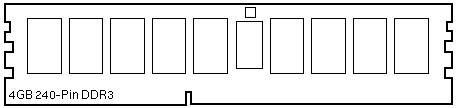

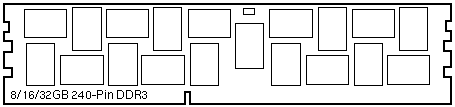

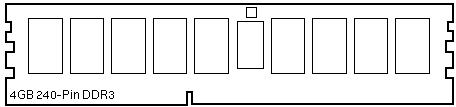

DDR3L-1333/PC3L-10600 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 4GB Registered DIMM 8GB Option 7101696	DDR3L-1333/PC3L-10600 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 8GB Registered DIMM 16GB Option 7101697	DDR3L-1066/PC3L-8500 4-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 32GB Option 7101698

7042208	7042210	7042211

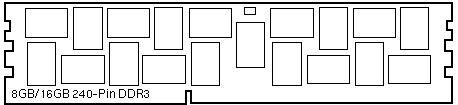

DDR3L-1600/PC3L-12800 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 8GB Registered DIMM 8GB Option 7104197	DDR3L-1600/PC3L-12800 2-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 16GB Option 7104199	DDR3L-1066/PC3L-8500 DDR3L-1333/PC3L-10600 4-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 32GB Registered DIMM 32GB Option 7104201

SPARC T4-1 Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.
4. Install Memory Filler 350-1288 in all unused slots.
5. The 16GB 7042210 and 32GB 7042211 require firmware 8.2.1.b.
   See article 1494121.1 for more details.

SPARC T4-1B Notes

1. Install the first four DIMMs in all Channel 1 DIMM 0 slots.
2. Install the next four DIMMs all Channel 0 DIMM 0 slots.
3. Install the next eight DIMMs in the remaining slots.
4. Mixing DIMM sizes is not supported.

SPARC T4-2 Notes

1. Install D0/D4 (blue), then D2/D6 (white), then D1/D5 (black), and then D3/D7 (green), only 4 and 8 DIMM configurations are supported.
2. Install DIMM Filler 350-1288 in all unused SPARC T3-2 slots.
3. Install Memory Riser Filler 330-5269 in all unused Riser slots.
4. The 16GB 7042210 and 32GB 7042211 require firmware 8.2.1.b.
   See article 1494121.1 for more details.

SPARC T4-4 Notes

1. Install the first sixteen DIMMs in the blue and white CMP0 and CMP1 DIMM0 slots.
2. Install the second eight DIMMs in the black CMP1 DIMM1 slots.
3. Install the last eight DIMMs in the black CMP0 DIMM1 slots.
4. Install Dimm Filler 350-1288 in all unused DIMM slots.
5. The 16GB 7042210 and 32GB 7042211 require firmware 8.2.1.b.
   See article 1494121.1 for more details.

Netra SPARC T4-1 Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.
4. Mixing DIMM sizes is not supported.
5. Mixing 16GB 7041272 and 7051724 is not supported.
6. The 16GB 7051724 requires firmware 8.2.1.b.

Netra SPARC T4-2 Notes

1. Install D0/D4 (blue), then D2/D6 (white) for a four DIMM configuration.
2. Install all DIMMS for an eight DIMM configuration.
3. Mixing DIMM sizes is not supported.
4. Mixing 16GB 7041272 and 7051724 is not supported.
5. The 16GB 7051724 requires firmware 8.2.1.b.

SPARC T5-1B and Netra SPARC T5-1B Notes

1. All sixteen slots must be filled with a DIMM.
2. Mixing DIMM sizes and ranks is not supported.

SPARC T5-2 Notes

1. Each slot on a memory riser must be filled with a DIMM.
2. All memory risers must contain the same type of DIMM.
3. Refer to the SPARC T5-2 Service Manual for Memory Riser DIMM mapping.

SPARC T5-4 and SPARC T5-8 Notes

1. Install the first sixteen DIMMs in all Channel 0 DIMM slots.

References

1. SPARC T4-1 Server Documentation.
2. SPARC T4-2 Server Documentation.
3. SPARC T4-4 Server Documentation.
4. SPARC T4-1B Server Module Documentation.
5. SPARC T5-1B Server Module Documentation.
6. SPARC T5-2 Server Documentation.
7. SPARC T5-4 Server Documentation.
8. SPARC T5-8 Server Documentation.
9. Netra SPARC T4-1 Server Documentation.
10. Netra SPARC T4-1B Server Documentation.
11. Netra SPARC T4-2 Server Documentation.

Options 7101696 / 7102494 / 7102495 / 7104931

7014642	7041271	7041272	7051724
DDR3L-1333/PC3L-10600 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 4GB Registered DIMM 8GB Option 7101696	DDR3L-1333/PC3L-10600 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 8GB Registered DIMM 16GB Option 7102494	DDR3L-1066/PC3L-8500 4-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 32GB Option 7102495	DDR3L-1600/PC3L-12800 2-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 16GB Option 7104931

Netra SPARC T4-1 Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.
4. Mixing DIMM sizes is not supported.
   Mixing 16GB 7041272 and 7051724 is not supported.
5. 16GB DIMM 7051724 requires firmware 8.2.1.b.

Netra SPARC T4-1B Notes

1. Install the first four DIMMs in all Channel 1 DIMM 0 slots.
2. Install the next four DIMMs all Channel 0 DIMM 0 slots.
3. Install the next eight DIMMs in the remaining slots.
4. Mixing DIMM sizes is not supported.
   Mixing 16GB 7041272 and 7051724 is not supported.
5. 16GB DIMM 7051724 requires firmware 8.2.1.b.

Netra SPARC T4-2 Notes

1. Install D0/D4 (blue) and D2/D6 (white) for a four DIMM configuration.
2. Install all DIMMS for an eight DIMM configuration.
3. Mixing DIMM sizes is not supported.
   Mixing 16GB 7041272 and 7051724 is not supported.
4. 16GB DIMM 7051724 requires firmware 8.2.1.b.

SPARC T5-1B and Netra SPARC T5-1B Notes

1. Mixing DIMM sizes is not supported.

References

1. Netra SPARC T4-1 Server Service Manual.
2. Netra SPARC T4-1B Server Service Manual.
3. Netra SPARC T4-2 Server Service Manual.
