Sun Enterprise 10000 - Full Components List

Backplane/Centerplane CPU Module Communication Disks Ethernet Fibre Channel I/O Memory Power SCSI Switch/Hub System Board System Service Processor Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-4346 [F]	Centerplane Support Board	n/a
n/a	501-4348 [F]	Centerplane	n/a
n/a	565-1695 [F]	Centerplane Power Module Repair Kit	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
2580A 1 [S]	501-6619 [F]	400MHz UltraSPARC II (8MB Cache Blaze) IBM Sombra Mirrored Data SRAM IBM Mirrored Tag SRAM	n/a
	501-6624 [F]	400MHz UltraSPARC II Module (8MB Cache Blaze) Sony Espejo Mirrored Data SRAM Sony Mirrored Tag SRAM	501-6009 [F]  + 501-5815 [F] 501-5814 [F]
2580A 2 [S]	501-5235 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black)	n/a
	501-5661 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black)	n/a
	501-5762 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black)	n/a
	501-5814 [F]	400MHz UltraSPARC II Module (8MB Cache Blaze) IBM Sombra Mirrored Data SRAM IBM Mirrored Tag SRAM	n/a
	501-5815 [F]	400MHz UltraSPARC II Module (8MB Cache Blaze) Sony Espejo Mirrored Data SRAM Sony Mirrored Tag SRAM	n/a
	501-5838 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black) IBM Sombra Mirrored Data SRAM	n/a
	501-6008 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black) IBM Sombra Mirrored Data SRAM	n/a
	501-6009 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black) IBM Sombra Mirrored Data SRAM IBM Mirrored Tag SRAM	n/a
2590A [S]	501-6620 [F]	464MHz UltraSPARC II Module (8MB Cache Blaze) IBM Sombra Mirrored Data SRAM IBM Mirrored Tag SRAM	501-5816 [F] [S]
	501-6623 3 [F]	464MHz UltraSPARC II Module (8MB Cache Blaze) Sony Espejo Mirrored SRAM Sony Mirrored Tag SRAM	501-5798 [F] [S]
2869A [S]	501-5798 [F] [S]	466MHz UltraSPARC II (8MB Cache Blaze) Sony Espejo Mirrored SRAM Sony Mirrored Tag SRAM	n/a
	501-5816 [F] [S]	464MHz UltraSPARC II Module (8MB Cache Blaze) IBM Sombra Mirrored SRAM IBM Mirrored Tag SRAM	n/a
X2530A [S]	501-4178 [F]	250MHz UltraSPARC II	n/a
X2550A [S]	501-4836 [F]	250MHz UltraSPARC II Module (4MB Cache Blackbird) SRAM 100-5528	n/a
X2560A [S]	501-4363 [F]	333MHz UltraSPARC II	n/a
X2570A [S]	501-4995 [F]	400MHz UltraSPARC II (4MB Cache Sapphire-Black)	n/a
	501-5425 [F]	400MHz UltraSPARC II (4MB Cache Sapphire-Black)	n/a
	501-5585	400MHz UltraSPARC II Module (4MB Cache Sapphire-Black)	n/a
X2580A [S]	501-5235 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black)	n/a
	501-5661 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black)	n/a
	501-5762 [F]	400MHz UltraSPARC II Module (8MB Cache Sapphire-Black)	n/a

1 after April 2001 2 before April 2001 3 Replaced 501-5798 in February 2003

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1012A [S]	501-2603 [F]	SunLink ISDN	n/a
X1070A [S]	370-3878 [F]	HIPPI/P 1.0	n/a
X1071A [S]	370-3878 [F]	HIPPI/P 1.1	n/a
X1073A [S]	370-2868 [F]	SBus Cluster Interconnect Card (SCI)	n/a
X1080A [S]	370-4273 [F]	Enterprise System Interface (ESI/P)	n/a
X1142A [S]	370-3142 [F]	FDDI/S Single-Attach SBus (SAS) 5.0/6.0	n/a
X1143A [S]	370-3143 [F]	FDDI/S Dual-Attach SBus (DAS) 5.0/6.0	n/a
X1144A [S]	501-1932 [F]	Token Ring Interface/SBus (TRI/S) 4.0	n/a
X1145A [S]	501-1725 [F]	High Speed Serial Interface/SBus (HSI/S) 3.0	n/a
X1146A [S]	501-1931 [F]	SBus Serial Parallel Controller (SPC/S) 3.0	n/a
X1147A [S]	501-2794 [F]	SunATM-155/MFiber 4.0	n/a
X1148A [S]	501-2795 [F]	SunATM-155/UTP 4.0	n/a
X1149A [S]	501-2864 [F]	SunATM-622/MFiber 4.0	n/a
X1157A [S]	501-3028 [F]	SunATM-155/MFiber PCI 4.0	n/a
X1158A [S]	501-3027 [F]	SunATM-155/UTP PCI 4.0	n/a
X1159A [S]	501-3029 [F]	SunATM-622/MFiber PCI 4.0	n/a
X2144A [S]	501-1932 [F]	Token Ring Interface/SBus (TRI/S) 5.0	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
SG-ARY154A-218R4 4 [S]	StorEdge D1000 12-Slot Rackmount 218GB (12 × 18.2GB) 10000 RPM
	540-4178 [F]	18.2GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0002 [F]	Seagate ST318203LC [ST318203LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0006	Fujitsu MAG3182LC [MAG3182L SUN18G] (18.2GB - 10000 RPM - SCSI-Disk)	n/a
	390-0038 [F]	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0066	Fujitsu MAN3184MC [MAN3184M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
SG-ARY154A-72R4 5 [S]	StorEdge D1000 12-Slot Rackmount 72GB (4 × 18.2GB) 10000 RPM
	540-4178 [F]	18.2GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0002 [F]	Seagate ST318203LC [ST318203LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0006	Fujitsu MAG3182LC [MAG3182L SUN18G] (18.2GB - 10000 RPM - SCSI-Disk)	n/a
	390-0038 [F]	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0043	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0048	IBM DDYS-T18350 [DDYST1835SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0066	Fujitsu MAN3184MC [MAN3184M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0085	Seagate ST318305LC [ST318305LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
SG-ARY173A-145R4 6 [S]	StorEdge D1000 12-Slot Rackmount 145GB (4 × 36.4GB) 10000 RPM
	540-4520 [F]	36.4GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0050	Seagate ST336704LC [ST336704LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0051	Fujitsu MAJ3364MC [MAJ3364M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0052	IBM DDYS-T36950 [DDYST3695SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0065	Fujitsu MAN3367MC [MAN3367M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0069	Seagate ST336605LC [ST336605LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0109	Seagate ST336607LC [ST336607LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0110	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0111	Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
SG-ARY173A-436R4 7 [S]	StorEdge D1000 12-Slot Rackmount 436GB (12 × 36.4GB) 10000 RPM
	540-4520 [F]	36.4GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks:	n/a
	340-4288	Plate	n/a
	340-5928	Plate	n/a
	340-6640	Plate	n/a
	340-7269	Plate	n/a
	390-0050	Seagate ST336704LC [ST336704LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0051	Fujitsu MAJ3364MC [MAJ3364M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0052	IBM DDYS-T36950 [DDYST3695SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0065	Fujitsu MAN3367MC [MAN3367M SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0069	Seagate ST336605LC [ST336605LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0109	Seagate ST336607LC [ST336607LSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0110	Fujitsu MAP3367NC [MAP3367N SUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	390-0111	Hitachi DK32EJ-36NC [DK32EJ36NFSUN36G] (36.4GB - 10000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
SG-DSK010C-18G [S]	540-4305	18.2GB - 10000 RPM, Disk Drive Assembly (StorEdge UniPack)	n/a
	390-0002 [F]	Seagate ST318203LC [ST318203LSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0038 [F]	Seagate ST318404LC [ST318404LCSUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
	390-0060 [F]	Fujitsu MAJ3182MC [MAJ3182M SUN18G] (18.2GB - 10000 RPM - SCSI Disk)	n/a
X9645A [S]	540-3564	StorEdge UniPack tray	n/a

4 StorEdge D1000 12-Slot Rackmount 218GB (12 × 18.2GB) 10000 RPM 5 StorEdge D1000 12-Slot Rackmount 72GB (4 × 18.2GB) 10000 RPM 6 StorEdge D1000 12-Slot Rackmount 145GB (4 × 36.4GB) 10000 RPM 7 StorEdge D1000 12-Slot Rackmount 436GB (12 × 36.4GB) 10000 RPM

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1044A [S]	375-0002 [F]	Gigabit Ethernet PCI (GBE/P) 1.0	n/a
X1045A [S]	375-0003 [F]	Gigabit Ethernet SBus (GBE/S) 1.0	n/a
X1049A [S]	501-5443 [F]	Sun Quad FastEthernet SBus (SQFE/S) 2.0	n/a
X1059A [S]	501-2919 [F]	SunFastEthernet Adapter 2.0 (Colossus Lite)	n/a
X1140A [S]	501-4375 [F]	Gigabit Ethernet SBus (GBE/S) 2.0	n/a
X1141A [S]	501-4373 [F]	Gigabit Ethernet PCI (GBE/P) 2.0	n/a
X1151A [S]	501-5524 [F]	Sun GigaSwift Ethernet MMF (Fiber)	n/a
X2721A [S]	370-3795 [F]	SuperStack II Entry Hub	n/a
X3151A [S]	501-5524 [F]	Sun GigaSwift Ethernet MMF (Fiber)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-QF2 [S]	375-3102 [F]	2Gb PCI Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [F]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	375-3108 [F]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
	240-4839	Low Profile Bracket	n/a
X1057A [S]	501-2553	Fibre Channel Host Adapter (FC25/S)	n/a
X6727A [S]	375-3030 [F]	PCI Dual FC Host Adapter+	n/a
X6730A [S]	540-2989	FC-AL SBus Card (FC100/S)	n/a
	501-5266 [F]	FC-AL SBus Host Adapter (FC100/S)	501-5202 [F]  + 501-3060 [F]
X6757A [S]	375-3048 [F]	SBus Dual FC Network Adapter	n/a
X6767A 8 [S]	375-3102 [F]	2Gb PCI Single FC Host Adapter	n/a
X6768A 9 [S]	375-3108 [F]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
	240-4839	Low Profile Bracket	n/a
X6799A [S]	375-3019 10 [F]	PCI Single FC Host Adapter	n/a

8 X6767A changed to SG-XPCI1FC-QF2 in July 2003 9 X6768A changed to SG-XPCI2FC-QF2 in July 2003 10 375-3019 with SC connector is no longer available. The substitute adapter uses a smaller LC connector.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
2730A [S]	501-4478 [F]	SBus I/O Board	n/a
2731A [S]	501-4777	PCI I/O Riser Board (3.3V)	n/a
	501-4778	PCI I/O Riser Board (5V)	n/a
	501-4830 [F]	PCI I/O Board	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X7022A [S]	256 MB (8 × 32MB DIMMs)
	501-2653 [F]	32MB DIMM	n/a
X7023A [S]	1 GB (8 × 128MB DIMMs)
	501-2654 [F]	128MB DIMM	n/a
X7025A [S]	501-4776 [F]	E10000 Memory Board	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
9620A [S]	300-1403 [F]	230V AC Power Sequencer	n/a
X3875A [S]	540-3441 11 [F]	AC Input Module	n/a
X9681A [S]	540-3440 [F]	Remote Power Control Module	n/a
X9685A [S]	300-1430 [F]	Type A135 2000 Watt AC Input Power Supply	n/a

11 AC Input Module Power Requirements

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
X1018A [S]	501-2739 [F]	Single-Ended Fast/Wide SCSI/FastEthernet (SunSwift/S)	n/a
X1052A [S]	501-1902 [F]	Fast Differential SCSI-2/Buffered Ethernet (DSBE/S)	n/a
X1053A [S]	501-2981 [F]	Fast SCSI-2/Buffered Ethernet (FSBE/S)	501-2015 [F]
X1062A [S]	370-1704 [F]	Differential Fast/Wide SCSI-2 Host Adapter (DWIS/S)	n/a
X1063A [S]	370-1703 [F]	Single-Ended Fast/Wide SCSI-2 Host Adapter (SWIS/S)	n/a
X1065A [S]	370-2443 [F]	Differential Ultra/Wide SCSI Host Adapter (UDWIS/S) (HVD)	n/a
X2222A [S]	501-5727 [F]	Dual FastEthernet / Dual SCSI PCI Adapter	n/a

Switch/Hub
Option #	Manufacturing Part #	Description	Previous Part #
X6746A [S]	Redundant FC 8-port Switch Option (two 8-port switches)
	540-4372 [F]	StorEdge Network FC Switch-8	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
2761A [S]	501-5693 [F]	E10000 System Board	n/a
X2720A [S]	501-4345 [F]	E10000 Control Board	n/a
X2721A [S]	501-4345 [F]	E10000 Control Board	n/a
X2722A [S]	501-5494 [F]	E10000 Control Board	n/a
X2760A [S]	501-4903 [F]	E10000 System Board	n/a
X2761A [S]	501-5240 [F]	E10000 System Board	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
X2750A [S]	603-2997	E10000 SSP (SPARCstation 5)	n/a
X2751A [S]	600-5471	E10000 SSP (Ultra 5)	n/a
X2753A [S]	600-5931	E10000 SSP (Ultra 5+)	n/a
X2754A [S]	600-6466	E10000 SSP (Ultra 5+)	n/a
X2755A [S]	600-7415	E10000 SSP (Enterprise 250)	n/a
X2757A [S]	600-7121	E10000 SSP (Netra T1)	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

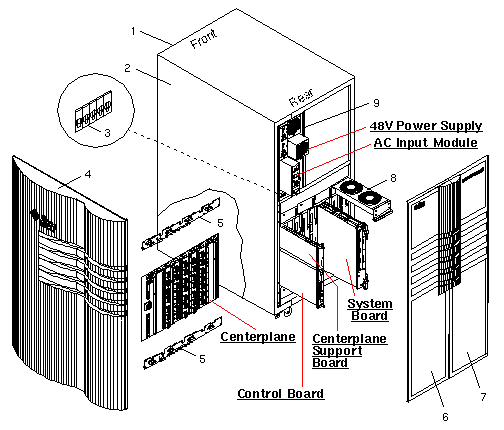

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	540-3059	Processor Cabinet
2	340-4526	Flat Side Panel (Option 9693)
2	340-4538	Flat Side Panel without Logo
3	540-3066 [F]	Circuit Breaker (×11 on each side)
4	350-1153	Curved Side Panel ("Styling Panel")
4	350-1184	Curved Side Panel without Logo
5	501-4365 [F]	Fan Tray Centerplane
6	540-3543	Left Front/Rear Door
7	540-3542 [F]	Right Front/Rear Door
-	340-4537 [F]	Front/Rear Door Foam Air Filter
8	540-3065 [F]	Fan Tray
8	540-3075 [F]	Fan Tray Filler Panel
8	540-3409 [F] [S]	Fan Tray (Option 9671)
9	540-3060 [F]	Rear AC/DC Power Shelf (SYS 0-7, FAN 0-1)
9	540-3069 [F]	Front AC/DC Power Shelf (SYS 8-15, FAN 2-3)
NS	370-2845	Card Cage Air Filter
NS	370-2887	Centerplane Removal Handle Set
NS	530-2265 [F]	AC Power Cord, Harting Han 6HsB to NEMA L6-30P
NS	530-2266	AC Power Cord, Harting Han 6HsB to IEC 309
NS	530-2379	AC Y Power Cord, NEMA L6-30P, 20' (obsolete)
NS	530-2380	AC Y Power Cord, IEC309 (obsolete)
NS	530-2391 [F]	48Vdc Front Power Shelf to Rear Power Shelf Cable, .3M
NS	530-2392 [F]	48Vdc Cardcage to Power Shelf Cable, 610 mm
NS	530-2393 [F]	48Vdc Cardcage to Power Shelf Cable, 1270 mm
NS	530-2394 [F]	Cardcage Sense Cable, .9M
NS	530-2395 [F]	Cardcage Sense Cable, 1.3M
NS	530-2396 [F]	Centerplane and Upper Fan Power Cable
NS	530-2397 [F]	Fan Signal Ribbon Cable
NS	530-2398 [F]	Fan Sense Ribbon Cable
NS	530-2399 [F]	Lower Fan Power Cable
NS	530-2400 [F]	Control Board to Remote Power Control Cable, 3M
NS	530-2401 [F]	Control Board to Remote Power Control Cable, 1.5M
NS	530-2402 [F]	AC Sequencer to Remote Power Control Cable, .5M
NS	530-2403 [F]	AC Sequencer to Remote Power Control Cable, 6M
NS	530-2475	Internal Power Shelf Circuit Breaker Cable
NS	530-2476	Internal Power Shelf Cable, 305 mm
NS	530-2477	Internal Power Shelf Cable, 660 mm
NS	530-2503 [F]	AC Y Power Cord, NEMA L6-30P, 14.75' (obsolete)
NS	530-2567 [F]	AC Power Cord, Harting Han 6HsB to NEMA L6-30P
NS	530-2568	AC Power Cord, Harting Han 6HsB to IEC309
NS	530-2802	Dual Power Option 48Vdc Cable
NS	530-2880	Dual Power Option Status Module I/O Cable
NS	530-2993 [F]	AC Y Power Cord, NEMA L6-30P, 14.75', Option 3865
NS	530-2994	AC Y Power Cord, IEC309, Option 3851
NS	540-3063 [F]	System Board Filler Panel
NS	540-3064 [F]	Control Board Filler Panel
NS	540-3068	Remote Power Control Module Shelf
NS	540-4387	Dual Power Option Status Module
NS	555-1897 [F]	Card Cage Air Filter Kit with 8× 370-2845
NS	565-1673 [F]	SBus Accessory Kit
-	330-1265	Handle (×5)
-	340-2348 [F]	Bracket (×5)
NS	595-5120	UniPack Mounting Tray Option X9645A
