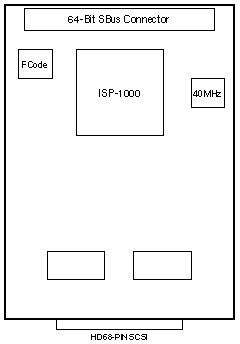

Single-Ended Fast/Wide (SWIS/S)

Codename: Sport16

Other supported platforms:
Desktops/Workstations	SPARCstation 4, 5, 10, 20
Servers	SPARCcenter 2000 SPARCserver 1000

Option 1063

370-1703
QLogic SP1610402

Power

1.6 Amps @ +5Vdc

8.0 Watts maximum

Notes

1. The minimum operating system is Solaris 2.3.
2. The SWIS/S supports up to 15 targets on the SCSI bus.
3. Do NOT mix narrow (8-bit) and wide (16-bit) SCSI devices on the same controller under Solaris 2.3. Install Patch 101378-01.
4. Warning messages are displayed if fast/wide SCSI is enabled under Solaris 2.3. Install Patch 101378-01.
5. Set scsi_options=0x3f8 in the /etc/system file to enable fast/wide transfers.

Reference

SBus Intelligent SCSI Host Adapter, 801-5355.
