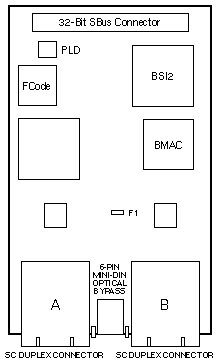

FDDI/S DAS 5.0/6.0/7.0

Other supported platforms:
Workstations:	Sun 4/15, 4/30 SPARCstation 5, 10, 20
Servers:	SPARCserver 6x0MP, 1000, SPARCcenter 2000

Options 1026 / 1143

370-2340	370-3143	370-4046
w/o Backpanel Holes NPI 105-0167	w Backpanel Holes NPI 105-0167	=370-3143-02 BugID 4156113

Notes

1. The minimum FDDI 5.0 OS is Solaris 1.1.1 or Solaris 2.3.
2. The FDDI/S is not compatible with FDDI 1.0, 2.0, 3.0 or 4.0.
3. Option 1143 includes FDDI 6.0 for Solaris 7 64-Bit operating system.
4. The Solaris 8 Supplement includes FDDI 7.0 software.
5. The final operating system for this FDDI/S is Solaris 9.
6. PLD Rev 1.0 is not compatible with the Ultra 1/1E and Ultra 2.
7. The 3 Meter cable has a duplex MIC connector (male) on one end and a duplex SC connector (male) on the other end.
8. Cable assembly 537-1009 includes type A, AM, B, BM, and S keys and duplex MIC to MIC (female to female) coupler 130-3122.
9. Ship Kit 560-2366 includes an Upper SBus Backpanel and screws.

References

1. SunFDDI SBus Adapter 5.0 Documentation.
2. SunFDDI SBus Adapter 6.0 Documentation.
