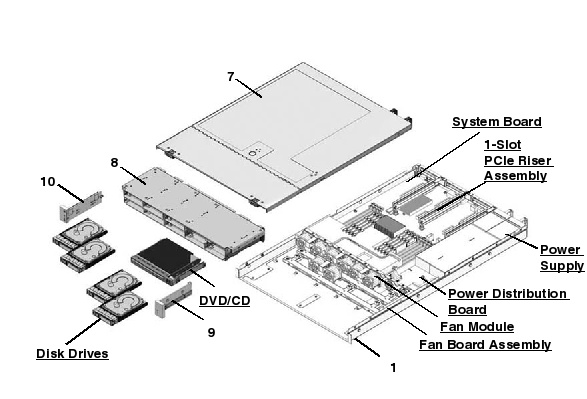

Sun Fire X4150 - Full Components List

Batteries CPU Module Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Miscellaneous Power Rack Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X6350A [S]	3.00GHz Dual-Core Xeon 5160
	310-0153 [F]	Xeon Heatsink	n/a
	371-3066 [F]	3.0 GHz CPU, Xeon 5160 Dual Core, 80W	n/a
X6351A [S]	1.60GHz Quad-Core Xeon L5310
	310-0153 [F]	Xeon Heatsink	n/a
	371-2650 [F]	1.60 GHz CPU, Xeon L5310 Quad Core, 50W	n/a
X6352A [S]	1.86GHz Quad-Core Xeon E5320
	310-0153 [F]	Xeon Heatsink	n/a
	371-2649 [F]	1.86 GHz CPU, Xeon E5320 Quad Core, 80W	n/a
X6353A [S]	2.33GHz Quad-Core Xeon E5345
	310-0153 [F]	Xeon Heatsink	n/a
	371-2652 [F]	2.33 GHz CPU, Xeon E5345 Quad Core, 80W	n/a
X6354A [S]	2.66GHz Quad-Core Xeon X5355
	310-0153 [F]	Xeon Heatsink	n/a
	371-2653 [F]	2.66 GHz CPU, Xeon X5355 Quad Core, 120W	n/a
X6356A [S]	2.00GHz Quad-Core Xeon L5335
	310-0153 [F]	Xeon Heatsink	n/a
	371-4032 [F]	2.0 GHz CPU, Xeon L5335, Quad Core, 50W	n/a
X6390A [S]	3.33GHz Dual-Core Xeon X5260
	310-0153 [F]	Xeon Heatsink	n/a
	371-3948 [F]	3.33 GHz CPU, Xeon X5260, Dual Core, 80W	n/a
X6391A [S]	2.33GHz Quad-Core Xeon E5410
	310-0153 [F]	Xeon Heatsink	n/a
	371-3950 [F]	2.33GHz CPU, Xeon E5410 Quad Core, 80W	n/a
X6392A [S]	2.83GHz Quad-Core Xeon E5440
	310-0153 [F]	Xeon Heatsink	n/a
	371-3949 [F]	2.83GHz CPU, Xeon E5440 Quad Core, 80W	n/a
X6393A [S]	3.16GHz Quad-Core Xeon X5460
	310-0153 [F]	Xeon Heatsink	n/a
	371-3952 [F]	3.16GHz CPU, Xeon X5460 Quad Core, 1333MHz FSB, 120W	n/a
X6394A [S]	2.5GHz Quad-Core Xeon L5420
	310-0153 [F]	Xeon Heatsink	n/a
	371-3951 [F]	2.5GHz CPU, Xeon L5420 Quad Core, 1333MHz FSB, 50W	n/a
X6395A [S]	3.00GHz Quad-Core Xeon E5450
	310-0153 [F]	Xeon Heatsink	n/a
	371-4146 [F]	3.00GHz CPU, Xeon E5450 Quad Core, 80W	n/a
X6396A [S]	3.5GHz Dual-Core Xeon X5270
	310-0153 [F]	Xeon Heatsink	n/a
	371-4388 [F]	3.5GHz CPU, Xeon X5270 Dual Core, 80W	n/a
X6397A [S]	2.66GHz Quad-Core Xeon L5430
	310-0153 [F]	Xeon Heatsink	n/a
	371-4389 [F]	2.66GHz CPU, Xeon L5430 Quad Core, 50W	n/a
X6398A [S]	3.33GHz Quad-Core Xeon X5470
	310-0153 [F]	Xeon Heatsink	n/a
	371-4390 [F]	3.33GHz CPU, Xeon X5470 Quad Core, 120W	n/a
n/a	350-1271 [F]	Thermal Grease FRU w/ Alcohol Wipe	n/a
	250-1802	Alcohol Wipe Cleaner	n/a
	310-0065	X23-7783D Thermal Grease Syringe - 0.5gm (0.25 - 0.30cc)	n/a

NOTE: Single processor systems can be expanded with a second processor of the identical model/speed only. Mixing with a different processor is not supported. NOTE: CPU Modules 371-3950, 371-3949, 371-3952, 371-3951 all require BIOS 1ADQW018. Download Sun Fire X4150 Supplement CD 1.1.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X4217A-Z [S]	375-3549 [C]	Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X6000A 1 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7797 [F]	8-Slot Disk Backplane, PATA DVD	n/a
n/a	511-1283 [F]	8-Slot Disk Backplane, SATA DVD	n/a
n/a	542-0355 [F]	Backplane Retainer Clip Kit	n/a
	330-5316	Black 1U Backplane Retainer Clip	n/a
n/a	7051678 [F]	8-Slot Disk Backplane, SATA DVD	511-1283 [F]

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CF-146G10K [S]	540-7355 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF-73G10K [S]	540-7354 [C]	73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF-73G15K [S]	540-7361 [C]	73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0382	Seagate ST973451SS [ST973451SSUN72G] (73GB - 15000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-ST2CF-32G2SSD [S]	540-7841 [C]	32GB Solid State SATA Drive Assembly	n/a
	371-4196	Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRB-SS2CF-146G10K [S]	540-7868 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	540-7869 [C]	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

NOTE: If RAID 1 mirroring is going to be used, the drives to be mirrored must be identical in size.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIEFCOE2-Q-SR [S]	7053422 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S]	7053423 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	375-3682 [C]
X1027A-Z [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4446A-Z [S]	7054739 [C]	PCI Express Quad Gigabit Ethernet UTP	375-3481 [C]
X5558A [S]	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
X5560A-Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
n/a	375-3481 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
n/a	375-3681 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	n/a
n/a	375-3682 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1984 [C]	Fan Module	n/a
	310-0118	40mm 8-Pole Fan, Delta	n/a
	310-0158	40mm 4-Pole Fan, Sanyo	n/a
n/a	541-2112 [C]	Fan Power Board	n/a
	330-4442	Top Bracket	n/a
	330-4443	Bottom Bracket	n/a
	501-7694	Fan Board	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM8-Z [S]	371-4295 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053433 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF8-Z [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2298 [C]	1-Slot x16 PCI Express Riser Assembly	n/a
	501-7743	x16 PCI Express Riser	n/a
	541-2737	Riser Bracket	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X6380A [S]	540-7346 [C]	Qty 2 - 1GB DIMMs (2GB Memory Assembly)	n/a
	371-3067	1GB Registered ECC DDR2-667/PC5300 DIMM	n/a
X6381A [S]	540-7347 [C]	Qty 2 - 2GB DIMMs (4GB Memory Assembly)	n/a
	371-3068 2	2GB Registered ECC DDR2-667/PC2-5300 DIMM	n/a
X6382A [S]	540-7348 [C]	Qty 2 - 4GB DIMMs (8GB Memory Assembly)	n/a
	371-3069	4GB Registered ECC DDR2-667/PC2-5300 DIMM	n/a

2 When using 371-3068 (Qimonda Memory 2GB/DDR2 HYS72T256421EFA-3S-C2, you must update to ILOM BIOS 1ADQW052 or ELOM BIOS 1ADQW027. See the Sun Fire X4150 Server Product Notes (820-1854) for further details. NOTE: Memory must be installed in pairs. Pairs of different densities may be mixed.

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	594-4749	Disk bay filler panel	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
X6327A [S]	300-2015 [C]	Type A221 658 Watt AC Input Power Supply	n/a
n/a	501-7696 [F]	Power Distribution Board	n/a
n/a	511-1604 [F]	Power Distribution Board	n/a

NOTE: Order Thermal Grease Kit PN#350-1271 when ordering a replacement Power Distribution Board PN#501-7696.

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X6324A [S]	371-2742 [C]	1U/2U Cable Management Arm	n/a
X6325A [S]	371-2740 [C]	1U/2U Snap-In Slide Rail Rackmount Kit, 730mm	n/a
X6326A [S]	371-2741 [C]	1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X6323A [S]	541-2110 [C]	PATA DVD-Writer/CD-Writer - USB Board Assembly	n/a
	330-4418	DVD Tray	n/a
	390-0337	8x PATA DVD-Writer/24x CD-Writer	n/a
	501-7698	USB Board	n/a
	541-2111	DVD Bezel	n/a
X6386A [S]	541-3493 [C]	Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly	n/a
	330-5056	DVD Tray	n/a
	390-0442	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0443	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0454	8x SATA DVD Writer/24x CD-Writer	n/a
	390-0486	8x Slot-Load SATA DVD-Writer/24x CD-Writer	390-0443
	501-7698	USB Board	n/a
n/a	541-2732 [C]	USB Assembly	n/a
	330-4418	DVD Tray	n/a
	341-4072	DVD Filler Panel	n/a
	501-7698	USB Board	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SG-XPCIE8SAS-I-Z [S]	7064052 [C]	PCI Express 8-Port SAS Controller	371-3255 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
SGXPCIESAS-R-INT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3536 3 [C]	8-Port SAS Adaptec RAID HBA	n/a
n/a	371-3255 [C]	PCI Express 8-Port SAS Controller	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a

3 Reference Alert article
System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-7323 [F]	System Board Assembly	n/a
	341-4138	PCI Filler Panel	n/a
	375-3497	System Board	n/a
	n/a	System Board Tray	n/a
n/a	540-7779 [F]	System Board Assembly/FRU	540-7323 [F]
	375-3598	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	n/a	System Board Tray	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	540-7364 [F]	SAS Cable Kit (Option X6388A)
NS	530-3894	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 560mm
NS	530-3971	SFF8087 to 90° SFF8087 Cable, 730mm, SAS0-3
NS	540-7365 [F]	SATA Cable Kit (Option X6389A)
NS	530-3962	SFF8087 to 2x SATA Cable, SATA 4/5
NS	530-3973	SFF8087 to 90° SFF8087 Cable, 630mm, SATA0-3
1	380-1557	B13 Base Chassis Assembly
1	541-1982	Enclosure Assembly
1	541-2497	Chassis Subassembly
7	541-1988	Top Cover
NS	150-4065	Interlock Switch Magnet
NS	541-1986	Base Chassis Assembly
NS	541-2115	Disk Cage
NS	541-2075 [F]	Bus Bar Set
NS	541-2115	Disk Cage
NS	541-2183 [F]	Connector Board Assembly, PATA DVD
NS	341-3168	Bracket
NS	501-7725	Connector Board (Paddle Card), PATA DVD
NS	530-3510	Interlock Switch Cable
NS	341-4138	PCI Filler Panel
NS	371-4262	Grey Plastic Air Baffle
NS	371-4263	Clear Plastic Air Baffle
NS	530-3927 [F]	PDB to System Board Ribbon Cable
NS	541-2739	PCI Cross Beam
NS	341-3050	PCI Bar
NS	343-0532	Rear Foam Gasket
NS	511-1281	Connector Board (Paddle Card), SATA DVD
NS	541-2636 [F]	Lightpipe Assembly
NS	541-3512 [F]	Connector Board Assembly, SATA DVD
NS	341-3168	Bracket
NS	530-3510	Interlock Switch Cable
NS	n/a	Clear Plastic Air Baffle
NS	n/a	Grey Plastic Air Baffle
