8-Slot Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_X4150_SAS_8Slot_Bkpln.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-7797 511-1283

FAB 270-7797 FAB 271-1283

See PATA/SATA
Compatibility Table

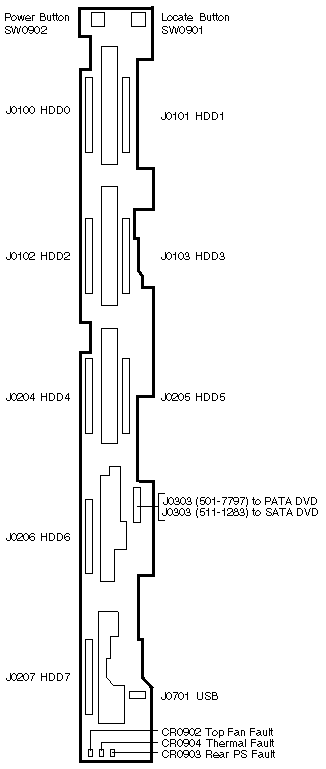

Front Side

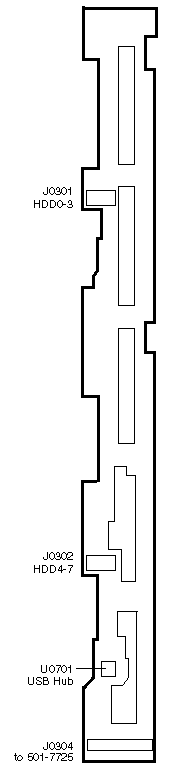

Rear Side

Sun Fire X4140 Codename: Dorado 1U
Sun Fire X4150 Codename: Doradi
Sun Fire X4170 Codename: Lynx 1U
SPARC Enterprise T5120 Codename: Huron 1U
SPARC Enterprise T5140 Codename: Maramba 1U
Oracle Exadata V2 Codename: Quicksilver

References

8-Slot Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_X4150_SAS_8Slot_Bkpln_SH_ANCHOR_7051678.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

511-1283 7051678

FAB 271-1283 FAB 271-1283

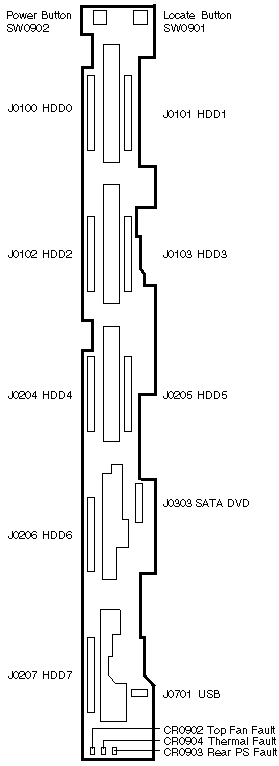

Front Side

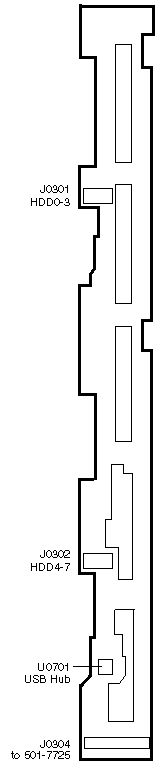

Rear Side
