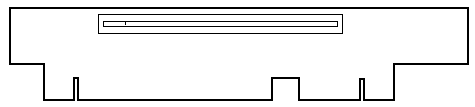

1-Slot x16 PCI Express Riser	501-7743	541-2298
x16 PCI Express Riser	PCI Express Riser FRU 501-7743 + Bracket 541-2737

Sun Fire X4140 Codename: Dorado 1U Sun Fire X4150 Codename: Doradi Sun Storage 7310 Codename: Amber Road Maguro Sun Storage 7310 SAS 2.0 Codename: Amber Road SAS2.0

X4150 Notes

1. Three x8/x16 PCI Express Risers are installed in Slot 0/3, Slot 1/4, and 2/5.
2. Slot 2, 3, 4, and 5 PCI Express Channels are electrically four lanes wide.
3. Slot 0 and Slot 1 PCI Express Channels are electrically eight lanes wide.

References

1. Sun Fire X4140 Server Documentation.
2. Sun Fire X4150 Server Documentation.
