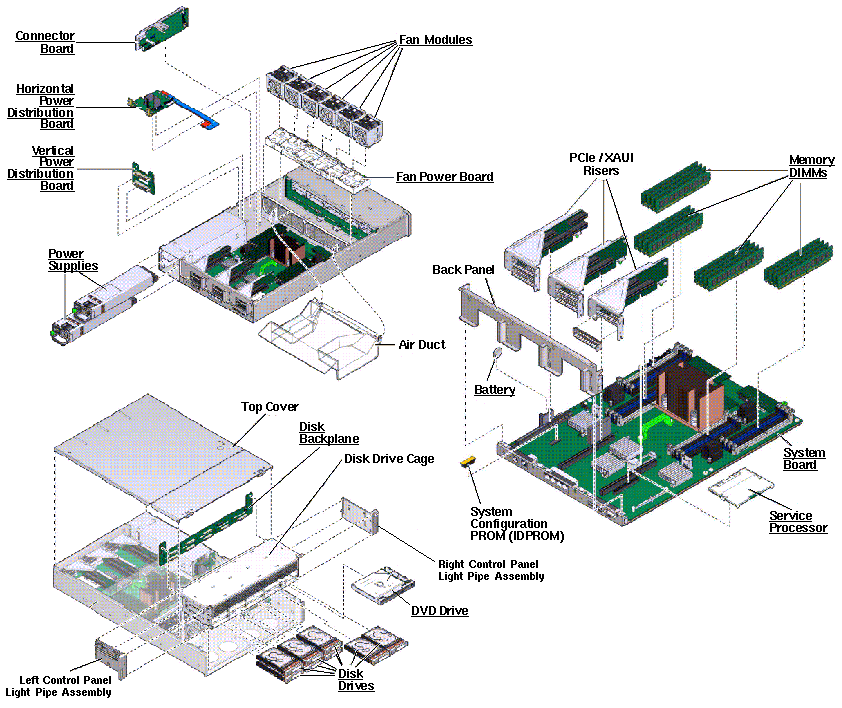

SPARC T4-1 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
Cables
Option #
Manufacturing
Description
Previous
7102869 Buy
7039990 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 10M
n/a
7102870 Buy
7039999 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 20M
n/a
7102871 Buy
7040001 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 50M
n/a
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-2M Buy
530-4567 [C]
10Gbps QSFP to QSFP Cable, 2m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2130A-1M-N Buy
530-4441 [C]
10Gbps SFP+ TwinX Cable, 1m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
SE3X4A11Z 4
[S]
594-6778
SAS Cable Kit
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm n/a
X2130A-10M-N
[S]
530-4454 [C]
10Gbps SFP+ TwinX Cable, 10m
n/a
n/a
560-2959 [F]
Cable Kit
n/a
n/a
34-Pin Connector Board to Fan Board Signal Cable n/a
34-Pin System Board to PDB Cable n/a
26-Pin System Board to PDB Cable n/a
4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 345mm n/a
4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 450mm n/a
3-Pin Vertical to Horizontal PDB Power Cable n/a
SATA Cable, 90° SATA to 90° SATA, 450mm n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm n/a
n/a
n/a
7076188 [F]
Cable Kit
560-2959 [F]
n/a
34-Pin Connector Board to Fan Board Signal Cable n/a
34-Pin System Board to PDB Cable n/a
26-Pin System Board to PDB Cable n/a
4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 345mm n/a
4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 450mm n/a
3-Pin Vertical to Horizontal PDB Power Cable n/a
SATA Cable, 90° SATA to 90° SATA, 450mm n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm n/a
n/a
n/a
7080857 [F]
Cable Kit
n/a
n/a
34-Pin Connector Board to Fan Board Signal Cable n/a
34-Pin System Board to PDB Cable n/a
26-Pin System Board to PDB Cable n/a
4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 345mm n/a
4x Mini SAS Cable, SFF-8087 to 90° SFF-8087, 450mm n/a
3-Pin Vertical to Horizontal PDB Power Cable n/a
SATA Cable, 90° SATA to 90° SATA, 450mm n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm n/a
n/a
1 This part is also included in the cable kit FRU packaged part2 This part is also included in the cable kit FRU packaged part3 This part is also included in the cable kit FRU packaged part4 Some of the SAS Cable Kits SE3X4A11Z only contain one 4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm PN#530-3891 instead of two.
If that is the case you will need to order an additional SE3X4A11Z to get the second 4x Mini SAS Cable.
Communication
Option #
Manufacturing
Description
Previous
7104074 Buy
7092757
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
7046442
[C]
X4242A
[S]
7092767
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
375-3696
[C]
X6000A 5
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
X6000A-N
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
n/a
375-3696
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a
n/a
7046442
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a
5 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
511-1435
[F]
8-Slot Disk Backplane
n/a
n/a
7053717
8-Slot Disk Backplane Assembly
n/a
Grey 2U Backplane Retainer Clip n/a
Disks
Option #
Manufacturing
Description
Previous
7101423
[S]
7017183 [C]
100GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk) n/a
n/a
7101469
[S]
7017184 [C]
300GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk) n/a
n/a
7107550
[S]
7077233 [C]
400GB Solid State SATA Drive Assembly
n/a
400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G] n/a
n/a
SE6X3G12Z
[S]
542-0388 [C] Buy
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
n/a
SE6X3K11Z
[S]
542-0287 [C] Buy
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7048474
[C]
+
7100481 Buy
7070202
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7014747
[C]
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
7014776
[C]
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
375-3617
[C]
X2124A-N Buy
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
7105381
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
7105382
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
SE3X7XA1Z
[S]
501-7489 8
[C]
10GbE XAUI Card
n/a
SE3X7XT1Z
[S]
375-3301
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
n/a
7058828
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[C]
SE3X7XT2Z
[S]
375-3495
[C]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
SG-XPCIEFCOE2-Q-SR
[S]
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
SG-XPCIEFCOE2-Q-TA
[S]
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
X4447A-Z-N
[S]
7055021
[C]
Quad Port GbE PCI Express, UTP
511-1422
[C]
n/a
X7281A-2-N
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3617
[C]
Dual 10-Gigabit Ethernet SFP+ LP
n/a
n/a
375-3681
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
511-1422
[C]
Quad Port GbE PCI Express, UTP
n/a
n/a
n/a
7014741
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
n/a
7014747
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
n/a
7014776
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
n/a
7048474
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7014741
[C]
8 Requires one XFP Transceiver
Fan
Option #
Manufacturing
Description
Previous
n/a
541-4124
[F]
Fan Board Assembly
n/a
n/a
n/a
n/a
541-4222 [C]
Fan Assembly
n/a
60×28mm 10400/9500 RPM Dual Fan n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
7101674 Buy
7023303
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
n/a
7101676 Buy
7023325
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101678 Buy
7023315
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101684 Buy
7023036
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
n/a
7101686 Buy
7023059
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7101688
[S]
7023057
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7105392
[S]
8Gigabit/Sec PCI Express Dual FC Host Adapter for EU Countries
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-EM8-N 9
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF8-N 10
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
9 Recommended that this card be installed in upper slots 3, 4, or 510 Recommended that this card be installed in upper slots 3, 4, or 5
I/O
Option #
Manufacturing
Description
Previous
n/a
541-4084 [C]
2-Slot X8/XAUI Riser Assembly
n/a
n/a
n/a
n/a
n/a
541-4085 [C]
2-Slot X8/X16 PCI Express Riser Assembly
n/a
n/a
n/a
n/a
n/a
7047128 [C]
2-Slot X8/XAUI Riser Assembly
541-4084 [C]
n/a
n/a
511-1613
n/a
7047131 [C]
2-Slot X8/X16 PCI Express Riser Assembly
541-4085 [C]
n/a
n/a
511-1614
Memory
Option #
Manufacturing
Description
Previous
7104201 Buy
32GB Memory Expansion (1 × 32GB) Option
7042211
[C]
32GB DDR3L-1066/DDR3L-1333 DIMM
n/a
7101696
[S]
8GB Memory Expansion (2 × 4GB) Option
7014642
[C]
4GB DDR3L-1333/PC3L-10600 DIMM
n/a
7101697
[S]
16GB Memory Expansion (2 × 8GB) Option
7014640
[C]
8GB DDR3L-1333/PC3L-10600 DIMM
n/a
7101698
[S]
32GB Memory Expansion (2 × 16GB) Option
7020577
[C]
16GB DDR3L-1066/PC3L-10600 DIMM
n/a
7104197
[S]
8GB Memory Expansion (1 × 8GB) Option
7042208
[C]
8GB DDR3L-1600/PC3L-12800 DIMM
n/a
7104199
[S]
16GB Memory Expansion (1 × 16GB) Option
7042210
[C]
16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz)
n/a
NOTE: PN#7042210 16GB DDR3-1600/PC3L-12800 and PN#7042211 32GB DDR3L-1333/PC3L-10600 both require firmware 8.2.1.b or later. See article 1494121.1 for more details.
Miscellaneous
Option #
Manufacturing
Description
Previous
n/a
350-1562
Clear Plastic Air Duct
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
300-2235
[C]
Type A249 1100/1200 Watt AC Input Power Supply
n/a
n/a
300-2304
[C]
Type A249A 1100/1200 Watt AC Input Power Supply
300-2235
[C]
n/a
541-4223 [F]
Power Distribution Assembly
n/a
n/a
n/a
Horizontal Power Distribution Board n/a
Vertical Power Distribution Board n/a
n/a
n/a
7049253 [F]
Power Distribution Assembly
541-4223 [F]
n/a
n/a
Vertical Power Distribution Board n/a
Horizontal Power Distribution Board
511-1437
n/a
n/a
7081590
[C]
Type A249A 1100/1200 Watt AC Input Power Supply
300-2304
[C]
+
11 This part is also included in the cable kit FRU packaged part12 This part is also included in the cable kit FRU packaged part
Rack
Option #
Manufacturing
Description
Previous
n/a
371-2740 [C]
1U/2U Snap-In Slide Rail Rackmount Kit, 730mm
n/a
n/a
371-2742 [C]
1U/2U Cable Management Arm
n/a
Removable Media
Option #
Manufacturing
Description
Previous
n/a
541-2732 [C]
USB Assembly
n/a
n/a
n/a
n/a
n/a
541-3493
[C]
Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
8x SATA DVD Writer/24x CD-Writer n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer
390-0443
n/a
n/a
7057476
[C]
Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
n/a
7070425
[C]
Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
n/a
7079141
[C]
Tray-Load SATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer n/a
n/a
8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5) n/a
8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6) n/a
SCSI
Option #
Manufacturing
Description
Previous
7104482
[S]
7070787
[C]
Flash Accelerator F40 400GB Solid State Memory
7026993
[C]
7105384
[S]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter for EU Countries
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
7105387
[S]
8-Port 6Gbps SAS-2 PCI Express HBA
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
7107092
[S]
7069200
[C]
800GB PCI Express Flash Accelerator F80 SAS HBA
n/a
SGX-SAS6-EXT-Z 13
[S]
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-R-INT-Z 14 15
[S]
7047503
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
375-3701
[C]
7050794
[C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
371-4982 [C]
SGXPCIE2SCSIU320-N
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
n/a
371-4982 [C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
n/a
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3641
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3701
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
n/a
n/a
7026993
[C]
Flash Accelerator F40 400GB Solid State Memory
n/a
13 For external cable routing reasons this card must be installed in slot 3, slot 4 or slot 5.14 For thermal reasons the RAID HBA needs to be in slot 3.15 If SAS cabling for X-Option SGX-SAS6-R-INT-Z is needed, order X-Option SE3X4A11Z SAS Cable Kit.
System Board
Option #
Manufacturing
Description
Previous
n/a
7096741
[F]
8-Core 2.85GHz System Board Assembly (reworked 7047134)
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
7096745 16
[F]
8-Core 2.85GHz System Board Assembly (reworked 7063388)
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
7097402
[F]
8-Core 2.85GHz System Board Assembly (reworked 7015924)
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
7321781
[F]
8-Core 2.85GHz System Board Assembly
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
7015924
[F]
[S]
8-Core 2.85GHz System Board Assembly
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
7047134
[F]
[S]
8-Core 2.85GHz System Board Assembly
7015924
[F]
[S]
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
7063388 17
[F]
[S]
8-Core 2.85GHz System Board Assembly
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
16 Requires System Firmware 8.4.2.d (or higher)17 Requires System Firmware 8.4.2.d (or higher)
System Service Processor
Option #
Manufacturing
Description
Previous
n/a
541-4693
[C]
Service Processor Assembly
n/a
n/a
AST2200 Service Processor n/a
n/a
7053715
[C]
Service Processor Assembly
541-4693
[C]
n/a
AST2200 Service Processor n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
-
371-2484 18
PDB Signal Cable
-
530-3891
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm
-
541-2629
2.5" Disk Drive Filler Panel
-
541-4238
L4 Chassis Assembly
-
-
-
-
Left Side Endcap Lightpipe Assembly
NS
NS
NS
-
NS
Right Side Endcap Lightpipe
-
-
-
-
-
-
-
-
-
NS
350-1288
DIMM Slot Filler
NS
530-4417
6-Pin Fan Power Cable
NS
541-2636 [F]
Lightpipe Assembly
-
Left Side Endcap Lightpipe Assembly
NS
NS
NS
NS
Right Side Endcap Lightpipe
18 This part is also included in the cable kit FRU packaged part
