8-Slot Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_T4_1_8Slot_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

511-1435 7053712

FAB 271-1435 FAB 271-1435

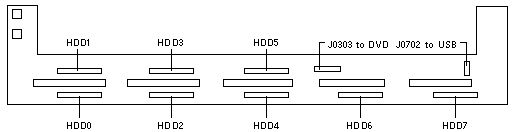

Front View

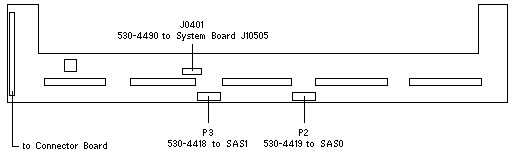

Rear View

Notes

Cable Kit 560-2959 includes 530-4418, 530-4419, and 530-4490.

References

SPARC T3-1 Server Documentation.
SPARC T4-1 Server Documentation.
