2-Slot PCI Express Riser
| 511-1613 |
541-4084 |
7047129 |
7047128 |
x8/XAUI PCI Express Riser
Slot 0/3 and 1/4 |
PCI Express Riser Assembly
511-1613 + Bracket 350-1413 |
x8/XAUI PCI Express Riser
Slot 0/3 and 1/4 |
PCI Express Riser Assembly
7047129 + Bracket 350-1413 |
| 511-1614 |
541-4085 |
7047178 |
7047131 |
x8/x16 PCI Express Riser
Slot 2/5 |
PCI Express Riser Assembly
511-1614 + Bracket 541-2531 |
x8/x16 PCI Express Riser
Slot 2/5 |
PCI Express Riser Assembly
7047178 + Bracket 541-2531 |

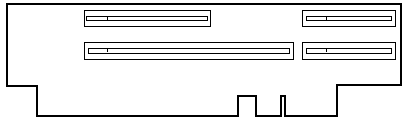

| x8/xAUI PCI Express 2.0 Riser 511-1613 / 7047129 |
 |
|

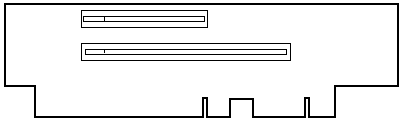

| x8/x16 PCI Express 2.0 Riser 511-1614 / 7047178 |
 |
SPARC T3-1 and T4-1 Notes
- Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
- One x8/x16 PCI Express Riser is installed in Slot 2/5.
- SPARC T3-1 Slots 0, 1, 3, and 4 PCI Express Channels are electrically
four lanes wide.
- SPARC T3-1 Slots 2, and 5 PCI Express Channels are electrically
eight lanes wide.
- All SPARC T4-1 PCI Express Channels are electrically eight lanes wide.
- Slot 0, 1, and 2 PCI Express Channels are mechanically sixteen lanes wide.
- Slot 3, 4, and 5 PCI Express Channels are mechanically eight lanes wide.
- The XAUI slots on the x8/XAUI Riser installed in Slot 1/4 are
not functional.
References
 SPARC T3-1 Server Documentation.
- SPARC T4-1 Server Documentation.
|
