7015924	7047134	7063388
T4-1 System Board Assembly 8-Core 2.85GHz System Board 7015696 Tray 350-1563	T4-1 System Board Assembly 8-Core 2.85GHz System Board 7047135 Tray 350-1563	T4-1A System Board Assembly 8-Core 2.85GHz System Board 7063382 Tray 350-1563
7097402	7096741	7096745
T4-1 System Board Assembly 8-Core 2.85GHz System Board 7015696 Tray 350-1563	T4-1 System Board Assembly 8-Core 2.85GHz System Board 7047135 Tray 350-1563	T4-1A System Board Assembly 8-Core 2.85GHz System Board 7063382 Tray 350-1563

7321781
T4-1A System Board Assembly 8-Core 2.85GHz System Board 7321738 Tray 350-1563

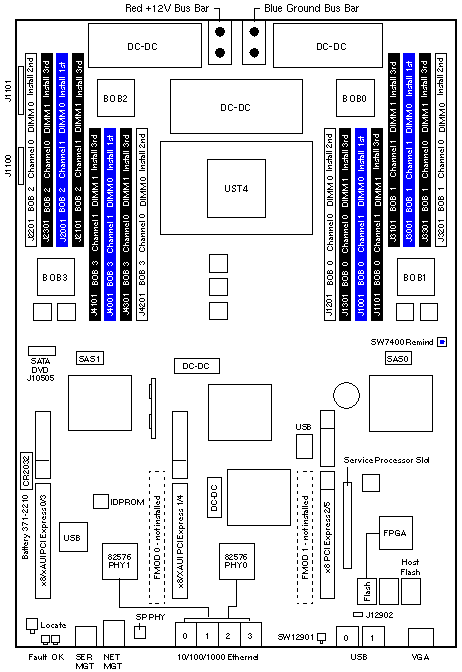

Jumpers and Switches

LOCATION	PINS	SETTING	DESCRIPTION
J12902	1-2	In	Default Setting
J12902	2-3	In	Clear Service Processor Password
SW1070	n/a	n/a	Locate Button
SW7400	n/a	n/a	Memory Fault Remind Button
SW12091	n/a	n/a	SP Physical Presense Detection

Notes

1. The minimum operating system is Solaris 10 09/10 with the complete Solaris 10 08/11 bundle.
2. The D220 is located at U5801 on the T4-1 System Board.
3. D220 rework was done by E0020736, E0020799, and M0009725.
4. System Boards 7063388 and 7096745 require minimum system firmware 8.4.2.d
   due to component changes at U6002, U6202, U13501, and U13601.
5. System Board 7321781 does not include the SMM150 at U13803 due to EOL.

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.
4. All DIMMs installed in the server must have identical architecture, including identical capacity and rank classification.
5. See the SPARC T4-1 Server Documentation for additional DIMM population rules.
6. Install Memory Filler 350-1288 in all unused slots.

References

1. SPARC T4-1 Server Documentation.

Notes

1. The minimum operating system is Solaris 10 09/10 with the complete Solaris 10 08/11 bundle.
2. System Boards 7077942 and 7077944 require minimum system firmware 8.4.2.d due to
   component changes at U6002, U6202, U13501, and U13601.

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.
4. All DIMMs installed in the server must have identical architecture, including identical capacity and rank classification.
5. See the Netra SPARC T4-1 Server Documentation for additional DIMM population rules.

UltraSPARC Notes

1. Firmware 8.2.2.b is required to support UltraSPARC T4 Version 1.3.
2. UltraSPARC T4 V1.3 was used on 7051509 and 7051608 from 12/20/12 to 03/20/13. (Deviation D0001911)
3. UltraSPARC T4 Version 1.3 was added to 7051509 in January 2013. (E0013051)
4. UltraSPARC T4 Version 1.3 was added to 7051608 in February 2013. (E0014669)

References

1. Netra SPARC T4-1 Server Documentation.
