SPARC S7-2L Server - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-2210 [C] Buy 3V Lithium Coin Cell Battery n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
7102869 Buy 7039990 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 10M n/a
7102870 Buy 7039999 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 20M n/a
7102871 Buy 7040001 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 50M n/a
7105199 Buy 7063849 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M n/a
7105206 Buy 7063852 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M n/a
7114369 Buy 7308821 [C] MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M n/a
7114370 Buy 7308822 [C] MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M n/a
7114371 Buy 7308823 [C] MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M n/a
7118363 7348892 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 1M n/a
7118364 7348895 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 2M n/a
7118365 7348898 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 3M n/a
7118366 7348901 [C] QSFP28 to 4x SFP28 Copper Splitter Cable, 5M n/a
7118367 7348904 [C] SFP28 Twinaxial Passive Copper Cable, 1M n/a
7118368 7348907 [C] SFP28 Twinaxial Passive Copper Cable, 2M n/a
7118369 7348910 [C] SFP28 Twinaxial Passive Copper Cable, 3M n/a
7118370 7348913 [C] SFP28 Twinaxial Passive Copper Cable, 5M n/a
X2121A-1M-N Buy 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
X2121A-2M Buy 530-4567 [C] 10Gbps QSFP to QSFP Cable, 2m n/a
X2121A-3M-N Buy 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
X2121A-5M-N Buy 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
X2125A-1M-N Buy 530-4450 [C] QSFP to 4× SFP+ Splitter Cable, 1m n/a
X2125A-3M-N Buy 530-4451 [C] QSFP to 4× SFP+ Splitter Cable, 3m n/a
X2125A-5M-N Buy 530-4452 [C] QSFP to 4× SFP+ Splitter Cable, 5m n/a
X2127A-10M Buy 530-4480 [C] MPO to 4x LC Duplex Splitter Cable, 10m n/a
X2127A-20M Buy 530-4481 [C] MPO to 4x LC Duplex Splitter Cable, 20m n/a
X2127A-50M Buy 530-4482 [C] MPO to 4x LC Duplex Splitter Cable, 50m n/a
X2130A-1M-N Buy 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
X2130A-3M-N Buy 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
X2130A-5M-N Buy 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
7111608 [S] 7314231 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 2M n/a
7111609 [S] 7314232 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 3M n/a
7111610 [S] 7314233 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 5M n/a
7111611 [S] 7314234 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 10M n/a
7111612 [S] 7314235 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 20M n/a
7111613 [S] 7314236 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 50M n/a
7111614 [S] 7314237 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 70M n/a
n/a 7014226 [C] Interlock Cable, 125mm n/a
n/a 7314222 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 1M n/a
n/a 7314223 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 2M n/a
n/a 7314224 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 3M n/a
n/a 7314225 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 5M n/a
n/a 7314226 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 10M n/a
n/a 7314227 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 20M n/a
n/a 7314228 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 50M n/a
n/a 7314229 [C] Magenta PRIZM MTP to Magenta PRIZM MTP EDR Cable, 70M n/a
n/a 7314230 [C] Magenta PRIZM MTP to Aqua MTP with MT Ferrule EDR Cable, 1M n/a
n/a 7320929 [F] 2.5" 12-Slot NvME Backplane Cable Kit [SKU] n/a
  • 7064125
  • 8-Pin Dc Power Cable, 394mm
 n/a
  • 7079291
  • 26-Pin Ribbon Data Cable, 127mm
 n/a
  • 7086654
  • 8-Pin DC Power Cable, 372mm
 n/a
  • 7309151
  • Six Cable Bundle
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 2-to-F, 770mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 1-to-E, 770mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 0-to-D, 730mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 2-to-C, 325mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 1-to-B, 250mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 0-to-A, 250mm
 n/a
  • 7312666
  • Six Cable Bundle
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 2-to-F, 640mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 0-to-A, 485mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 1-to-E, 640mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 0-to-D, 600mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 2-to-C, 560mm
 n/a
    • n/a
    • 36-Pin SFF-8643 to 90° SFF-8643 Cable, 1-to-B, 485mm
 n/a
n/a 7320930 [F] 2.5" 8-Slot Backplane Cable Kit [SKU] n/a
  • 7064125
  • 8-Pin Dc Power Cable, 394mm
 n/a
  • 7064127
  • 26-Pin Ribbon Data Cable, 280mm
 n/a
  • 7316934
  • SAS-3 Cable
 n/a
    • n/a
    • 72-Pin SFF-8643 to SFF-8087 Cable, 360mm
 n/a
    • n/a
    • 72-Pin SFF-8643 to 90° SFF-8087 Cable, 580mm
 n/a
  • 7316937
  • 72-Pin SFF-8643 to 90° SFF-8087 SAS-3 Cable, 587mm
 n/a
  • 7316939
  • 72-Pin SFF-8643 to 90° SFF-8087 SAS-3 Cable, 552mm
 n/a
n/a 7320931 [F] 3.5" 12-Slot Backplane Cable Kit [SKU] n/a
  • 530-4037
  • 2-Slot 10-Pin Disk Backplane Power Cable
 n/a
  • 7064129
  • SFF-8087 to SATA to SATA Cable, 600mm/700mm
 n/a
  • 7079291
  • 26-Pin Ribbon Data Cable, 127mm
 n/a
  • 7098662
  • 8-Pin DC Power Cable, 322mm
 n/a
  • 7308892
  • 72-Pin SFF-8643 to 2x 36-Pin SFF-8087 SAS-3 Cable, 283mm
 n/a
n/a 7320932 [F] 2.5" 24-Slot NVMe Backplane Cable Kit [SKU] n/a
  • 530-4037
  • 2-Slot 10-Pin Disk Backplane Power Cable
 n/a
  • 7064125
  • 8-Pin Dc Power Cable, 394mm
 n/a
  • 7064129
  • SFF-8087 to SATA to SATA Cable, 600mm/700mm
 n/a
  • 7079291
  • 26-Pin Ribbon Data Cable, 127mm
 n/a
  • 7086654
  • 8-Pin DC Power Cable, 372mm
 n/a
  • 7308893
  • 72-Pin SFF-8643 to 2x 36-Pin SFF-8087 SAS-3 Cable,313mm
 n/a
  • 7308896
  • 72-Pin SFF-8643 to 68-Pin SFF-8087 SAS-3 Cables, 685mm
 n/a
Chassis
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7073525 Chassis Assembly n/a
  • 7061427
  • Midwall Subassembly
 n/a
  • 7082078
  • Chassis Subassembly
 n/a
  • 7303490
  • Rear Cover Assembly
 n/a
    • 150-4065
    • Interlock Switch Magnet
 n/a
n/a 7319695 [C] Air Flow Director Assembly n/a
  • 7073298
  • Poron Bumper, 2.36mm x 10mm x 60mm (Qty=3)
 n/a
  • 7319696
  • Air Flow Director
 n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
7104074 Buy 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 7046442 [C]
n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-4674 2-Slot Rear Disk Cage Assembly n/a
  • 7012767
  • Rear Disk Cage
 n/a
  • 2-Slot Backplane
 n/a
n/a 7061283 24-Slot 2.5" Disk Cage Assembly n/a
  • 341-7139
  • Right Ear Cover
 n/a
  • 341-7140
  • Left Ear Cover
 n/a
  • Disk Backplane Right LED Indicator Module
 n/a
    • 7023333
    • Right Indicator
 n/a
  • 7064122
  • Left Indicator Ribbon Cable
 n/a
  • 7064124
  • Right Indicator Ribbon Cable
 n/a
  • 7069338 [F]
  • 24-Slot Backplane and SAS Expander Assembly
 n/a
    • 7063607
    • SAS Expander Assembly
 n/a
      • 7064883
      • Heatsink
 n/a
      • 7086648
      • SAS Expander
 n/a
    • 7096411
    • 24-Slot Backplane
 n/a
  • Left Indicator Assembly
 n/a
    • 7096184
    • Left Indicator w/o Button or Lightpipe
 n/a
n/a 7093482 12-Slot 2.5" NVMe Cage Assembly n/a
  • 341-7139
  • Right Ear Cover
 n/a
  • 341-7140
  • Left Ear Cover
 n/a
  • Disk Backplane Right LED Indicator Module
 n/a
    • 7023333
    • Right Indicator
 n/a
  • 7064122
  • Left Indicator Ribbon Cable
 n/a
  • 7064124
  • Right Indicator Ribbon Cable
 n/a
  • 7093483 [F]
  • 12-Slot NVMe Backplane Assembly
 n/a
    • 7089038
    • 12-Slot NVMe Backplane
 n/a
    • 7098138
    • 1.57 x 4 x 10mm Insulator
 n/a
  • 7094720
  • NVMe Cage
 n/a
  • Left Indicator Assembly
 n/a
    • 7096184
    • Left Indicator w/o Button or Lightpipe
 n/a
n/a 7302808 12-Slot 2.5" NVMe Cage Assembly n/a
  • 341-7139
  • Right Ear Cover
 n/a
  • 341-7140
  • Left Ear Cover
 n/a
  • Disk Backplane Right LED Indicator Module
 n/a
    • 7023333
    • Right Indicator
 n/a
  • 7064122
  • Left Indicator Ribbon Cable
 n/a
  • 7064124
  • Right Indicator Ribbon Cable
 n/a
  • 7093483 [F]
  • 12-Slot NVMe Backplane Assembly
 n/a
    • 7089038
    • 12-Slot NVMe Backplane
 n/a
    • 7098138
    • 1.57 x 4 x 10mm Insulator
 n/a
  • Left Indicator Assembly
 n/a
    • 7096184
    • Left Indicator w/o Button or Lightpipe
 n/a
  • 7302807
  • NVMe Cage
 n/a
    • 7097361
    • Filler Panel
 n/a
  • 7307304 [F]
  • 12-Slot NVMe Backplane Assembly
 n/a
    • 7308574
    • 12-Slot NVMe Backplane
 n/a
n/a 7310384 12-Slot 3.5" Disk Cage Assembly n/a
  • 341-7139
  • Right Ear Cover
 n/a
  • 341-7140
  • Left Ear Cover
 n/a
  • Disk Backplane Right LED Indicator Module
 n/a
    • 7023333
    • Right Indicator
 n/a
  • 7064122
  • Left Indicator Ribbon Cable
 n/a
  • 7064124
  • Right Indicator Ribbon Cable
 n/a
  • 7077824
  • 12-Slot 3.5" Door Extender Assembly
 n/a
    • 7077825
    • Top Cover Door Extender
 n/a
  • Left Indicator Assembly
 n/a
    • 7096184
    • Left Indicator w/o Button or Lightpipe
 n/a
  • 12-Slot Backplane and SAS Expander Assembly
 n/a
    • 7063607
    • SAS Expander Assembly
 n/a
      • 7064883
      • Heatsink
 n/a
      • 7086648
      • SAS Expander
 n/a
    • 7311542
    • 12-Slot Backplane
 n/a
  • 7318167
  • 12-Slot 3.5" Disk Cage
 n/a
n/a 7311115 12-Slot 3.5" Disk Cage Assembly n/a
  • 341-7139
  • Right Ear Cover
 n/a
  • 341-7140
  • Left Ear Cover
 n/a
  • Disk Backplane Right LED Indicator Module
 n/a
    • 7023333
    • Right Indicator
 n/a
  • 7064122
  • Left Indicator Ribbon Cable
 n/a
  • 7064124
  • Right Indicator Ribbon Cable
 n/a
  • 7077824
  • 12-Slot 3.5" Door Extender Assembly
 n/a
    • 7077825
    • Top Cover Door Extender
 n/a
  • Left Indicator Assembly
 n/a
    • 7096184
    • Left Indicator w/o Button or Lightpipe
 n/a
  • 7311113
  • 12-Slot 3.5" Disk Cage
 n/a
  • 12-Slot Backplane and SAS Expander Assembly
 n/a
    • 7063607
    • SAS Expander Assembly
 n/a
      • 7064883
      • Heatsink
 n/a
      • 7086648
      • SAS Expander
 n/a
    • 7314191
    • 12-Slot Backplane
 n/a
n/a 7323223 8-Slot 2.5" Disk Cage Assembly n/a
  • 341-7139
  • Right Ear Cover
 n/a
  • 341-7140
  • Left Ear Cover
 n/a
  • Disk Backplane Right LED Indicator Module
 n/a
    • 7023333
    • Right Indicator
 n/a
  • 7064122
  • Left Indicator Ribbon Cable
 n/a
  • 7064124
  • Right Indicator Ribbon Cable
 n/a
  • 7077622
  • 8-Slot Disk Cage
 n/a
  • Left Indicator Assembly
 n/a
    • 7096184
    • Left Indicator w/o Button or Lightpipe
 n/a
  • 8-Slot Backplane
 n/a
  • 7323222
  • Fan Door Cover without Spacer 7300151
n/a
1 Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7110933 Buy 7094132 [C] 400GB Solid State SAS Drive Assembly n/a
  • 400GB SAS Solid State Drive [HSCAC2DA4SUN400G]
 n/a
  • Marlin 2.5" Bracket
 n/a
7111103 Buy 7093015 [C] 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7111108 Buy 7093037 [C] 1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
n/a
  • Marlin 2.5" Bracket
 n/a
7112258 7301588 [C] 8TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUH728080AL5200 [H7280A520SUN8.0T] (8TB - 7200 RPM - SAS-3 Disk
 n/a
  • Coral 3.5" Disk Drive Bracket
 n/a
  • 3.5" Coral Disk Drive Bracket
 n/a
7337414 [C] 8TB - 7200 RPM SAS-3 Disk Drive Assembly with 1 bracket and 1 of the following disks: n/a
  • HGST HUH721080AL5200 (HGST H7280B520SUN8.0T) (8TB - 7200 RPM - SAS-3 Disk)
 n/a
  • Coral 3.5" Disk Drive Bracket
 n/a
  • 3.5" Coral Disk Drive Bracket
 n/a
7115079 Buy 7330686 [C] 800GB SAS3 Solid State Drive Assembly n/a
  • HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7115457 7340035 [C] 6.4TB NVMe Solid State Drive Assembly n/a
  • Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118670 7350766 [C] 1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
7118672 7352257 [C] 600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
7110927 [S] 7302552 [C] 1.6TB Solid State NVMe Drive Assembly n/a
  • Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive)
 n/a
  • Marlin 2.5" Bracket
 n/a
7113805 [S] 7317908 [C] 3.2TB NVMe Solid State Drive Assembly n/a
  • Samsung MZWLK3T2HCJL-000U3 [MS1PC2DD3ORA3.2T] (3.2TB - 2.5" Solid State - NVMe Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7350749 [C] 800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7351735 [C] [A] 8.0TB - 7200 RPM SAS3 Disk Drive Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUH721008AL5204 [H7280B524SUN8.0T] (8.0TB - 7200 RPM SAS3 Disk without Encryption) (EAEU part - see note below)
 n/a
  • Coral 3.5" Disk Drive Bracket
 n/a
  • 3.5" Coral Disk Drive Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
7100477 Buy 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
7100481 Buy 7070202 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
7100488 Buy 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
7111181 7096675 [C] Quad 10-Gigabit Base-T Ethernet n/a
7114094 Buy 7305556 [C] 40GbE Long Wave QSFP+ Transceiver n/a
7114134 Buy 7319817 [C] Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+ n/a
7118016 7339763 [C] Dual 10/25-Gigabit SFP28 Ethernet n/a
7118019 7331433 [C] 25Gbps Short Wave SFP+ Transceiver n/a
7118021 7347691 [C] 25Gbps Long Wave SFP+ Transceiver n/a
X1109A-Z Buy 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
X2124A-N Buy 7326504 [C] 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver n/a
X2129A-N Buy 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
X5562A-Z Buy 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7045042 [C] Dual Counter Rotating Fan Module n/a
  • 7045041
  • 80×80mm Counter Rotating Fan
 n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
7101674 Buy 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
7101676 Buy 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101678 Buy 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101684 Buy 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
7101686 Buy 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
7115461 7335907 2 [C] Dual 32Gbps Fibre Channel Host Adapter n/a
  • 7335907a
  • Emulex Dual Port 32Gbps Fibre HBA
 n/a
  • 7335907b
  • Pair of Emulex 32Gbps Short Wave SFP+ Transceivers
 n/a
    • 7335907c
    • Emulex 32Gbps Short Wave SFP+ Transceiver
 n/a
7115462 7335902 3 [C] QLogic Dual Port 32Gbps Fibre HBA n/a
  • 7335902a
  • QLogic Dual Port 32Gbps Fibre HBA
 n/a
  • 7340777 [C]
  • Pair of QLogic 32Gbps Short Wave SFP+ Transceivers
 n/a
    • 7340776
    • QLogic 32Gbps Short Wave SFP+ Transceiver
 n/a
2 7335907a-c are not a real Oracle part numbers. These physical parts do not have an Oracle part number. 7335907a-c are being used to help relate this non-part numbered part to the parent part that has a real Oracle part number.
3 7335902a is not a real Oracle part number. This physical part does not have an Oracle part number. 7335902a is being used to help relate this non-part numbered part to its parent part that has a real Oracle part number.
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7064634 [C] 8-Port PCI Express Switch n/a
  • PCI Express Switch w/o Bracket or Heatsink
 n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
7112926 Buy 7316672 [C] 32GB DDR4-2400 Registered DIMM n/a
7113469 Buy 7316673 [C] 64GB DDR4-2400 Load Reduced DIMM n/a
7119481 7358611 [C] 16GB DDR4-2666 Registered DIMM (runs at 2400MHz) n/a
7112925 [S] 7316671 [C] 16GB DDR4-2400 Registered DIMM n/a
n/a 7074618 [C] 2GB Embedded USB n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7311826 [C] Type A266 1200 Watt AC Input Power Supply n/a
n/a 7319628 Power Supply Blocking Filler Panel n/a
n/a 7333459 [C] Type A266 800/1200 Watt AC Input Power Supply - India ISI Mark 7311826 [C]
n/a 7350780 [C] Type A266 800/1200 Watt AC Input Power Supply 7333459 [C]
n/a 7358600 [C] A266 1200 Watt AC Input Power Supply n/a
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
7114246 7042273 [C] 1U/2U Cable Management Arm (Snap-in) n/a
n/a 350-1719 [C] 1U/2U Snap-In Slide Rail Rackmount Kit n/a
n/a 7334988 1U/2U Shipping Bracket Kit n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
7111911 4 Buy 7093727 External USB DVD Assembly n/a
  • 7093729 [C]
  • USB DVD w/o AC adapter, USB cable, power cable,V2
 n/a
7093728 USB DVD AC Adapter & Cable Kit n/a
  • 7075046
  • USB DVD Cable
 n/a
  • 7093730 [C]
  • USB DVD Adapter w/o Power Cable
 n/a
4 In Japan, order X-Option 7111912.
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
7110119 Buy 7085208 [C] 8-Port 12Gbps SAS-3 HBA (External) n/a
7113826 Buy 7317693 [C] 3.2TB Flash Accelerator F320 NVMe Card n/a
7115455 7335943 [C] 6.4TB Flash Accelerator F640 NVMe Card n/a
7110865 [S] 7307468 [C] 1.6TB Flash Accelerator F160 NVMe Card w/ LP Bracket (B1 Silicon) n/a
n/a 7085207 [C] 8-Port 12Gbps SAS-3 HBA (Internal) n/a
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7334004 [F] Dual 8-Core System Board Assembly n/a
  • 2GB Embedded USB
 n/a
  • 7307989
  • System Board Tray
 n/a
  • 7322614
  • MBOM Cover
 n/a
  • 7334003
  • Dual 8-Core System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
n/a 7344263 [F] Dual 8-Core 4.27GHz System Board Assembly n/a
  • 2GB Embedded USB
 n/a
  • 7307989
  • System Board Tray
 n/a
  • 7322614
  • MBOM Cover
 n/a
  • 7344262
  • Dual 8-Core System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

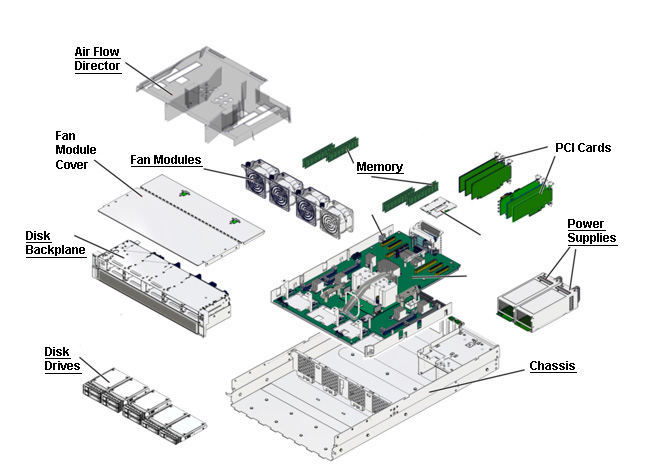

SPARC S7-2L Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 150-4065 Interlock Switch Magnet
- 240-4674 PCI Express Filler Panel
- 541-2629 2.5" Disk Drive Filler Panel
-
  • 330-4577
  • Disk Filler Bezel
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
