Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

Notes

Drive 7332768 was released in May 2017. (E0034722)
Drive 7332768 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
Assemblies 7337414 and 7334977 with drive 7332768 were released in June 2017. (E0034677)

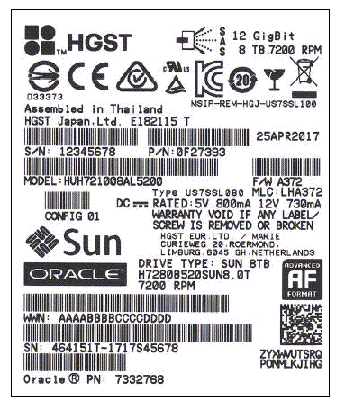

The manufacturers model number on the serial number label is HUH721080AL5200.
The Oracle Model Number on the serial number label is H7280B520SUN8.0T.
The Product Identification in SCSI Inquiry bytes 16-31 is H7280B520SUN8.0T.

HGST HUH721080AL5200 (8.0TB)

3 1/2" 7200 RPM Serial Attached SCSI

<a href="../../Systems/SupportHeaders/DISK_HGST_HUH721080AL5200.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7332768 7337414 7334977 7348844

1" Height
Libra
T10 PI Type 1
Spec 7332769 Coral Bracket Assy
3.5" Bracket 7308501
or 3.5" Bracket 7343235
PTO 7112258 Heron Bracket Assy
3.5" Bracket 7096032 Coral Bracket Assy
3.5" Bracket 7308501
or 3.5" Bracket 7343235
