Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

8-Port 12Gbps SAS-3 HBA (Internal)

Codename: Estes-INT

<a href="../../Systems/SupportHeaders/SCSI_PCIE_8Port_SAS3.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Option 7110485

7085207

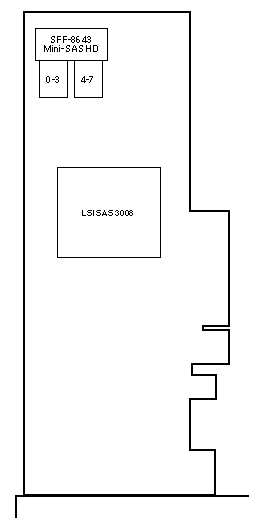

Avago/LSI Logic SAS 9300-8i x8 PCI Express x8

Notes

Low Profile Bracket 240-7514 is included.
PCI Identifiers are Vendor ID 0x1000, Device ID 0x0097, Subsystem Vendor ID 0x1000, and Subsystem Device ID 0x30E0.
Vital Product Data VPD=PN is 7085207.
