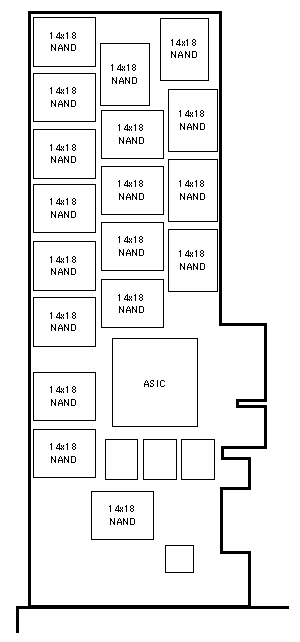

Flash Accelerator F160

Codename: Aura 3.0

Option 7110865

7090698	7307468
Intel MM# 937380 Fultondale-7 AIC SSDPEDME016T4SP x4 PCI Express Gen3 B0 Silicon	Intel MM# 937380 Fultondale-7 AIC SSDPEDME016T4SP x4 PCI Express Gen3 B1 Silicon

Notes

1. The product codename is Aura 3 NVMe. So is the 1.6TB PCI Express SSD.
2. The Low Profile Bracket was not assigned an Oracle part number.
3. PCI Identifiers are Vendor ID 0x8086, Device ID 0x0953, Subsystem Vendor ID 0x108E, and Subsystem Device ID 0x370b.
4. Vital Product Data VPD=PN is 7090698 or 7307468.
5. Boards built with B0 silicon are not compatible with SPARC systems.
6. M10-1, M10-4, and M10-4S require XCP2260.

References

1. Oracle Flash Accelerator F160 PCIe Card and 1.6TB NVMe SSD Documentation.
