Hitachi HUC101860CSS200 (600.0GB)

2 1/2" 10000 RPM 12Gb/Sec Serial Attached SCSI

<a href="../../Systems/SupportHeaders/DISK_Htchi_HUC101860CSS200.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7093013 7093015 7093029

15mm Height
Cobra-F
Specification 7093014 Marlin Bracket FRU
15mm Bkt 541-2123
PTO 7111103 Evo Bracket FRU
Bracket 7044311

7337223 7331569 7340210

SL4000 HDD-600GB
LOH PCA 7337222 Marlin Bracket FRU
15mm Bkt 541-2123
Pre-programmed for OKM3 Coral-Dory Bkt FRU
2.5" Adapter 7042920
3.5" Bracket 7042920
or 3.5" Bracket 7343235
Left Bracket 7042923

Notes

Drive 7093013 was released in December 2014. (E0023170)
Assemblies 7093015 and 7093029 with 7093013 were released in December 2014. (E0023170)
Assembly 7331569 with 7093013 was released in March 2016. (E0029329)
Assembly 7340210 with 7093013 was released in December 2016. (M0015265)
Assembly 7337223 with 7093013 was released in July 2017. (E0031061)

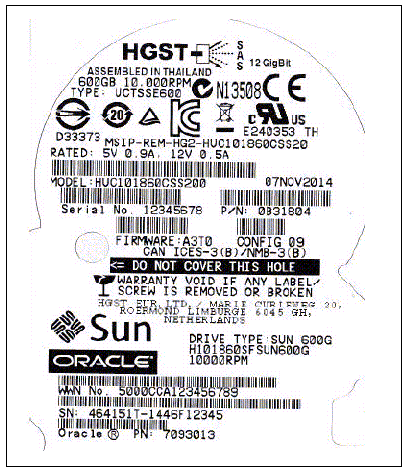

The Hitachi model number on the serial number label is HUC101860CSS200.
The Oracle model number on the serial number label is H101860SFSUN600G.
The Product Identification in SCSI Inquiry bytes 16-31 is H101860SFSUN600G.
