Notes

  1. Drive 7351439 was released in July 2017. (E0035607)
  2. Drive 7351439 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Assemblies 7351735 and 7352214 with drive 7351439 were released in July 2017. (E0035607)

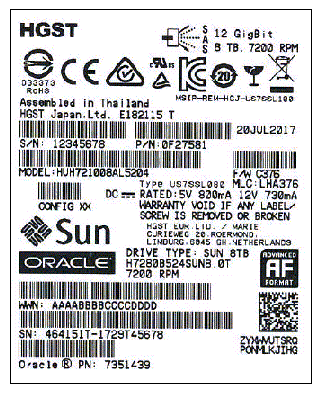

  4. The manufacturers model number on the serial number label is HUH721008AL5204.
  5. The Oracle Model Number on the serial number label is H7280B524SUN8.0T.
  6. The Product Identification in SCSI Inquiry bytes 16-31 is H7280B524SUN8.0T.


HGST HUH721008AL5204 (8.0TB)

3 1/2" 7200 RPM 12Gb/Sec Serial Attached SCSI

7351439 7351735 7352214
1" Height
HGST Libra
T10 PI Type 1
Specification 7351440
Secure Erase Over-Write Only
Non-Encrypted for EAEU Countries		 Coral Bracket Assy
3.5" Bracket 7308501
or 3.5" Bracket 7343235
PTO 7118671		 Heron Bracket Assy
3.5" Bracket 7096032
