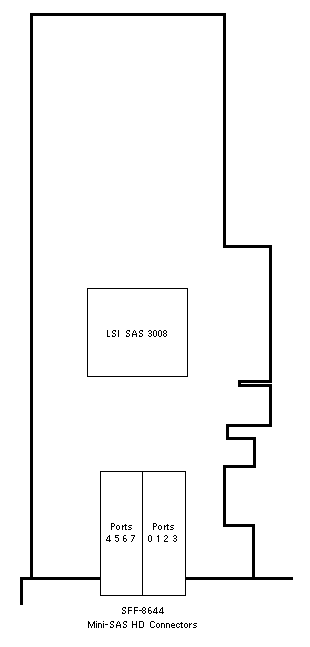

8-Port 12Gbps SAS-3 HBA (External)

Codename: Estes-EXT

Option 7110119

7085208
LSI/Avago SAS 9300-8e PCI Express x8 Gen3

Notes

1. Low Profile Bracket 240-7514 is included.
2. PCI Identifiers are Vendor ID 0x1000, Device ID 0x0097, Subsystem Vendor ID 0x1000, and Subsystem Device ID 0x30A0.
3. Vital Product Data VPD=PN is 7085208.

SPARC M7 Notes

1. SPARC M7 Series servers require firmware 09.00.00.00 or higher.
   See article 2076387.1 for details.

Fujitsu M10 Notes

1. Fujitsu M10 servers require firmware 6:00:02:00 or higher.
   See article 2047847.1 for details.

References

1. Oracle Storage 12 Gb/s SAS PCIe HBA Documentation.
