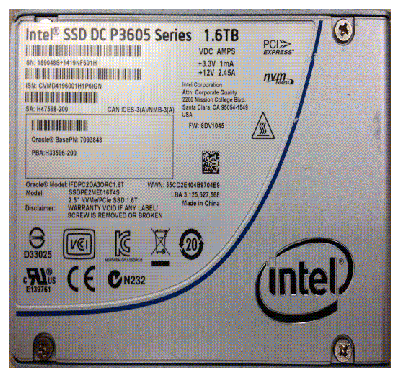

1.6TB Solid-State Drive
Intel SSDPE2ME016T4SP

2 1/2" Solid State x4 PCI Express Gen 3

7093848 7093931 7302552
DC P3605 Series
Fultondale-7 SFF		 Marlin Bracket Assy
15mm Bkt 541-2123
PTO Option 7110927
Inactivated		 Marlin Bracket Assy
15mm Bkt 541-2123
Option 7111370

Notes

  1. The product codename is Aura 3 NVMe.
  2. Drive 7093848 was released in August 2014. (M0010026)
  3. Assembly 7093931 with 7093848 was released in August 2014. (M0010026)
  4. Assembly 7093931 with 7093848 was inactivated in October 2014. (E0022587)
  5. Assembly 7302552 with 7093848 was released in October 2014. (E0022587)
  6. The Intel model number on the serial number label is SSDPE2ME016T3SP.
  7. The Oracle model number on the serial number label is IFDPC2DA3ORC1.6T.
  8. PCI Identifiers are:
    Vendor ID 0x8086, Device ID 0x0953, Subsystem Vendor ID 0x108E,
    Subsystem Device ID 0x370c, Model Number SSDPE2ME016T4S,
    and Oracle Model Number IFDPC2DA30RC1.6T.
  9. Vital Product Data VPD=PN is 7093848.

References

  1. Oracle Flash Accelerator F160 PCIe Card and 1.6TB NVMe SSD Documentation.
