800GB Solid-State Drive
HGST HUSMM3280ASS200

2 1/2" Solid State Serial Attached SCSI 12.0Gb/Sec

7330684 7330686 7342450
HGST Bearcove
Medium Endurance
T10 PI Type 1
Specification 7330685		 Marlin Bracket FRU
15mm Bkt 541-2123		 Coral-Dory Bracket Assy
2.5" Adapter 7042920
3.5" Bracket 7050989 or 7343235
Left Bracket 7042923

Notes

  1. Drive 7330684 was released in January 2017. (E0031147)
  2. Drive 7330684 is formatted to T10 Device Protection Type 1 (byte 12 = 1).
  3. Raw NAND Capacity is 1280GB. The drive is Over-Provisioned by 60%.
    Over-Provision formula 1280GB-800GB/800GB = 0.60.
  4. Assembly 7330686 with 7330684 was released in January 2017. (E0031147)
  5. Assembly 7342450 with 7330684 was released in January 2017. (E0031147)

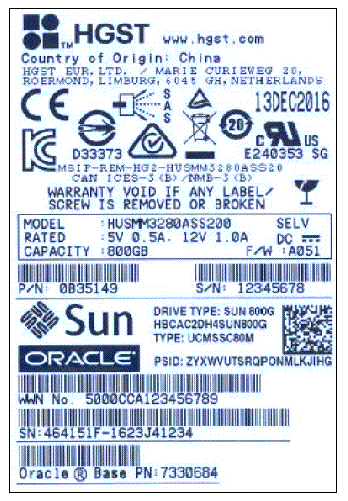

  6. The HGST model number on the serial number label is HUSMM3280ASS200.
  7. The Oracle model number on the serial number label is HBCAC2DH4SUN800G.
  8. The Product Identification in SCSI Inquiry bytes 16-31 is HBCAC2DH4SUN800G.
