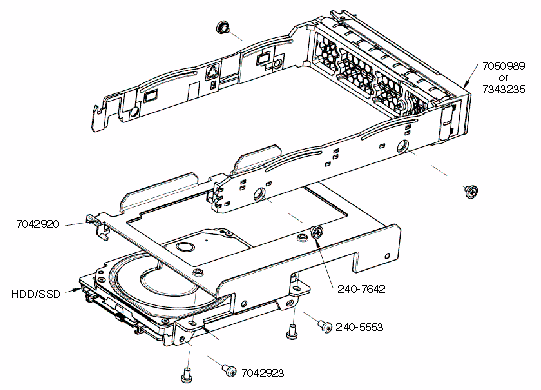

Coral-Dory Bracket

7042920 7042923 7050989 7343235
2.5" Bracket
June 2012
(M0004668)
Left Bracket
June 2012
(M0004668)
3.5" Bracket
October 2012
(M0004778)
3.5" Bracket
December 2016
(E0033228)

Notes

  1. The Coral-Dory Bracket adapts a 2.5" HDD or SSD for use in a 3.5" drive bay.
  2. The Coral-Dory Bracket does not have an assembly part number.
  3. Deviation D0003061 in April 2014 allowed the use of Lightpipes that were out of alignment.
    Drives with these Lightpipes have status lights that are difficult to read.
