Sun SPARC Enterprise M5000 Server - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Backplane/Centerplane
Option #
Manufacturing
Description
Previous
n/a
541-0493 [F]
Power and I/O Backplane
n/a
n/a
541-0848 [F]
Fan Backplane (172mm Fans)
n/a
n/a
541-1145 [F]
DVD Backplane
n/a
n/a
541-1146 [F]
DAT Backplane
n/a
n/a
541-3099 1
[F]
Fan Backplane (172mm Fans)
541-0848 [F]
n/a
541-4232 [F]
SATA DVD Backplane
n/a
n/a
7047358 [F]
Power and I/O Backplane
n/a
n/a
7047425 [F]
Fan Backplane (172mm Fans)
n/a
1 Fan Backplane 541-3099 requires Firmware XCP1071 or higher. See BugID 15453785 [SUNBT6655686].
CPU Module
Option #
Manufacturing
Description
Previous
SELX1A1P
[S]
375-3477 [F]
2 × SPARC64 VI 2.1GHz CPU Module
n/a
SELX1A1Z
[S]
375-3477 [F]
2 × SPARC64 VI 2.1GHz CPU Module
n/a
SELX1B1Z
[S]
375-3568 [F]
2 × SPARC64 VII 2.4GHz CPU Module
n/a
SELX1C1Z
[S]
371-4615 [F]
2 × SPARC64 VII 2.53GHz CPU Module
n/a
SELX1D1Z
[S]
371-4932 [F]
2 × SPARC64 VII+ 2.66GHz CPU Module
n/a
Cables
Option #
Manufacturing
Description
Previous
SELX9P21P Buy
180-2004 [C]
AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M
n/a
SELX9P11P
[S]
180-2005 [C] Buy
AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M
n/a
SELX9P11Z
[S]
180-2005 [C] Buy
AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M
n/a
SELX9P21Z
[S]
180-2004 [C]
AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M
n/a
SELX9P31P
[S]
180-2097
2.5 Meter Rack Jumper Power Cable
n/a
SELX9P31Z
[S]
180-2097
2.5 Meter Rack Jumper Power Cable
n/a
SELX9P41P
[S]
10187021
Power Cable,NEMA5-15 To C19,Main Library Power
n/a
SELX9P41Z
[S]
10187021
Power Cable,NEMA5-15 To C19,Main Library Power
n/a
SELX9P51P
[S]
180-2309
13A, IEC60320 Sheet E to IEC60320-C19, 2.5M
n/a
SELX9P51Z
[S]
180-2309
13A, IEC60320 Sheet E to IEC60320-C19, 2.5M
n/a
SELX9P61P
[S]
180-2421
[C]
IEC 320 C19 to IRAM 2073, 16A/250V, 4.0M, Black
n/a
SELX9P61Z
[S]
180-2421
[C]
IEC 320 C19 to IRAM 2073, 16A/250V, 4.0M, Black
n/a
SELX9P71Z
[S]
180-2099 [C]
Power Cord Jumper, 3.5M 20 Amp, IEC 320 C19 to IEC 320 Sheet I
n/a
SELX9P81Z
[S]
180-2453
AC Input Power Cord, European, CEE7/7 to IEC320-C19, 4.0M
n/a
SELX9P91Z
[S]
180-2095
Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M)
n/a
n/a
530-3100
[C]
RJ45F to DB9F Adapter
n/a
n/a
530-3885
RJ45F to DB9F Adapter
n/a
n/a
537-1077 [F]
Copper Cable 3M (for External I/O Expansion Unit)
n/a
n/a
7040686 [C]
Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M)
180-2095
n/a
7040689 [C]
16A IEC 320 C19 to IEC 320 Sheet I Cord, 2.5M
180-2097
n/a
7040702 [C]
AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m
180-2004 [C]
n/a
n/a
AC Input Cord, USA, Canada, IEC 320 C19 to NEMA 5-15P, 2.5 Meter
n/a
Communication
Option #
Manufacturing
Description
Previous
X1355A-2
[S]
371-0982
2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable
n/a
375-3296
[F]
Quad Port High Speed Serial Interface PCI-X (HSI/U)
n/a
X2156A-2
[S]
375-3420
[F]
Serial Asynchronous Interface PCI (SAI/P) 3.0
n/a
X4237A
[S]
375-3606
[F]
Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express
n/a
X4242A
[S]
7092767
[F]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
375-3696
[F]
X6000A 2
[S]
375-3424
[F]
PCI Express Sun Crypto Accelerator 6000
n/a
n/a
375-3696
[F]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a
2 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
541-0845 [F]
Disk Backplane Assembly
n/a
Disks
Option #
Manufacturing
Description
Previous
7100410
[S]
7012423 [C]
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Nemo Bracket with Insulator
n/a
SELX3C12Z
[S]
541-4283 [C]
146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
n/a
Nemo Bracket with Insulator
n/a
SELX3E11Z
[S]
540-7903 3
4
[C]
300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9300603SS [ST930003SSUN300G] n/a
Hitachi HUC103030CSS600 [H103030SCSUN300G] n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Nemo Bracket with Insulator
n/a
SELX3F11Z
[S]
542-0338 [C]
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Nemo Bracket with Insulator
n/a
SEPX3A11Z
[S]
540-7307 [C]
73GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
n/a
Seagate ST973401SS [ST973401SSUN72G] n/a
Seagate ST973402SS [ST973402SSUN72G] n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G] n/a
n/a
SEPX3C11Z
[S]
540-7777 [C]
146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
540-7151 [C]
Seagate ST9146802SS [ST914602SSUN146G] n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
n/a
Nemo Bracket with Insulator
n/a
n/a
540-7151 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
n/a
Nemo Bracket with Insulator
n/a
3 Disk 390-0449 was discontinued in new builds of assembly 540-7903 in July 2011.4 390-0451-03 used in place of 390-0449-05 as per deviation D0002191 (and extended by deviation D0002464)
Ethernet
Option #
Manufacturing
Description
Previous
7105381
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422
[F]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[F]
7105382
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423
[F]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[F]
SG-XPCIEFCOE2-Q-SR
[S]
7053422
[F]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[F]
SG-XPCIEFCOE2-Q-TA
[S]
7053423
[F]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[F]
X1027A-Z
[S]
7054890
[F]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[F]
X1106A-Z
[S]
375-3585
[F]
Intel PRO/10GbE-SR x8 PCI Express
n/a
X1107A-Z
[S]
375-3586
[F]
Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket
n/a
X4447A-Z
[S]
371-2348
Bracket Standard
n/a
7055021
[F]
Quad Port GbE PCI Express, UTP
511-1422
[F]
+
n/a
X5558A
[S]
7058828
[F]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[F]
X5560A-Z
[S]
375-3495
[F]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
X7280A-2
[S]
371-0905
[F]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
[S]
7056733
[F]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[F]
n/a
371-0904
[F]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3301
[F]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
n/a
n/a
375-3681
[F]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[F]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
501-7283
[F]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
n/a
501-7606
[F]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
n/a
n/a
511-1422
[F]
Quad Port GbE PCI Express, UTP
501-7606
[F]
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
541-0573 [F]
172mm Fan Module, Fan_A
n/a
n/a
541-3447 [F]
172mm Fan Module, Fan_A
541-0573 [F]
Fibre Channel
Option #
Manufacturing
Description
Previous
7105389
[S]
Gigabit/Sec PCI Express Dual FC Host Adapter for EU Countries
7053427
[F]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
7105390
[S]
4Gigabit/Sec PCI Express Single FC Host Adapter for EU Countries
7053428
[F]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7105391
[S]
8Gigabit/Sec PCI Express Single FC Host Adapter
7053433
[F]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCI1FC-EM4-Z
[S]
375-3398
[F]
4Gb PCI-X Single FC Host Adapter
n/a
SG-XPCI1FC-QF4
[S]
375-3354
[F]
4Gb PCI-X Single FC Host Adapter
n/a
SG-XPCI2FC-EM4-Z
[S]
7058528
[F]
4Gb PCI-X Dual FC Host Adapter
375-3399
[F]
SG-XPCI2FC-QF4
[S]
7060890
[F]
4Gb PCI-X Dual FC Host Adapter
375-3294
[F]
SG-XPCIE1FC-EM4
[S]
375-3396
[F]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053428
[F]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-EM8-Z
[S]
371-4295
[F]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053433
[F]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF4
[S]
375-3355
[F]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF8-Z
[S]
371-4324
[F]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE2FC-EM4
[S]
375-3397
[F]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
7053427
[F]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-EM8-Z
[S]
7053434
[F]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[F]
SG-XPCIE2FC-QF4
[S]
375-3356
[F]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-QF8-Z
[S]
371-4325
[F]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[F]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
375-3294
[F]
4Gb PCI-X Dual FC Host Adapter
n/a
n/a
375-3399
[F]
4Gb PCI-X Dual FC Host Adapter
n/a
Graphics
Option #
Manufacturing
Description
Previous
X3000A
[S]
375-3545
[F]
XVR-300 x8 Graphics Accelerator
n/a
530-3474 [F]
DVI-A(M) to HD15F Adapter, 49mm
n/a
530-3998 5
[F]
DMS-59 to Dual DVI-I Cable, 215mm
n/a
X3777
[S]
375-3433
[F]
XVR-200 Graphics Accelerator
n/a
X7296A
[S]
375-3290
6
[F]
XVR-100 Graphics Accelerator (64MB)
n/a
5 Sun custom overmold to fit systems using the Jake and Elwood chassis.6 Refer to FAB article 1001156.1 fuzzy or blurry video with the XVR-100 Graphics Accelerator.
I/O
Option #
Manufacturing
Description
Previous
SEFX61P
[S]
541-0929 [F]
PCI Express Cassette
n/a
541-0933 [F]
PCI-X Cassette
n/a
541-2240 [F]
I/O Unit (IOU)
n/a
1.2V DC-DC Converter, DDC_A n/a
7047355 [F]
I/O Unit (IOU)
n/a
1.2V DC-DC Converter, DDC_A n/a
SEFX61Z
[S]
541-0929 [F]
PCI Express Cassette
n/a
541-0933 [F]
PCI-X Cassette
n/a
541-2240 [F]
I/O Unit (IOU)
n/a
1.2V DC-DC Converter, DDC_A n/a
SELX8LK1P
[S]
Fibre Link Card Kit w/ 2 × Cards & 2 × 10M Cables (for External I/O Expansion Unit)
7056243
[F]
Copper Link Card
501-7041
[F]
7060403 [F]
Copper Link Cable, 4M
530-3965 [F]
+
537-1077 [F]
SELX8LK1Z
[S]
Copper Link Card Kit w/ 2 × Cards & 4M Cable
501-7041
[F]
Copper Link Card
n/a
7060403 [F]
Copper Link Cable, 4M
530-3965 [F]
+
537-1077 [F]
SENX8FC1Z
[S]
537-1100 [F]
Fibre Link Cable 10M
n/a
SENX8FC2Z
[S]
537-1070 [F]
Fibre Link Cable 25M
n/a
SENX8LK2P
[S]
Fibre Link Card Kit w/ 2 × Cards & 2 × 10M Cables (for External I/O Expansion Unit)
537-1100 [F]
Fibre Link Cable 10M
n/a
7056242
[F]
Fibre Link Card
501-7040
[F]
SENX8LK2Z
[S]
596-6258
Fibre Link Card Kit w/ 2 × Cards & 2 × 10M Cables (for External I/O Expansion Unit)
n/a
n/a
SENX8LK3Z
[S]
596-6228
Fibre Link Card Kit w/ 2 × Cards & 2 × 25M Cables (for External I/O Expansion Unit)
n/a
n/a
XMP10C-S
[S]
Copper Link Card Kit w/ 2 × Cards & 3M Cable (for External I/O Expansion Unit)
501-7041
[F]
Copper Link Card
n/a
7060403 [F]
Copper Link Cable, 4M
530-3965 [F]
+
537-1077 [F]
n/a
530-3965 [F]
Copper Link Cable, 4M
537-1077 [F]
n/a
7056255
Copper Link Card
n/a
501-7041
[F]
Memory
Option #
Manufacturing
Description
Previous
SELX2A1Z
[S]
8 × 1GB Memory Module
371-1899
[F]
1GB DDR2-533/DDR2-667 1-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2B1Z
[S]
8 × 2GB Memory Module
371-1900
[F]
2GB DDR2-533 / DDR2-667 2-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2B2P
[S]
8 × 2GB Memory Module
541-4593 [F]
Memory Board
n/a
7050281
[F]
2GB DDR2-667 1-Rank DIMM
n/a
SELX2B2Z
[S]
8 × 2GB Memory Module
371-4236
[F]
2GB DDR2-667 1-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2C1P
[S]
8 × 4GB Memory Module
541-4593 [F]
Memory Board
n/a
7050282
[F]
4GB DDR2-667 2-Rank DIMM
n/a
SELX2C1Z
[S]
8 × 4GB Memory Module
371-1901
[F]
4GB DDR2-667 2-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2D1P
[S]
8 × 8GB Memory Module
371-4476
[F]
8GB DDR2-667 2-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2D1Z
[S]
8 × 8GB Memory Module
371-4476
[F]
8GB DDR2-667 2-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2E1Z
[S]
4 × 1GB Memory Module
371-1899
[F]
1GB DDR2-533/DDR2-667 1-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2EX1Z
[S]
4 × 1GB Memory Expansion X-option
371-1899
[F]
1GB DDR2-533/DDR2-667 1-Rank DIMM
n/a
SELX2F2P
[S]
4 × 2GB Memory Module
541-4593 [F]
Memory Board
n/a
7050281
[F]
2GB DDR2-667 1-Rank DIMM
n/a
SELX2F2Z
[S]
4 × 2GB Memory Module
371-4236
[F]
2GB DDR2-667 1-Rank DIMM
n/a
541-0545
[F]
Memory Board
n/a
SELX2FX2P
[S]
4 × 2GB Memory Expansion X-Option
7050281
[F]
2GB DDR2-667 1-Rank DIMM
n/a
SELX2FX2Z
[S]
4 × 2GB Memory Expansion X-Option
371-4236
[F]
2GB DDR2-667 1-Rank DIMM
n/a
NOTE: 1-Rank and 2-Rank DIMMs cannot be mixed in the same memory group. For further
information, see How To article 1019113.1 .
Miscellaneous
Option #
Manufacturing
Description
Previous
SEFX9FL1P
[S]
565-1900 [F]
M5000 Air Filter Kit
n/a
n/a
n/a
SEFX9FL1Z
[S]
565-1900 [F]
M5000 Air Filter Kit
n/a
n/a
n/a
n/a
541-0850 [F]
Operator Panel
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
300-2009 10
[F]
1.2V DC-DC Converter, DDC_A
n/a
n/a
300-2010
3.3V DC-DC Converter, DDC_B [SKU]
n/a
n/a
300-2011 [C]
Type A202 AC Input Power Supply
n/a
n/a
300-2311 [C]
Type A202 AC Input Power Supply
n/a
n/a
501-7647 [F]
IOB DC-DC Converter Riser, DDCR
n/a
3.3V DC-DC Converter, DDC_B 300-2010
n/a
7047362 [F]
IOB DC-DC Converter Riser, DDCR
n/a
3.3V DC-DC Converter, DDC_B 300-2010
n/a
7047619 [C]
Type A202 AC Input Power Supply
300-2311 [C]
10 DDC_A is a valid FRU on an IOU only. On a MBU_B the FRU is the complete
MBU_B.11 300-2363 replaces 300-2010 in assembly 501-7647
(E0003376)
12 300-2363 replaces 300-2010 in assembly 501-7647
(E0003376)
Rack
Option #
Manufacturing
Description
Previous
XRACK-EXTEND38RU
[S]
341-3043
38RU Rack Extension
n/a
XRACK-EXTEND42RU
[S]
341-3044
42RU Rack Extension
n/a
n/a
371-0095 [F]
M5000 Rack Mount Kit
n/a
Removable Media
Option #
Manufacturing
Description
Previous
SELX9DT1Z
[S]
263-3537
DAT Removal Tool
n/a
541-0846
DAT72 Tape Drive Assembly
n/a
541-3852
DAT72 Tape Drive Assembly
n/a
n/a
F541-0846 [F]
DAT72 Tape Drive Assembly
n/a
n/a
DAT72 Tape Drive Assembly n/a
DAT72 Tape Drive Assembly n/a
n/a
F541-0847 [F]
DVD Assembly
n/a
n/a
n/a
n/a
F541-3451 [F]
DVD Assembly [SKU]
n/a
n/a
n/a
F541-3852 [F]
DAT72 Tape Drive Assembly
n/a
n/a
DAT72 Tape Drive Assembly n/a
n/a
F541-4271 [F]
SATA DVD Assembly
n/a
Slot-Load 8x DVD-ROM Writer / 24-x CD-ROM Writer n/a
SCSI
Option #
Manufacturing
Description
Previous
7105384
[S]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter for EU Countries
7050790
[F]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[F]
7105387
[S]
8-Port 6Gbps SAS-2 PCI Express HBA
7047853
[F]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[F]
SG-XPCIE2SCSIU320Z
[S]
7050790
[F]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[F]
SG-XPCIE8SAS-E-Z
[S]
7050793
[F]
PCI Express 8-Port Host Adapter
375-3487
[F]
SGX-SAS6-EXT-Z
[S]
7047853
[F]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[F]
SGXPCI2SCSILM320-Z
[S]
7050788
[F]
[S]
PCI/PCI-X Dual Ultra320 SCSI Adapter
375-3365
15
16
[F]
[S]
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [F]
Lithium Ion Battery Module
n/a
375-3537
[F]
8-Port SAS RAID External HBA
n/a
XTA-FAS-S3IE96GB 18
[S]
541-3731
96GB PCI Express Flash Accelerator F20 SAS HBA
n/a
Energy Storage Module (ESM) n/a
n/a
24GB Solid State Flash Memory Module, FW D21Y
371-4415
[F]
n/a
371-4415
[F]
24GB Solid State Flash Memory Module
n/a
n/a
375-3357
[F]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3487
[F]
PCI Express 8-Port Host Adapter
n/a
n/a
375-3641
[F]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3365
13
14
[F]
[S]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
13 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .14 375-3365 is not supported in the M4000 or M5000 internal I/O Unit (IOU) after 04/01/08.15 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .16 375-3365 is not supported in the M4000 or M5000 internal I/O Unit (IOU) after 04/01/08.17 Previous and substitute part 511-1275 is not supported18 Requires XCP 1102
System Board
Option #
Manufacturing
Description
Previous
SELX4002Z
[S]
M5000 Motherboard Upgrade to SPARC64 VII+ 2.66GHz
7047351 [F]
Motherboard Cage (MOBO2/MBU_B_2) includes motherboard 7048160
n/a
1.2V DC-DC Converter, DDC_A n/a
3.3V DC-DC Converter, DDC_B [SKU] n/a
n/a
541-0478 [F]
Motherboard Cage (TMOBO/MBU_B) includes motherboard 501-7670
n/a
1.2V DC-DC Converter, DDC_A n/a
3.3V DC-DC Converter, DDC_B [SKU] n/a
n/a
541-4360 [F]
Motherboard Cage (MOBO2/MBU_B_2) includes motherboard 511-1601
n/a
1.2V DC-DC Converter, DDC_A n/a
3.3V DC-DC Converter, DDC_B [SKU] n/a
19 DDC_A is a valid FRU on an IOU only. On a MBU_B the FRU is the complete
MBU_B.20 DDC_A is a valid FRU on an IOU only. On a MBU_B the FRU is the complete
MBU_B.21 DDC_A is a valid FRU on an IOU only. On a MBU_B the FRU is the complete
MBU_B.
System Service Processor
Option #
Manufacturing
Description
Previous
n/a
541-0481 [F]
eXtended System Control Facility Unit, XSCFU
n/a
n/a
7047312 [F]
eXtended System Control Facility Unit, XSCFU
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

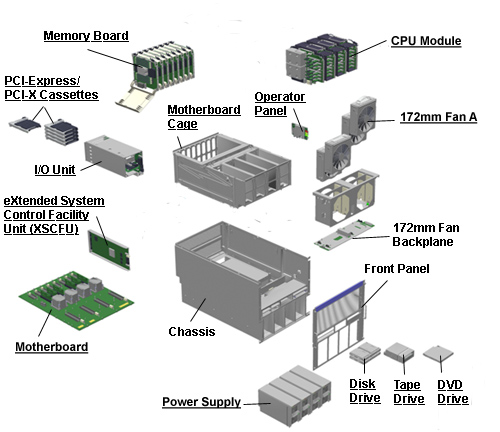

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
330-4276
CPU Board Filler Panel
NS
330-4319
Memory Filler Panel
NS
330-4970 22
Memory Filler Panel
NS
530-3414 [F]
Operator Panel to Fan Backplane Cable
NS
530-3415 [F]
Operator Panel to Keyswitch Cable
NS
NS
530-3416 [F]
Power, Media, Fan Backplane Cable
NS
530-3418 [F]
Signal, Fan Backplane, I/O Backplane Cable
NS
530-3420 [F]
SAS/SATA, DAT/HDD Cable
NS
530-3421 [F]
SAS/SATA, DVD/HDD Cable
NS
530-3424 [F]
AC Input Cable
NS
530-3447 [F]
Ground Cable
NS
541-0605 [F]
Blank Disk Drive Filler
NS
541-1448
DAT Filler Panel
NS
541-1501
I/O Unit Filler Panel
NS
541-3488 23
I/O Unit Filler Panel
22 Replaces 330-431923 Replaces 541-1501
