Sun SPARC Enterprise M4000/M5000

Options SELX2A1Z / SELX2B1Z / SELX2E1Z / SELX2B2Z
Options SELX2C1Z / SELX2F2Z / SELX2FX2Z

371-1899	371-1900	371-4236
1GB 1-Rank DDR2-533/667 512Mbit SDRAM 4GB Option = SELX2E1Z 8GB Option = SELX2A1Z	2GB 2-Rank DDR2-533/667 512Mbit SDRAM 16GB Option = SELX2B1Z	2GB 1-Rank DDR2-667 1Gbit SDRAM 16GB Option = SELX2B2Z 8GB Option = SELX2F2Z 8GB Option = SELX2FX2Z

371-1901	371-4476	7050281	7050282
4GB 2-Rank DDR2-667 1Gbit SDRAM 32GB Option = SELX2C1Z	8GB 2-Rank DDR2-667 2Gbit SDRAM 64GB Option = SELX2D1Z	DDR2-667/PC2-530 1-Rank/1Gbit SDRAM 2GB 7050282 16GB Option	DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 4GB 7050282 32GB Option

---

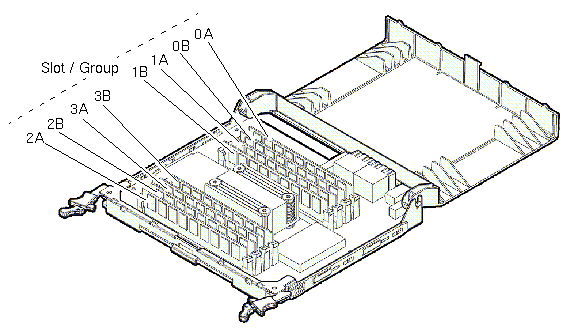

Memory Board 541-0545 (cover opened)

Notes

1. 1-Rank and 2-Rank DIMMs cannot be mixed in the same memory group.
2. For further information, see How To article 1019113.1.
3. Use the XSCF showhardconf command to display the DIMM Type.
   The DIMM Type field shows the Size (1/2/4/8) and Rank (A=1-Rank or B=2-Rank).
   See Chapter 11 in the Service Manual.

References

1. SPARC Enterprise M4000/M5000 Servers Service Manual, 819-2210.
2. SPARC Enterprise M4000/M5000 Servers Installation Guide, 819-2211.
3. Refer to M4000/M5000 Hardware Documentation for Product Notes for different XCP versions.
