Sun Server X4-2 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-3993 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7020774 [F] Pre-Greased CPU Heatsink n/a
n/a 7026168 CPU Installation/Removal Tool n/a
n/a 7069232 [F] 2.7GHz 12-Core Intel Xeon E5-2697 v2, 130W n/a
n/a 7069239 [F] 3.0GHz 10-Core Intel Xeon E5-2690 v2, 130W n/a
n/a 7069240 [F] 2.6GHz 8-Core Intel Xeon E5-2650 v2, 95W n/a
n/a 7069242 [F] 2.6GHz 6-Core Intel Xeon E5-2630 v2, 80W n/a
n/a 7069243 [F] 2.5GHz 4-Core Intel Xeon E5-2609 v2, 80W n/a
n/a 7082521 CPU Installation/Removal Tool n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
7102869 Buy 7039990 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 10M n/a
7102870 Buy 7039999 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 20M n/a
7102871 Buy 7040001 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 50M n/a
7105199 Buy 7063849 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M n/a
7105206 Buy 7063852 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M n/a
X2121A-1M-N Buy 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
X2121A-2M Buy 530-4567 [C] 10Gbps QSFP to QSFP Cable, 2m n/a
X2121A-3M-N Buy 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
X2121A-5M-N Buy 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
X2130A-1M-N Buy 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
X2130A-3M-N Buy 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
X2130A-5M-N Buy 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
X333V-20-15-C14-N Buy 7040692 [C] IEC 320 Sheet E to IEC 320 C13, 10A/250V, 2M n/a
X333V-30-15-C14-N Buy 7040693 [C] IEC 320 Sheet E to IEC 320 C13, 10A/250V, 3M 180-2443 [C]
X9237-1-A-N Buy 180-2082 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 1.0M n/a
X9238-1-A-N Buy 180-2085 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 2.5M n/a
n/a 180-2164 [C] Buy IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black n/a
n/a 180-2443 [C] IEC 320 C13 to IEC 320 Sheet E - 15A/250V 3.0M n/a
n/a 7019614 [F] Cable Kit n/a
  • 530-4537
  • Disk Drive Flex Cable
 n/a
  • 7014918
  • Dual Backplane Power Cable
 n/a
  • 7014919
  • Single Backplane Power Cable
 n/a
  • 7019726
  • Interlock Switch Cable
 n/a
  • 7020903
  • Disk Data Cable, SFF-8087 to SFF-8643, 620mm
 n/a
  • 7027302
  • Front Indicator Module Cable
 n/a
  • 7041996
  • Disk Data Cable, SFF-8087 to SFF-8643, 650mm
 n/a
  • 7309766
  • Disk Drive Flex Cable
 n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
7104074 Buy 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 7046442 [C]
n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 597-1118 8-Slot 2.5" Disk Cage n/a
  • 7039833
  • 8-Slot 2.5" Disk Cage Assembly
 n/a
    • 350-1692
    • Disk Cage Cover
 n/a
    • 530-4537
    • Disk Drive Flex Cable
 n/a
    • 7014918
    • Dual Backplane Power Cable
 n/a
    • 7027302
    • Front Indicator Module Cable
 n/a
    • 4-Slot 2.5" Disk Backplane Assembly
 n/a
      • 4-Slot 3.5" Disk Backplane
 n/a
      • 7049472
      • 2.5" Lightpipe Assembly
 n/a
    • 7051152
    • Disk Cage
 n/a
    • 7086632 [F]
    • 2.5" Disk Cage Front Indicator Module
 7039841 [F]
    • 7309766
    • Disk Drive Flex Cable
 n/a
  • 7041996
  • Disk Data Cable, SFF-8087 to SFF-8643, 650mm
 n/a
n/a 7039834 4-Slot 2.5" Disk Cage Assembly n/a
  • 350-1827
  • Disk Cage Cover
 n/a
  • 530-4537
  • Disk Drive Flex Cable
 n/a
  • 7014919
  • Single Backplane Power Cable
 n/a
  • 7027302
  • Front Indicator Module Cable
 n/a
  • 4-Slot 2.5" Disk Backplane Assembly
 n/a
    • 4-Slot 3.5" Disk Backplane
 n/a
    • 7049472
    • 2.5" Lightpipe Assembly
 n/a
  • 7039841 [F]
  • 2.5" Disk Cage Front Indicator Module
 n/a
  • 7309766
  • Disk Drive Flex Cable
 n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7111108 Buy 7093037 [C] 1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
n/a
  • Marlin 2.5" Bracket
 n/a
7106617 [S] 7045850 [C] 1.2TB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)
n/a
  • Marlin 2.5" Bracket
 n/a
7107550 [S] 7077233 [C] 400GB Solid State SATA Drive Assembly n/a
  • 400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G]
n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-600G10K2 [S] 542-0287 [C] Buy 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; n/a
  • Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)
 n/a
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRB-SS2CF-300G10K2 [S] 542-0388 [C] Buy 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7350766 [C] [A] 1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
7100477 Buy 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
7100481 Buy 7070202 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF 7014747 [C]
7100488 Buy 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
X1109A-Z Buy 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
X2129A-N Buy 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
X5562A-Z Buy 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
X2124A [S] 7326504 [C] 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver 135-1204 [C]
n/a 135-1204 [C] 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver n/a
n/a 7014747 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7013526 [C] Dual Counter Rotating Fan Module n/a
  • 371-4787
  • 40×56mm Dual Counter Rotating Fan
 n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
7101674 Buy 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
7101676 Buy 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101678 Buy 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101680 Buy 7023066 [C] Pair of 16Gbps Long Wave SFP+ n/a
  • 16Gb/Sec Long Wave SFP+ Transceiver, QLogic
 n/a
7101684 Buy 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
7101686 Buy 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
7101688 [S] 7023057 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
SG-XPCIE2FC-EM8-N [S] 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex n/a
SG-XPCIE2FC-QF8-N [S] 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7048707 [C] 2-Slot PCI Express Riser Assembly n/a
  • 541-4684
  • Mounting Bracket
 n/a
  • 2-Slot PCI Express Riser
 n/a
n/a 7048710 [C] 1-Slot PCI Express Riser Assembly n/a
  • 7016035
  • Mounting Bracket
 n/a
  • 1-Slot PCI Express Riser
 n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
7100790 [S] 7020486 [C] 8GB DDR3-1600 DIMM, 1.35V n/a
7100794 [S] 7018701 [C] 16GB DDR3-1600 DIMM, 1.35V n/a
7106548 [S] 7071891 [C] 32GB DDR3L-1600 1.35V Load Reduced DIMM n/a
n/a 7038488 [C] 4GB USB 2.0 Flash Drive n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7060951 3 [C] A256 600 Watt AC Input Power Supply n/a
n/a 7079395 [C] Type A256 600 Watt AC Input Power Supply 7060951 4 [C]
3 No longer available. Purged from inventory by GSAP 6239 in March 2014.
4 No longer available. Purged from inventory by GSAP 6239 in March 2014.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
XSR-JUMP-1MC13-N Buy 7015399 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M 180-2379 [C]
XSR-JUMP-2MC13-N Buy 7015400 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M 180-2380 [C]
n/a 180-2379 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M n/a
n/a 180-2380 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M n/a
n/a 350-1719 [C] 1U/2U Snap-In Slide Rail Rackmount Kit n/a
n/a 7042273 [C] 1U/2U Cable Management Arm (Snap-in) n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-4688 5 [C] Slot-Load DVD Assembly n/a
  • 7020884
  • DVD Mounting Tray
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
n/a 7081551 [C] Tray-Load DVD Assembly n/a
  • 7071296
  • 8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer
 n/a
  • 7081553
  • DVD Tray
 n/a
5 541-4688 is available in the 4-Slot 2.5" Disk Cage Assembly
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
7105387 [S] 8-Port 6Gbps SAS-2 PCI Express HBA
7047853 [F] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
SGX-SAS6-EXT-Z [S] 7047853 [F] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
SGX-SAS6-INT-Z [S] 7047852 [F] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
SGX-SAS6-R-INT-Z [S] 7047503 [C] 8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC n/a
7050794 [C] 6Gbps SAS-2 RAID PCI Battery Module, BBU08 n/a
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7058153 [F] X4-2 System Board Assembly n/a
  • 350-1832
  • System Board Tray
 n/a
  • 7019726
  • Interlock Switch Cable
 n/a
  • 7046330
  • System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

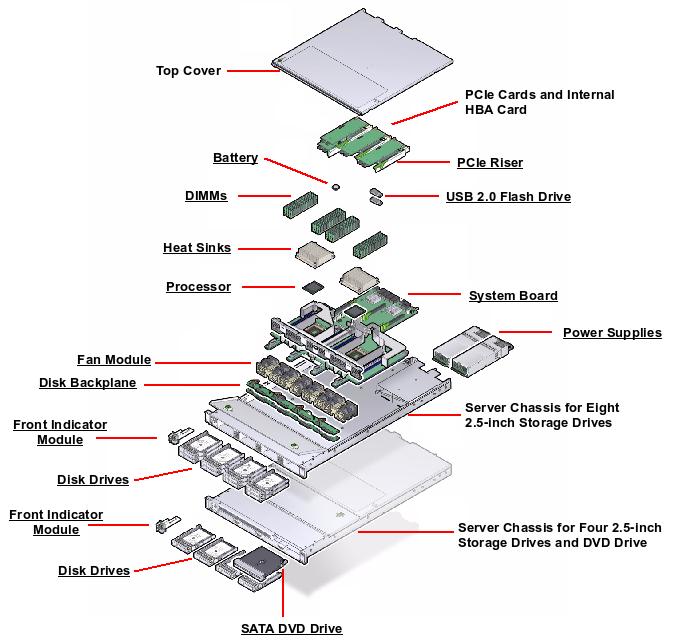

Sun Server X4-2 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 240-4674 PCI Express Filler Panel
NS 541-2629 2.5" Disk Drive Filler Panel
NS 541-3066 3.5" Disk Filler Panel
