Sun Fire X4170 Server - Full Components List

Batteries CPU Module Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
System Notes: If this unit is part of an Exadata V2, please reference the Oracle System Handbook entry for Exadata V2

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X5861A [S]	371-4298 [F]	2.93GHz Intel Quad-Core Xeon X5570, 8MB, 95W	n/a
X5862A [S]	371-4299 [F]	2.80GHz Intel Quad-Core Xeon X5560, 8MB, 95W	n/a
X5863A [S]	371-4300 [F]	2.53GHz Intel Quad-Core Xeon E5540, 8MB, 80W	n/a
X5864A [S]	371-4302 [F]	2.26GHz Intel Quad-Core Xeon L5520, 8MB, 60W	n/a
X5865A [S]	371-4477 [F]	2.26GHz Intel Quad-Core Xeon E5520, 8MB, 80W	n/a
n/a	F541-2545 [F]	Xeon Heatsink w/Grease	n/a
	250-1802	Alcohol Wipe Cleaner	n/a
	310-0065	X23-7783D Thermal Grease Syringe - 0.5gm (0.25 - 0.30cc)	n/a
	541-2545	Xeon Heatsink	n/a
	240-6751	Spring Screw	n/a
	310-0161	Pre-greased Heatsink	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X4217A-Z [S]	375-3549 [C]	Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X4237A [S]	375-3606 [C]	Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	511-1283 [F]	8-Slot Disk Backplane, SATA DVD	n/a
n/a	542-0355 [F]	Backplane Retainer Clip Kit	n/a
	330-5316	Black 1U Backplane Retainer Clip	n/a
n/a	7051678 [F]	8-Slot Disk Backplane, SATA DVD	511-1283 [F]

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CF-146G10K [S]	540-7355 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF-146G10K2 [S]	542-0217 [C]	146GB - 10000 RPM SAS2 SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF-73G15K [S]	540-7361 [C]	73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0382	Seagate ST973451SS [ST973451SSUN72G] (73GB - 15000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-ST2CF-32G2SSD [S]	540-7841 [C]	32GB Solid State SATA Drive Assembly	n/a
	371-4196	Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-ST2CF-500G7K [S]	542-0184 [C]	500GB - 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0468	Seagate ST9500530NS [ST95000NSSUN500G] (500GB - 7200 RPM - SATA Disk)	n/a
	541-4199	Marlin Bracket	n/a
XRB-SS2CF-146G10K [S]	540-7868 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	540-7869 [C]	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1109A-Z Buy	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	375-3617 [C]
SG-XPCIEFCOE2-Q-SR [S]	7053422 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S]	7053423 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	375-3682 [C]
X1106A-Z [S]	375-3585 [C]	Intel PRO/10GbE-SR x8 PCI Express	n/a
X1107A-Z [S]	375-3586 [C]	Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket	n/a
X4446A-Z [S]	7054739 [C]	PCI Express Quad Gigabit Ethernet UTP	375-3481 [C]
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	375-3481 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
n/a	375-3617 [C]	Dual 10-Gigabit Ethernet SFP+ LP	n/a
n/a	375-3681 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	n/a
n/a	375-3682 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	330-4683	Fan Connector Cover	n/a
n/a	541-2112 [C]	Fan Power Board	n/a
	330-4442	Top Bracket	n/a
	330-4443	Bottom Bracket	n/a
	501-7694	Fan Board	n/a
n/a	541-2802 [C]	Fan Module	n/a
	310-0164	40mm 4-Pole Fan, Nidec	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM8-Z [S]	371-4295 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053433 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF8-Z [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2883 [C]	1-Slot x8 PCI Express Riser Assembly	n/a
	501-7967	1-Slot x8 PCI Express Riser	n/a
	541-2924	Riser Mounting Bracket	n/a
n/a	541-2885 [C]	1-Slot x16 PCI Express Riser Assembly	n/a
	501-7965	1-Slot x16 PCI Express Riser	n/a
	541-2924	Riser Mounting Bracket	n/a
n/a	7049275 [C]	1-Slot x8 PCI Express Riser Assembly	541-2883 [C]
	541-2924	Riser Mounting Bracket	n/a
	7049274	1-Slot x8 PCI Express Riser	n/a
	541-2924	Riser Mounting Bracket	n/a
n/a	7053384 [C]	1-Slot x16 PCI Express Riser Assembly	541-2885 [C]
	541-2924	Riser Mounting Bracket	n/a
	7053383	1-Slot x16 PCI Express Riser	501-7965

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X5869A	371-4287 [C]	2GB Registered DDR3-1333 DIMM	n/a
X5870A	371-4288 [C]	4GB Registered DDR3-1333 DIMM	n/a
X4680A [S]	375-3590 [C]	16GB Compact Flash	n/a
X5866A [S]	371-4282 [C]	2GB Registered DDR3-1066 / DDR3-1333 DIMM	n/a
X5867A [S]	371-4283 [C]	4GB Registered DDR3-1066 / DDR3-1333 DIMM	n/a
X5868A [S]	371-4285 [C]	8GB Registered DDR3-1066 DIMM	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
X5872A [S]	300-2143 [C]	Type A237 760 Watt AC Input Power Supply	n/a
n/a	300-2233 [F]	Type A247 760 Watt AC Input Power Supply	300-2143 [C]
n/a	501-7696 [C]	Power Distribution Board	n/a
n/a	511-1604 [F]	Power Distribution Board	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X6324A [S]	371-2742 [C]	1U/2U Cable Management Arm	n/a
X6325A [S]	371-2740 [C]	1U/2U Snap-In Slide Rail Rackmount Kit, 730mm	n/a
X6326A [S]	371-2741 [C]	1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X8325A [S]	541-3493 [C]	Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly	n/a
	330-5056	DVD Tray	n/a
	390-0442	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0443	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0454	8x SATA DVD Writer/24x CD-Writer	n/a
	390-0486	8x Slot-Load SATA DVD-Writer/24x CD-Writer	390-0443
	501-7698	USB Board	n/a
n/a	541-2732	USB Assembly	n/a
	330-4418	DVD Tray	n/a
	341-4072	DVD Filler Panel	n/a
	501-7698	USB Board	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SG-XPCIE8SAS-I-Z [S]	7064052 [C]	PCI Express 8-Port SAS Controller	371-3255 [C]
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
SGXPCIESAS-R-INT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3536 2 [C]	8-Port SAS Adaptec RAID HBA	n/a
n/a	371-3255 [C]	PCI Express 8-Port SAS Controller	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a
n/a	375-3641 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a

2 Reference Alert article
System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2542 [F]	System Board Assembly	n/a
	501-7917	System Board	n/a
	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a
	541-2543	System Board Tray	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

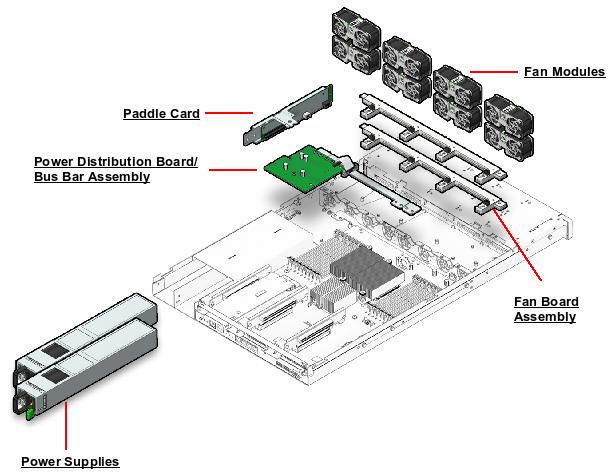

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	350-1288	DIMM Slot Filler
NS	511-1281	Connector Board (Paddle Card), SATA DVD
NS	530-3927 [F]	PDB to System Board Ribbon Cable
NS	541-2636 [F]	Lightpipe Assembly
NS	330-4421	Right Side Endcap Lightpipe
NS	541-2126	Left Side Endcap Lightpipe Assembly
NS	330-4419	Lightpipe Button
NS	330-4420	Lightpipe Holder
NS	330-4424	Power Button
NS	541-2739	PCI Cross Beam
NS	341-3050	PCI Bar
NS	343-0532	Rear Foam Gasket
NS	599-3474	X4170-S1-AA Base Assembly (-02)
	330-4683	Fan Connector Cover
NS	341-4138	PCI Filler Panel
NS	530-4228 [C]	SFF8087 to SFF8087 Mini-SAS Cable, 690mm
NS	541-3442	Enclosure Assembly
NS	540-7838	Chassis Subassembly
NS	541-2115	Disk Cage
NS	541-2865	Right Side Cap
NS	541-2126	Left Side Endcap Lightpipe Assembly
NS	330-4419	Lightpipe Button
NS	330-4420	Lightpipe Holder
NS	330-4424	Power Button
NS	541-2866	Left Side Cap
NS	330-4421	Right Side Endcap Lightpipe
NS	541-3239	Perforated Top Cover
NS	150-4065	Interlock Switch Magnet
NS	541-2075	Bus Bar Set
NS	341-3096	Long Red Bus Bar
NS	341-3104	Short Blue Bus Bar
NS	541-3512 [C]	Connector Board Assembly, SATA DVD
NS	341-3168	Bracket
NS	530-3510	Interlock Switch Cable
