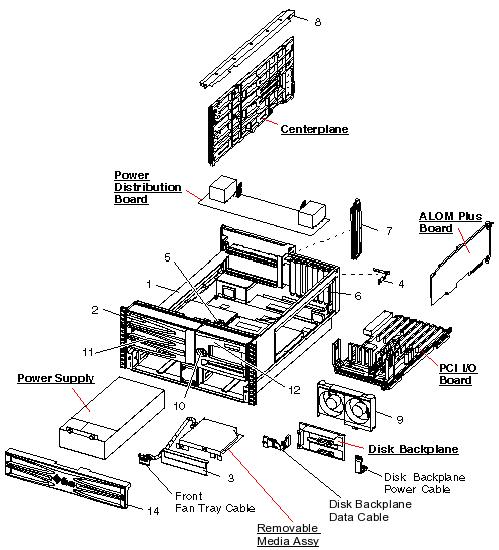

Sun Fire V490 (post July 2006) - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|
Batteries
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
150-2850
2
[F]
|
3V Lithium Battery BR1632 / CR1632 |
n/a |
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X312L
[S]
|
Localized Power Cord Kit - Continental Europe |
|
180-1993
[C]
|
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black |
n/a |
|
X314L
[S]
|
Localized Power Cord Kit - Swiss |
| 7049124 [C]
|
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black |
180-1994
[C]
|
|
X317L
[S]
|
Localized Power Cord Kit - U.K. |
180-1997
[C]  Buy
|
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black |
n/a |
|
X320A
[S]
|
Localized Power Cord Kit - North America/Asia |
|
180-2164
[C] Buy
|
IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black |
530-1351
[C]
|
|
X332T
[S]
|
International Power Cord Kit |
|
180-2071
[C]
|
Blue 16A IEC 309 to IEC 320 C13 International 4.0M |
n/a |
|
X333A-25-10-IL
[S]
|
Localized Power Cord Kit Israel |
|
180-2130
[C] Buy
|
IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black |
n/a |
|
X336L
[S]
|
U.S. Power Cords 4-Pack |
|
180-2070
[C]
|
NEMA L6-20P to IEC 320 C13 - 4.0M |
n/a |
|
X337L
[S]
|
International Power Cords 4-Pack |
|
180-2071
[C]
|
Blue 16A IEC 309 to IEC 320 C13 International 4.0M |
n/a |
|
X338L
[S]
|
U.S. Watertight Power Cords 4-Pack |
|
180-2072
[C]
|
Blue 20A Watertight IEC 309 to IEC 320 C13, 4.0M |
n/a |
|
X339L
[S]
|
International Watertight Power Cords 4-Pack |
|
180-2073
[C]
[S]
|
Blue 16A Watertight IEC 309 to IEC 320 C13 4.0M |
n/a |
|
X340L
[S]
|
Power Kit for North America, L6-20 20A Twist Lock Plug |
|
180-2070
[C]
|
NEMA L6-20P to IEC 320 C13 - 4.0M |
n/a |
|
X383L
[S]
|
Localized Power Cord Kit - Danish |
|
180-1995
[C]
|
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black |
n/a |
|
X384L
[S]
|
Localized Power Cord Kit - Italian |
|
180-1996
[C]
|
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black |
n/a |
|
X386L
[S]
|
Localized Power Cord Kit - Australian |
|
180-1998
[C]
|
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black |
n/a |
|
X9713A-Z
[S]
|
530-4253 [F]
|
Loop-B FC-AL Cable |
530-3765 [F]
|
| n/a |
180-1994
[C]
|
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black |
n/a |
| n/a |
530-1351
[C]
|
IEC 320 C13 to NEMA 6-15 - 10A/250V 2.0M Black |
n/a |
| n/a |
530-3710 [F]
|
FC-AL Backplane Data Cable |
n/a |
| n/a |
530-3719 [F]
|
FC-AL Backplane Power Cable |
n/a |
| n/a |
530-3765 [F]
|
Loop-B FC-AL Cable |
n/a |
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1333A-4
[S]
|
375-3418
[C]
|
Infiniband PCI-X Card |
n/a |
|
X1355A-2
[S]
|
371-0982 |
2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable |
n/a |
|
375-3296
[C]
|
Quad Port High Speed Serial Interface PCI-X (HSI/U) |
n/a |
| n/a |
501-7314
[F]
|
Advanced Lights Out Management (ALOM) Plus Card |
n/a |
|
Disks
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X6805A
[S]
|
540-6604 [C]
|
73.4GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks |
n/a |
|
|
n/a |
|
- Fujitsu MAW3073FC [MAW3073FCSUN73G]
(73.4GB - 10000 RPM - FC-AL Disk)
|
n/a |
|
- Hitachi HUS1073FA [HUS1073FASUN72G]
(73.4GB - 10000 RPM - FC-AL Disk)
|
n/a |
|
- Seagate ST373207FC [ST373207FSUN72G]
(73.4GB - 10000 RPM - FC-AL Disk)
|
n/a |
|
|
n/a |
|
XRA-FC1CB-146G10K
[S]
|
540-6605 [C]
|
146GB - 10000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks |
n/a |
|
|
n/a |
|
- Fujitsu MAW3147FC [MAW3147FCSUN146G]
(146GB - 10000 RPM - FC-AL Disk)
|
n/a |
|
- Hitachi HUS1014FA [HUS1014FASUN146G]
(146GB - 10000 RPM - FC-AL Disk)
|
n/a |
|
- Seagate ST3146707FC [ST314670FSUN146G]
(146GB - 10000 RPM - FC-AL Disk)
|
n/a |
|
|
n/a |
|
XRA-FC1CB-146G15KZ
[S]
|
540-6487 [C]
|
146GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks:
|
n/a |
|
|
n/a |
|
- Seagate ST3146854FC [ST314685FSUN146G]
(146GB - 15000 RPM - FC-AL Disk)
|
n/a |
|
- Fujitsu MAX3147FC [MAX3147FCSUN146G]
(146GB - 15000 RPM - FC-AL Disk)
|
n/a |
|
- Seagate ST3146855FC [ST314655FSUN146G]
(146GB - 15000 RPM - FC-AL Disk)
|
n/a |
|
- Hitachi HUS153014VLF400 [HUS1514FBSUN146G]
(146.8GB - 15000 RPM - FC-AL Disk)
|
n/a |
|
|
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
4455A-4
[S]
|
375-3301
[C]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
n/a |
|
501-7414
|
10Gb/sec PCI-X Ethernet Adapter |
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
4466A
[S]
|
375-3361
[C]
|
10Gb/sec XFP Optical Transceiver Single Mode Fibre |
n/a |
|
501-7414
|
10Gb/sec PCI-X Ethernet Adapter |
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
5544A-4
[S]
|
375-3301
[C]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
n/a |
|
501-7413
[C]
|
10Gb PCI-X Ethernet Adapter |
n/a |
|
- Bracket Standard 10Gb PCI-X Ethernet
|
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
6644A
[S]
|
375-3361
[C]
|
10Gb/sec XFP Optical Transceiver Single Mode Fibre |
n/a |
|
501-7413
[C]
|
10Gb PCI-X Ethernet Adapter |
n/a |
|
- Bracket Standard 10Gb PCI-X Ethernet
|
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
X4150A-2
[S]
|
501-7415
[C]
|
GigaSwift Ethernet UTP (GCS) |
n/a |
|
X4445A
[S]
|
501-6738
[C]
|
Quad GigaSwift PCI-X Ethernet (QGE-X) |
n/a |
|
X5544A-4
[S]
|
10Gb PCI-X Ethernet Adapter, no transceiver |
|
501-7413
[C]
|
10Gb PCI-X Ethernet Adapter |
n/a |
|
- Bracket Standard 10Gb PCI-X Ethernet
|
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
X5558A
[S]
|
7058828
[C]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
375-3301
[C]
|
|
X5559A
[S]
|
375-3361
[C]
|
10Gb/sec XFP Optical Transceiver Single Mode Fibre |
n/a |
|
X5560A-Z
[S]
|
375-3495
[C]
|
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR) |
n/a |
|
X7285A
[S]
|
371-0911
[C]
|
Low Profile PCI-X Dual Gigabit Ethernet UTP |
n/a |
|
X7286A
[S]
|
371-0912
[C]
|
Low Profile PCI-X Single Gigabit Ethernet MMF |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
541-1120 [F]
|
PCI Fan Tray |
n/a |
| n/a |
541-1256 [F]
|
CPU Fan Tray |
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCI1FC-EM2
[S]
|
375-3304
[F]
|
2Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI1FC-EM4-Z
[S]
|
375-3398
[F]
|
4Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI1FC-QF4
[S]
|
375-3354
[F]
|
4Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI1FC-QL2
[S]
|
375-3383
[F]
|
2Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI2FC-EM2
[S]
|
375-3305
[F]
|
2Gb PCI-X Dual FC Host Adapter |
n/a |
|
SG-XPCI2FC-EM4-Z
[S]
|
7058528
[F]
|
4Gb PCI-X Dual FC Host Adapter |
375-3399
[F]
|
|
SG-XPCI2FC-QF2-Z
[S]
|
375-3363
[F]
|
2Gb PCI/PCI-X Dual FC Host Adapter |
n/a |
|
|
n/a |
|
SG-XPCI2FC-QF4
[S]
|
7060890
[F]
|
4Gb PCI-X Dual FC Host Adapter |
375-3294
[F]
|
|
X6727A
[S]
|
375-3030
[F]
|
PCI Dual FC Host Adapter+ |
n/a |
| n/a |
375-3294
[F]
|
4Gb PCI-X Dual FC Host Adapter |
n/a |
| n/a |
375-3399
[F]
|
4Gb PCI-X Dual FC Host Adapter |
n/a |
|
Graphics
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X7296A
[S]
|
375-3290
3
[F]
|
XVR-100 Graphics Accelerator (64MB) |
n/a |
3 Refer to FAB article 1001156.1 fuzzy or blurry video with the XVR-100 Graphics Accelerator.
|
|
I/O
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
501-7315
[F]
|
PCI I/O Riser Board |
n/a |
|
|
n/a |
|
Memory
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X7051A-Z
[S]
|
2 GB (4 × 512MB SDRAM DIMMs) Memory Option |
|
501-7385
[F]
|
512MB SDRAM DIMM |
n/a |
|
X7056A-Z
[S]
|
4 GB (4 × 1GB SDRAM DIMMs) |
|
501-7386
[F]
|
1GB SDRAM DIMM |
n/a |
|
X7058A-Z
[S]
|
8 GB (4 × 2GB SDRAM DIMMs) Memory Option |
|
540-6489
[F]
|
2GB SDRAM DIMM Assembly |
n/a |
|
|
n/a |
| n/a |
F511-1030 4
[F]
|
Package of 25 × 512MB SDRAM DIMMs [SKU] |
n/a |
|
|
n/a |
| n/a |
F511-1031 5
[F]
|
Package of 25 × 1GB SDRAM DIMMs [SKU] |
n/a |
|
|
n/a |
4
See FAB article1000920.1 (formerly 201233) for details.
5 See FAB article1000920.1 (formerly 201233) for details.
|
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
300-1987
[F]
|
Type A187 1448 Watt AC Input Power Supply |
n/a |
| n/a |
375-3168
[F]
|
Power Distribution Board |
n/a |
|
Rack
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
| n/a |
370-4427 7 8
[F]
|
4-Post Rack Kit
(370-4427-02 = 27") - discontinued June 2002
(370-4427-03 = 25") - obsolete
(370-4427-04 = 25") - add slide kit |
n/a |
7 Rack Mount Rail Kit 370-4427-02 is not compatible with the Sun Rack 900.
8 >=370-4427-03: Inner and Outer Slide Rails from the same manufacturer are required.
|
|
Removable Media
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-1789
[F]
|
Slimline 8X DVD-ROM / 24X CD-ROM |
n/a |
| n/a |
390-0289
[F]
|
Slimline 8X DVD-Writer / 24X CD-Writer |
n/a |
| n/a |
390-0345
[F]
|
Slimline 8X DVD-Writer / 24X CD-Writer |
n/a |
| n/a |
390-0349
9
[F]
|
Slimline 8X DVD-ROM / 24X CD-ROM |
n/a |
| n/a |
F390-0429 [F]
|
Slimline 8X DVD-Writer / 24X CD-Writer |
n/a |
|
- Slimline 8X DVD-Writer / 24X CD-Writer
|
n/a |
|
- Slimline 8X DVD-Writer / 24X CD-Writer
|
390-0345
[F]
|
| n/a |
390-0336
[S]
|
Slimline 8X DVD-ROM / 24X CD-ROM |
n/a |
9 Added as manufacturing substitute for 371-1789 in November 2006 by WO_34398.
NOTE: DVD Drives 390-0289 & 390-0345 only shipped in factory configured 1.8GHz and 2.1GHz V490s. They are not available as options.
|
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SGXPCI2SCSILM320-Z
[S]
|
7050788
[F]
|
PCI/PCI-X Dual Ultra320 SCSI Adapter |
375-3365
11
[F]
|
| n/a |
375-3365
10
[F]
|
PCI/PCI-X Dual Ultra320 SCSI Adapter |
n/a |
10 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1.
11 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1.
|
|
System Board
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X7270A-Z
[S]
|
CPU/Memory Board w/2 × USIV 1.35GHz,
8GB (16 × 512MB DIMMs) Memory |
|
501-7305
[F]
|
CPU/Memory Board w/2 × USIV 1.35GHz, 0MB
(Jaguar, 1.35GHz Lite 527-1164, Cinch socket) |
n/a |
|
X7273A-Z
[S]
|
CPU/Memory Board w/2 × USIV+ 1.5GHz,
8GB (16 × 512MB DIMMs) Memory |
|
501-7481
[F]
|
CPU/Memory Board w/2 × USIV+ 1.5GHz, 0MB |
n/a |
|
X7274A-Z
[S]
|
CPU/Memory Board w/2 × USIV+ 1.5GHz,
16GB (16 × 1GB DIMMs) Memory |
|
501-7481
[F]
|
CPU/Memory Board w/2 × USIV+ 1.5GHz, 0MB |
n/a |
|
X7275A-Z
[S]
|
CPU/Memory Board w/2 × USIV 1.35GHz,
16GB (16 × 1GB DIMMs) Memory |
|
501-7305
[F]
|
CPU/Memory Board w/2 × USIV 1.35GHz, 0MB
(Jaguar, 1.35GHz Lite 527-1164, Cinch socket) |
n/a |
|
X7300A-Z
[S]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 8GB (16 × 512MB DIMMs) Memory |
|
501-7506 12
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
501-7691 13
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
501-7881 14
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
X7301A-Z
[S]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 16GB (16 × 1GB DIMMs) Memory |
|
501-7506 15
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
501-7691 16
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
501-7881 17
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
X7302A-Z
[S]
|
CPU/Memory Board w/2 × USIV+ 1.5GHz, 32GB (16 × 2GB DIMMs) Memory |
|
501-7481
[F]
|
CPU/Memory Board w/2 × USIV+ 1.5GHz, 0MB |
n/a |
|
X7303A-Z
[S]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 32GB (16 × 2GB DIMMs) Memory |
|
501-7506 18
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
501-7691 19
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
|
501-7881 20
[F]
|
CPU/Memory Board w/2 × USIV+ 1.8GHz, 0MB |
n/a |
12 Manufacturing substitute part as of September 2006.
13 Primary part in September 2006, then Manufacturing substitute as of April 2007.
14 Primary part as of April 2007.
15 Manufacturing substitute part as of September 2006.
16 Primary part in September 2006, then Manufacturing substitute as of April 2007.
17 Primary part as of April 2007.
18 Manufacturing substitute part as of September 2006.
19 Primary part in September 2006, then Manufacturing substitute as of April 2007.
20 Primary part as of April 2007.
NOTE: Refer to the Sun Fire V490/V890 CPU/Memory Module Configuration Guide for Minimum Operating System and Firmware Versions
and supported Mixed-Speed Configurations.
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|
| Code |
Manufacturing Part# |
Description |
| 1 |
541-1063 |
Chassis Assembly |
| 1 |
|
|
| 1 |
|
|
| 5 |
|
|
| NS |
|
- CPU Cover Lock Linkage Rod
|
| NS |
|
- CPU Cover Lock Linkage Rod
|
| NS |
|
|
| 6 |
|
|
| 7 |
|
|
| 8 |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| 1 |
602-3176 |
Sun Fire V490 Base Model |
| - |
|
- Front Fan Tray Cable Assembly
|
| NS |
|
|
| NS |
|
|
| 2 |
|
- Left/Right Front Dress Panel, 18 × 218 mm
|
| 3 |
|
|
| 4 |
|
- Back Panel Status LED Assembly
|
| 10 |
|
|
| - |
|
|
| - |
|
- Removal Media Door w/o Bezel
|
| - |
|
|
| - |
|
- Keyswitch/Button/LED and Wire Harness
|
| 12 |
|
- Removable Media Bezel w/o V490 Nameplate
|
| 14 |
|
|
| NS |
330-3797 |
AC Power Key / Door Key |
| NS |
375-3053 [F]
|
Removable Media Paddleboard and Cable |
| NS |
530-3096 |
Power Cord IEC 320-C13 to IEC 320 Sheet E 2.5M |
| NS |
530-3623 [F]
|
Shielded RJ45 to RJ45 Cable, 4M |
| NS |
530-3695 [F]
|
RJ45 to DB25 Serial Port Adapter |
| NS |
541-1060 |
DVD-ROM/Smart Card Reader Carrier |
|
