2-Slot FC-AL Disk Backplane

501-5822 501-7322
FAB 270-5822 FAB 270-5822

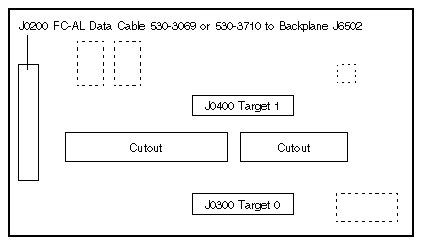

Front View

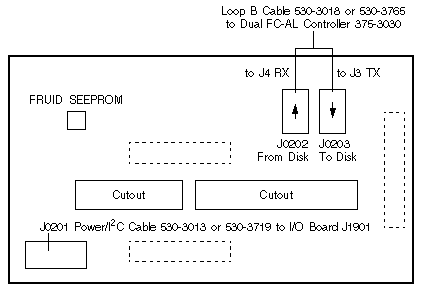

Rear View

Notes

  1. Connectors J0200, J0300, and J0400 are pressfit.
  2. J0202/J0203 are silkscreened From Disks/To Disks on the board.
  3. J0202/J0203 are incorrectly described as To Disks/From Disks in early editions of 816-0907 (corrected as of 816-0907-13).

References

  1. Sun Fire V480 Server Documentation.
  2. Sun Fire V490 Server Documentation.
