8X DVD-ROM / 24X CD-ROM

Option 7423

370-4412	371-1789	390-0336	390-0349
FRU w/o Bracket or Cable Toshiba SD-C2512 Toshiba SD-C2612 Toshiba SD-C2732 ATAPI/IDE Interface Slimline 1/2" Height	Toshiba SD-C2732 ATAPI/IDE Interface Slimline 1/2" Height	TSST TS-L462C ATAPI/IDE Interface Slimline 1/2" Height	TSST TS-L332A ATAPI/IDE Interface Slimline 1/2" Height

540-4767	540-5411	540-5596	540-6067
V480/V490 Assembly Bracket 340-6828 Cable 375-3053 DVD 370-4412 or 390-0336	1280/E2900 Assembly Screw 240-3800 Clip 340-7441 DVD 370-4412	V440 Assembly/FRU Bracket 340-7679 DVD 370-4412	N440 Assembly/FRU Bracket 240-4588 DVD 370-4412 Option 7423

540-7027	541-1059	541-1504
V440 Assembly Bracket 340-7679 DVD 390-0336	V490 Assembly Bracket 541-1060 Cable 375-3053 DVD 371-1789 or 390-0336 or 390-0349	E2900 Assembly Bracket 341-2730 DVD 371-1789

Front View

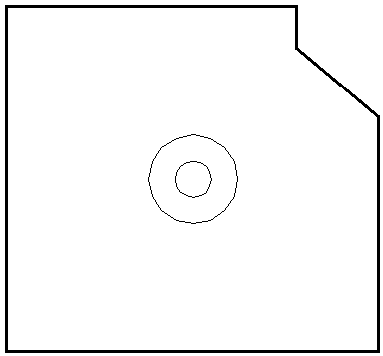

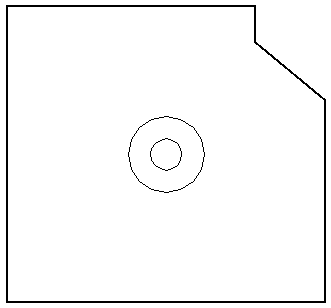

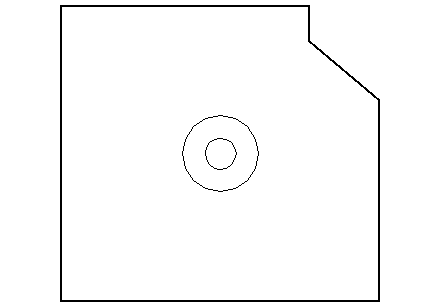

Top View

Paddleboard (Netra 1280/ Sun Fire V1280 / Sun Fire E2900)

Notes

1. DVD FRU F370-4412 does not include a Cable or Paddleboard.
2. The SD-C2612 was added as an alternate source in November 2002.
3. The SD-C2732 was added as an alternate source in January 2005.
4. DVD 390-0336 was added to assembly 540-4767 in May 2006. (WO_33105)
5. DVD 390-0336 is not available as a FRU.
6. DVD 390-0349 was added to assembly 541-1059 in November 2006. (WO_34398)
7. Assembly 540-4767 with DVD 390-0336 was not shipped in the Sun Fire V480.
8. DVD 371-1789 is a manufacturing substitute in 540-4767. (WO_33105)
9. DVD 371-1789 is a manufacturing substitute in 540-7027. (WO_34917)
10. DVD 390-0349 is a manufacturing substitute in 540-7027. (WO_37025)

Sun Fire V440 Notes

1. V440 assembly 540-7027 replaced 540-5596 in May 2006. (WO_33009)
2. 371-1789 was added to 540-7027 as a manufacturing substitute in January 2007. (WO_34917)
3. Assembly 541-0006 is not a separate FRU. Order Cable Kit F560-2734.
4. Cable Kit F560-2734 includes Assembly 541-0006.
5. Cable Kit F560-2825 includes Assembly 541-0006.
6. Assembly 541-0006 includes Cable 530-3213 soldered to Paddleboard 375-3104.
7. DVD 390-0336 will not boot Solaris 10 10/08 or higher. (FAB 1022288)

Sun Fire V480 / V490 Notes

1. The Cable and Paddleboard do not have Sun part numbers.
2. FRU Assembly F375-3053 includes the Cable and Paddleboard.

Netra 1280 / Sun Fire V1280 Notes

1. Cable Kit F560-2686 includes DVD Cable 530-3078.
2. Order F370-4344 to receive Paddleboard 370-4344. Discard the 60 mm Cable.

Sun Fire E2900 Notes

1. Cable Kit F560-2686 includes DVD Cable 530-3078.
2. Order F370-4344 to receive Paddleboard 370-4344. Discard the 60 mm Cable.
3. Cable Kit F560-2826 includes DVD Cable 530-3699.
4. The DVD Paddleboard FRU is F371-1639.

Netra 440 Notes

1. DVD FRU F540-6068 includes DVD 370-4412 and Bracket 240-4588.
2. SCCR FRU F540-5856 includes Netra 440 DVD Paddleboard 375-3104.

Notes

1. The 370-5128 was released in March 2003.
2. The primary supplier and model for 370-5128 is unknown.
3. The Panasonic SR-8177 was added as an alternate part in June 2004.

Notes

1. DVD FRU F370-6632 includes DVD 370-6632 and Bracket 341710500003.
2. SCCR FRU F370-6126 includes the cables to J501 and J504.
3. SCSI Interface FRU F370-6128 includes the cable to J505.

Notes

1. Assembly 371-1108 with DVD 371-0749 was released in December 2005.
2. DVD 390-0400 was added to 371-1108 in August 2007. (WO_37406)

Netra 240 Notes

1. Assembly 371-0749 replaced 370-6632 in August 2005.
2. DVD FRU F371-0749 includes DVD 371-0721 and Bracket 341710500003.
3. SCCR FRU F370-6126 includes the cables to J501 and J504.
4. SCSI Interface FRU F370-6128 includes the cable to J505.

Notes

1. A Bill Of Material is not available for 540-5014.
2. FRU F540-5014 includes the DVD-ROM, Cable, Paddleboard, and Bracket.
3. FRU F370-4344 includes only the Cable and Paddleboard.

Notes

1. The drive does not include a hole for forced ejection.
2. Assembly 540-6368 includes DVD 390-0218 and Label 266-7348.
