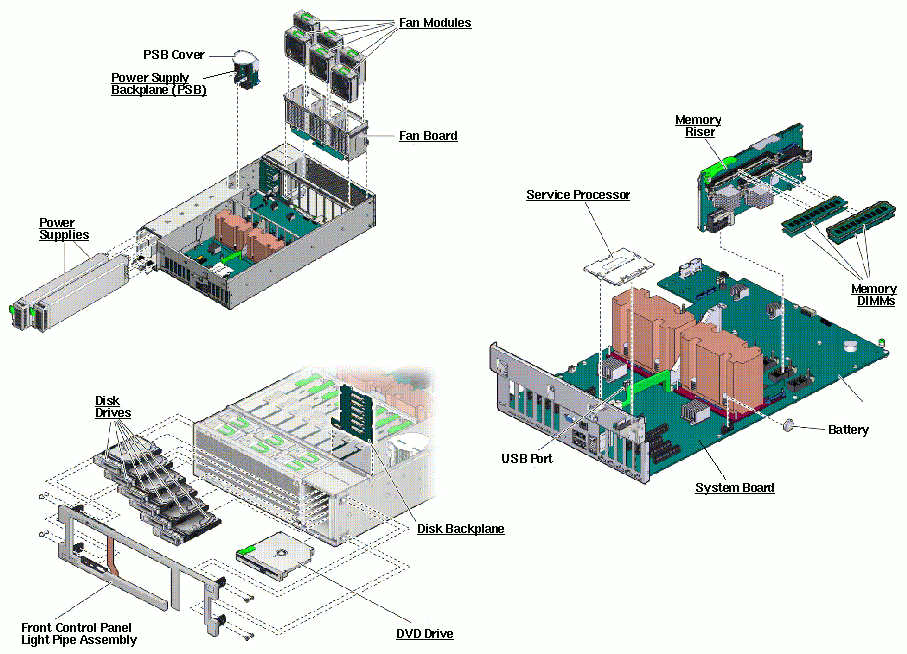

SPARC T5-2 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-2210 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
7110121 [S] 7091384 SPARC T5-2 Upgrade Kit: 1 CPU to 2 CPUs n/a
n/a 7088667 Single Socket System Board Memory Connector Cover n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
X2121A-1M-N Buy 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
X2121A-3M-N Buy 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
X2121A-5M-N Buy 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
X2130A-1M-N Buy 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
X2130A-3M-N Buy 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
X2130A-5M-N Buy 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
X333V-30-15-C14-N Buy 7040693 [C] IEC 320 Sheet E to IEC 320 C13, 10A/250V, 3M 180-2443 [C]
X9237-1-A-N Buy 180-2082 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 1.0M n/a
X9238-1-A-N Buy 180-2085 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 2.5M n/a
n/a 180-2442 [C] IEC 320 C13 to IEC 320 Sheet E - 15A/250V 2.0M n/a
n/a 180-2443 [C] IEC 320 C13 to IEC 320 Sheet E - 15A/250V 3.0M n/a
n/a 7070388 [C] Cable Kit n/a
  • 7024007 [C]
  • SAS Cable, SFF-8087 to SFF-8087, 215mm (x2)
n/a
  • 530-3895
  • 4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm
 n/a
  • 530-4287
  • Fan Board to System Board Signal Cable
 n/a
  • 530-4288
  • Fan Board to System Board Power Cable
 n/a
  • 530-4289
  • System Board to PDB Cable
 n/a
  • 530-4290
  • System Board to Disk Backplane Signal Cable
 n/a
  • 530-4291
  • System Board to Disk Backplane Power Cable
 n/a
Chassis
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7059209 Top Cover Baffle n/a
n/a 7067321 Chassis Subassembly n/a
  • 341-5805
  • Rack Mount Ear
 n/a
  • 7067322
  • Chassis
 n/a
  • 341-6188
  • Power Supply Chassis Cable Cover
 n/a
  • 350-1383
  • Top Cover
 n/a
    • 150-4065
    • Interlock Switch Magnet
 n/a
  • 350-1392
  • Front Bezel
 n/a
  • 350-1469
  • Power Distribution Board Cover
 n/a
  • 530-4356
  • AC Input Line Filter with Cable
 n/a
n/a 7074704 Chassis Subassembly 7067321
  • 341-5805
  • Rack Mount Ear
 n/a
  • 541-3539 [C]
  • 92mm Fan Module
 n/a
  • 6-Slot Disk Backplane
 n/a
  • Fan Cage Assembly
 n/a
    • LED Flex Circuit
 n/a
    • 7057260
    • Fan Board with USB and VGA
 n/a
  • 7068043
  • Power Distribution Board Cover
 n/a
  • 7075160
  • Chassis
 n/a
  • Power Supply Backplane Assembly
 7052431 [F]
    • 371-4446
    • Bus Bar
 n/a
    • Power Distribution Board / Power Supply Backplane
 n/a
  • 341-6188
  • Power Supply Chassis Cable Cover
 n/a
  • 350-1383
  • Top Cover
 n/a
    • 150-4065
    • Interlock Switch Magnet
 n/a
  • 350-1392
  • Front Bezel
 n/a
  • 530-4356
  • AC Input Line Filter with Cable
 n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
7104074 Buy 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 7046442 [C]
X4242A [S] 7092767 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter 375-3696 [C]
X6000A-N [S] 375-3424 [C] PCI Express Sun Crypto Accelerator 6000 n/a
n/a 375-3696 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter n/a
n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7039459 [F] 6-Slot Disk Backplane n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7111103 Buy 7093015 [C] 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7101423 [S] 7017183 [C] 100GB Solid State SATA Drive Assembly n/a
  • Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7101469 [S] 7017184 [C] 300GB Solid State SATA Drive Assembly n/a
  • Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7105212 [S] 7064133 [C] 300GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7105214 [S] 7064135 [C] 600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
7107550 [S] 7077233 [C] 400GB Solid State SATA Drive Assembly n/a
  • 400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G]
n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7352257 [C] [A] 600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
7100477 Buy 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP 7048474 [C]
7100481 Buy 7070202 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF 7014747 [C]
7100488 Buy 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 7014776 [C]
X1109A-Z Buy 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
X2124A-N Buy 7326504 [C] 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver 135-1204 [C]
X2129A-N Buy 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
X5562A-Z Buy 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
7105381 [S] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR n/a
7105382 [S] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach n/a
n/a 135-1204 [C] 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver n/a
n/a 7014747 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
n/a 7014776 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
n/a 7048474 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-3539 [C] 92mm Fan Module n/a
n/a 7057262 [F] Fan Cage Assembly n/a
  • LED Flex Circuit
 n/a
  • 7057260
  • Fan Board with USB and VGA
 n/a
n/a 7093647 Grey Plastic Air Divider w/ Fault Remind Button n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
7101674 Buy 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
7101676 Buy 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101678 Buy 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101684 Buy 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
7101686 Buy 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
7101688 [S] 7023057 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
SG-XPCIE2FC-EM8-N [S] 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex n/a
SG-XPCIE2FC-QF8-N [S] 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
7104201 Buy 32GB Memory Expansion (1 × 32GB) Option
7042211 [C] 32GB DDR3L-1066/DDR3L-1333 DIMM n/a
7104197 [S] 8GB Memory Expansion (1 × 8GB) Option
7042208 [C] 8GB DDR3L-1600/PC3L-12800 DIMM n/a
7104199 [S] 16GB Memory Expansion (1 × 16GB) Option
7042210 [C] 16GB DDR3L-1600/PC3L-12800 DIMM (runs at 1066 MHz) n/a
n/a 7048299 Single Socket System Board Memory Connector Thermal Baffle n/a
n/a 7064940 [C] Memory Riser Assembly n/a
  • 7049156
  • Riser Carrier
 n/a
  • Memory Riser
 n/a
n/a 7306028 [C] Memory Riser Assembly 7064940 [C]
  • 7049156
  • Riser Carrier
 n/a
  • Memory Riser
 n/a
n/a 7312442 [C] Memory Riser Assembly n/a
  • 7049156
  • Riser Carrier
 n/a
  • Memory Riser
 n/a
n/a 7357728 [C] Memory Riser Assembly (reworked 7306028) n/a
  • 7049156
  • Riser Carrier
 n/a
  • Memory Riser
 n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7052431 [F] Power Distribution Board / Power Supply Backplane n/a
  • 371-4446
  • Bus Bar
 n/a
  • Power Distribution Board / Power Supply Backplane
 n/a
n/a 7060596 [C] Type A239E 2000 Watt AC Input Power Supply n/a
n/a 7081064 [C] Type A239A 2000 Watt AC Input Power Supply 7060596 [C]
n/a 7300803 [F] Power Supply Backplane Assembly 7052431 [F]
  • 371-4446
  • Bus Bar
 n/a
  • Power Distribution Board / Power Supply Backplane
 n/a
n/a 7317314 3 [F] Power Supply Backplane Assembly n/a
  • 371-4446
  • Bus Bar
 n/a
  • Power Distribution Board / Power Supply Backplane
 n/a
  • 7317311
  • High Potential (Hipot) Test Passed Label
 n/a
3 Used as FRU 7300813 under D0003795, D0003832, and D0003880.
NOTE: Mixing of supported power supply types is allowed.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
XSR-JUMP-1MC13-N Buy 7015399 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M 180-2379 [C]
XSR-JUMP-2MC13-N Buy 7015400 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M 180-2380 [C]
n/a 180-2379 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M n/a
n/a 180-2380 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M n/a
n/a 371-4791 [C] Buy Tool-less Slide Rail Rack Mount Kit n/a
n/a 371-4812 [C] Buy Cable Management Arm n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7055072 Slot-Load SATA DVD-Writer/CD-Writer n/a
  • 341-5808
  • Bezel
 n/a
  • 341-6389
  • Mounting Tray
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
n/a 7070422 [C] Slot-Load SATA DVD-Writer/CD-Writer n/a
  • 341-5808
  • Bezel
 n/a
  • 341-6389
  • Mounting Tray
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
n/a 7082409 [C] Tray-Load SATA DVD-Writer/CD-Writer n/a
  • 7071296
  • 8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer
 n/a
  • 7079028
  • DVD Bezel
 n/a
  • 7079063
  • DVD Carrier
 n/a
  • 7089203
  • DVD Liner
 n/a
n/a 7300356 [C] Tray-Load SATA DVD-Writer/CD-Writer 7082409 [C]
  • 7071296
  • 8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer
 n/a
  • 7079028
  • DVD Bezel
 n/a
  • 7094095
  • DVD Carrier
 n/a
n/a 7302240 [C] Tray-Load SATA DVD-Writer/CD-Writer n/a
  • 7089963
  • 8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5)
 n/a
  • 7094095
  • DVD Carrier
 n/a
  • 7318289
  • DVD Bezel
 n/a
  • 7318304
  • Bezel Liner
 n/a
n/a 7314403 [C] Tray-Load DVD Assembly n/a
  • 7094095
  • DVD Carrier
 n/a
  • 7309891
  • 8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)
 n/a
  • 7318289
  • DVD Bezel
 n/a
  • 7318304
  • Bezel Liner
 n/a
  • 7336333
  • 8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7)
 n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
7104482 [S] 7070787 [C] Flash Accelerator F40 400GB Solid State Memory 7026993 [C]
7105387 [S] 8-Port 6Gbps SAS-2 PCI Express HBA
7047853 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
7107092 [S] 7069200 [C] 800GB PCI Express Flash Accelerator F80 SAS HBA n/a
n/a 7026993 [C] Flash Accelerator F40 400GB Solid State Memory n/a
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7088094 [F] Single 16-Core 3.6GHz System Board n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7088667
  • Single Socket System Board Memory Connector Cover
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7300799 [F] Dual 16-Core 3.6GHz System Board (reworked 7076601) n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7302920 [F] Dual 16-Core 3.6GHz System Board Assembly 7300799 [F]
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7302919
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7306299
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7302921 [F] Single 16-Core 3.6GHz System Board 7088094 [F]
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7302919
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7306299
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7340458 4 [F] Dual 16-Core 3.6GHz System Board (reworked 7300799) 7300799 [F]
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7340469 5 [F] Dual 16-Core 3.6GHz System Board (reworked 7302920) n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7340484 6 [F] Single 16-Core 3.6GHz System Board (reworked 7302921) n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7302919
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7306299
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7340486 [F] Single 16-Core 3.6GHz System Board n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7088667
  • Single Socket System Board Memory Connector Cover
 n/a
  • 7302919
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7306299
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7341348 7 [F] Single 16-Core 3.6GHz System Board n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7088667
  • Single Socket System Board Memory Connector Cover
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
n/a 7357643 [F] Dual 16-Core 3.6GHz System Board (reworked 7340469) n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7357710 [F] Single 16-Core 3.6GHz System Board (reworked 7340484) n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7088667
  • Single Socket System Board Memory Connector Cover
 n/a
  • 7302919
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7306299
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7357712 [F] Dual 16-Core 3.6GHz System Board (reworked 7340458) n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7357719 [F] Single 16-Core 3.6GHz System Board (reworked 7341348) n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7088667
  • Single Socket System Board Memory Connector Cover
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7063306 [F] [S] Dual 16-Core 3.6GHz System Board Assembly n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7052188 [F]
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7076601 [F] [S] Dual 16-Core 3.6GHz System Board Assembly 7063306 [F] [S]
  • 3V Lithium Coin Cell Battery
n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7074861
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
n/a 7340472 [F] [S] Dual 16-Core 3.6GHz System Board Assembly n/a
  • 3V Lithium Coin Cell Battery
n/a
  • 530-3510
  • Interlock Switch Cable
 n/a
  • 530-4348
  • System Board to Rear I/O Board Signal Cable
 n/a
  • 7051520
  • Rear I/O Board
 n/a
  • 7063305
  • Mounting Tray
 n/a
  • 7076600
  • System Board
 n/a
    • 525-2146 [F]
    • SSCC NVRAM
 n/a
  • 7086927
  • 16-Core 3.6GHz T5 CPU Mezzanine
 n/a
4 7340458 is a reworked 7300799 per E0032084 and Rework GSAP# 6836.A.
5 7340469 is a reworked 7302920 per E0032170 and Rework GSAP# 6844.
6 7340484 is a reworked 7302921 per E0032170 and Rework GSAP# 6844.
7 7341348 is a reworked 7088094 per E0032421 and Rework GSAP# 6850.
System Service Processor
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7066335 [C] Service Processor Assembly n/a
  • 350-1614
  • Service Processor Cover
 n/a
  • Service Processor
 n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

SPARC T5-2 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
NS 341-2610 PCI Filler Panel
NS 341-6188 Power Supply Chassis Cable Cover
NS 350-1288 DIMM Slot Filler
NS 350-1383 Top Cover
NS
  • 150-4065
  • Interlock Switch Magnet
NS 350-1392 Front Bezel
NS 350-1406 Air Divider with Fault Remind Button
NS 350-1469 Power Distribution Board Cover
NS 530-3510 Interlock Switch Cable
NS 530-4348 System Board to Rear I/O Board Signal Cable
NS 530-4356 AC Input Line Filter with Cable
NS 541-2629 2.5" Disk Drive Filler Panel
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
