7076600
System Board
w/o UltraSPARC T5
7076601 7300799 7340458
System Board Assembly
Dual 16-Core 3.6GHz
Rear I/O Board
7051520		 System Board Assembly
Dual 16-Core 3.6GHz
Reworked 7076601
(E0022135 - Sept 2014)
Purge GSAP 6362
Service Only
Rear I/O Board
7051520		 System Board Assembly
Dual 16-Core 3.6GHz
Reworked 7300799
(E0032084 - Sept 2016)
Rework GSAP 6836
Service Only
Rear I/O Board
7051520
7088094 7340472 7341348
System Board Assembly
Single 16-Core 3.6GHz
Rear I/O Board
7051520		 System Board Assembly
Dual 16-Core 3.6GHz
(E0032289 - Oct 2016)
Rear I/O Board
7051520		 System Board Assembly
Single 16-Core 3.6GHz
Reworked 7088094
(E0032421 - Oct 2016)
Rework GSAP 6850
Service Only
Rear I/O Board
7051520

7302919
System Board
w/o UltraSPARC T5
7302920 7340469
System Board Assembly
Dual 16-Core 3.6GHz
Rear I/O Board
7051520		 System Board Assembly
Dual 16-Core 3.6GHz
Reworked 7302920
(E0032170 - Oct 2016)
Rework GSAP 6844
Service Only
Rear I/O Board
7051520
7302921 7340484 7340486
System Board Assembly
Single 16-Core 3.6GHz
Rear I/O Board
7051520		 System Board Assembly
Single 16-Core 3.6GHz
Reworked 7320291
(E0032170 - Oct 2016)
Rework GSAP 6844
Service Only
Rear I/O Board
7051520		 System Board Assembly
Single 16-Core 3.6GHz
(E0032289 - Oct 2016)
Rear I/O Board
7051520

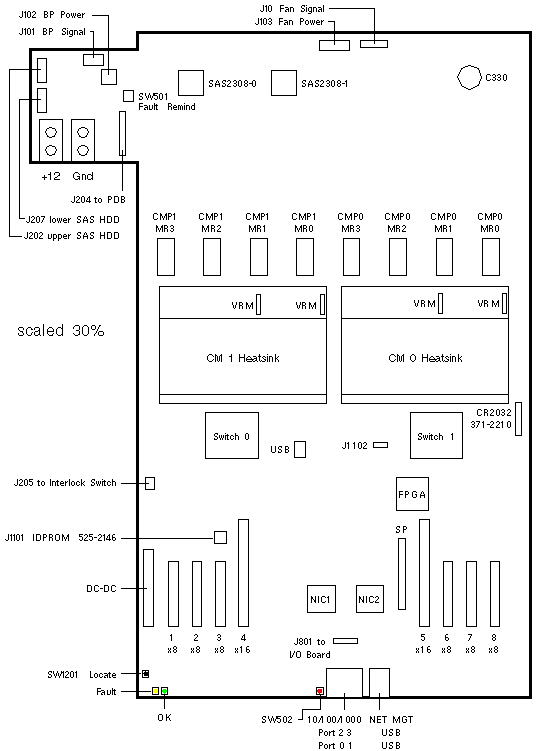

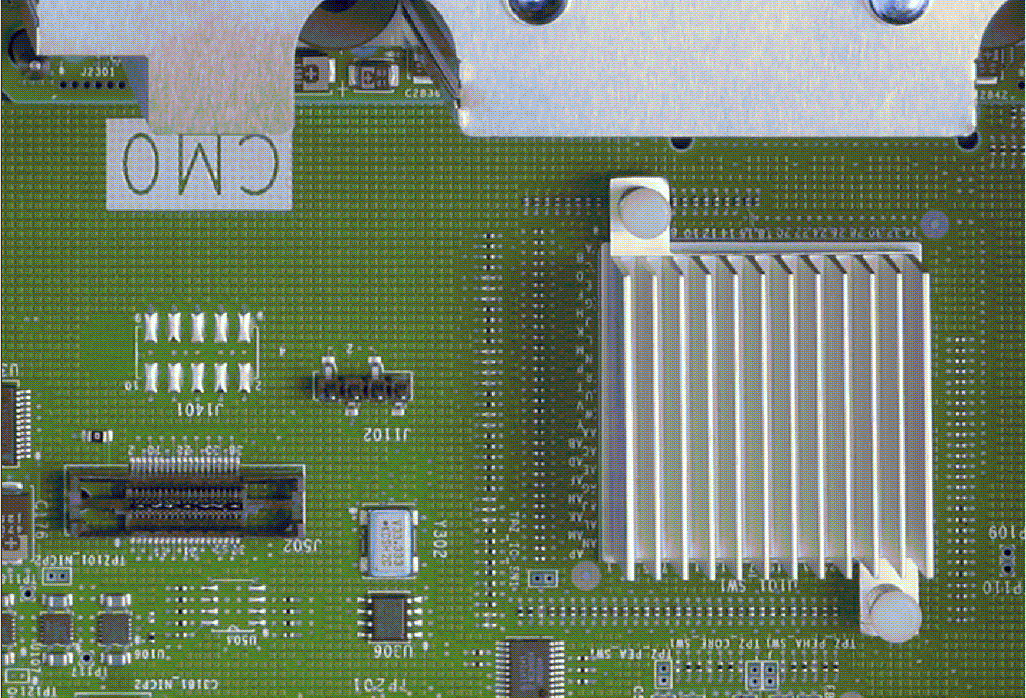

J1102 Jumper Location Image

Flash Recovery Jumper

LOCATION PINS SETTING DESCRIPTION
J1102 4 1-2 Normal Operation
J1102 4 2-3 Flash Recovery (Pin-2 = Recover_L) (Pin-3 = Gnd)
J1102 4 3-4 Flash Recovery (Pin-4 = Recover_L) (Pin-3 = Gnd)

Notes

  1. The minimum Solaris 10 operating system is Solaris 10 1/13.
  2. The minimum Solaris 11 operating system is Solaris 11 11.1 SRU 4.6.
  3. D228 rework was done by E0022135.
  4. New IDT firmware released by E0017063 fixes change request 17236671.
    Service Logistics does not implement this change to 7076600.

Memory Installation Notes

  1. Refer to the SPARC T5-2 Service Manual for Memory Riser DIMM mapping.

References

  1. SPARC T5-2 Server Documentation.
