Memory Riser

<a href="../../Systems/SupportHeaders/MEM_SPARC_T5_Riser.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

7064941 7064940

Memory Riser
w/o Bracket 7049156
FAB 7051951 Memory Riser Assembly
7049156 + 7064941

7064941 7312442

Memory Riser
w/o Bracket 7049156
FAB 7051951 Memory Riser Assembly
Reworked 7064940
7049156 + 7064941

7306029 7306028

Memory Riser
w/o Bracket 7049156
FAB 7051951 Memory Riser Assembly
7049156 + 7064941

Notes

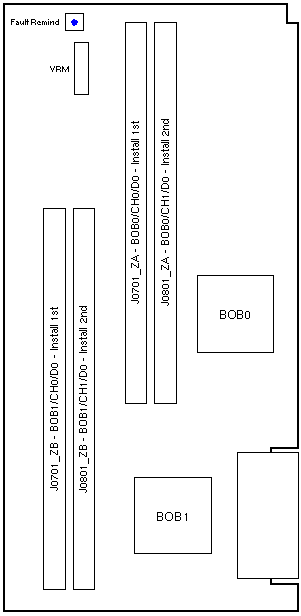

Install the first two DIMMs in the black Memory Riser slots.
Install the second two DIMMs in the white Memory Riser slots.
Install DIMM Filler 350-1288 in all unused DIMM slots.
Refer to the SPARC T5-2 Service Manual for Memory Riser DIMM mapping.
Fuse F104 was changed from .125A/125V to 500mA/63V. (E0023672)
Capacitor C117 was changed from 1uf to 47uf. (E0022403)

References

SPARC T5-2 Server Documentation.
