Netra T2000 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
150-1204
1
[C]
3V Lithium Coin Cell Battery
n/a
Cables
Option #
Manufacturing
Description
Previous
X311L
[S]
Localized Power Cord Kit - North America/Asia
180-1097
[C] Buy
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black
n/a
X312E
[S]
Localized Power Code Kit - China
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M
n/a
X312F
[S]
Localized Power Cord Kit - Argentina
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black
n/a
X312G
[S]
Localized Power Cord Kit - Korea
180-1662
[C] Buy
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black
n/a
X312L
[S]
Localized Power Cord Kit - Continental Europe
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black
n/a
X314L
[S]
Localized Power Cord Kit - Swiss
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
X317L
[S]
Localized Power Cord Kit - U.K.
180-1997
[C] Buy
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black
n/a
X383L
[S]
Localized Power Cord Kit - Danish
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black
n/a
X384L
[S]
Localized Power Cord Kit - Italian
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black
n/a
X386L
[S]
Localized Power Cord Kit - Australian
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black
n/a
n/a
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black
n/a
n/a
530-3100
RJ45F to DB9F Adapter
n/a
n/a
530-3361
CPU/Memory to I/O Board Cable
n/a
Communication
Option #
Manufacturing
Description
Previous
X1333A-4
[S]
375-3418
[C]
Infiniband PCI-X Card
n/a
X1355A-2 2
[S]
371-0982
2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable
n/a
375-3296
[C]
Quad Port High Speed Serial Interface PCI-X (HSI/U)
n/a
n/a
371-1957 [C]
Alarm Board Assembly
n/a
n/a
n/a
Alarm Board to DB-15 Cable 422747400013 n/a
Alarm Board to Motherboard Cable 422747400001 n/a
n/a
371-2877 [C]
Telco Alarm Board
371-1957 [C]
Disks
Option #
Manufacturing
Description
Previous
XRA-SS2ND-146G10KZ
[S]
540-7152 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
n/a
Nemo Bracket with Insulator
n/a
XRA-SS2ND-300G10K
[S]
540-7867 [C]
300GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9300603SS [ST930003SSUN300G] n/a
Nemo Bracket with Insulator
n/a
XRA-SS2ND-73G10K
[S]
540-6643 [C]
73GB - 10000 RPM, SAS, 2.5", Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST973401SS [ST973401SSUN72G] n/a
Fujitsu MAY2073RC [MAY2073RCSUN72G] n/a
Seagate ST973402SS [ST973402SSUN72G] n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G] n/a
n/a
Nemo Bracket with Insulator
n/a
XRB-SS2ND-146G10K
[S]
540-7866 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
Nemo Bracket with Insulator
n/a
Ethernet
Option #
Manufacturing
Description
Previous
X4151A-2
[S]
501-7430
[C]
GigaSwift Ethernet MMF (GFS)
n/a
X4445A
[S]
501-6738
[C]
Quad GigaSwift PCI-X Ethernet (QGE-X)
n/a
X4447A-Z
[S]
371-2348
Bracket Standard
n/a
7055021
[C]
Quad Port GbE PCI Express, UTP
511-1422
[C]
+
n/a
X7280A-2 3
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2 4
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
n/a
n/a
511-1422
[C]
Quad Port GbE PCI Express, UTP
501-7606
[C]
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
371-1954 [C]
Fan Tray Assembly
n/a
n/a
371-1955 [C]
HDD Fan Tray Assembly
n/a
n/a
371-2736 [C]
System Fans Assembly
371-1954 [C]
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCI2FC-EM2
[S]
375-3305
[C]
2Gb PCI-X Dual FC Host Adapter
n/a
SG-XPCI2FC-EM4-Z
[S]
7058528
[C]
4Gb PCI-X Dual FC Host Adapter
375-3399
[C]
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter
n/a
n/a
SG-XPCI2FC-QF4
[S]
7060890
[C]
4Gb PCI-X Dual FC Host Adapter
375-3294
[C]
n/a
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter
n/a
n/a
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter
n/a
Graphics
Option #
Manufacturing
Description
Previous
X3000A
[S]
375-3545
[C]
XVR-300 x8 Graphics Accelerator
n/a
530-3474 [C]
DVI-A(M) to HD15F Adapter, 49mm
n/a
530-3998 5
[C]
DMS-59 to Dual DVI-I Cable, 215mm
n/a
X3777
[S]
375-3433
[C]
XVR-200 Graphics Accelerator
n/a
5 Sun custom overmold to fit systems using the Jake and Elwood chassis.
I/O
Option #
Manufacturing
Description
Previous
n/a
F371-2368 [C]
PCI Assembly
n/a
n/a
371-1959
[C]
n/a
n/a
Tray 541274740005
n/a
Memory
Option #
Manufacturing
Description
Previous
X7800A
[S]
1GB (2 × 512MB DDR2) Memory Expansion Kit
370-6207
[C]
512MB DDR2 DIMM, 533 MHz
n/a
X7801A
[S]
2GB (2 × 1GB DDR2) Memory Expansion Kit
370-6208
[C]
1GB DDR2 DIMM, 533 MHz
n/a
X7802A
[S]
4GB (2 × 2GB DDR2) Memory Expansion Kit
370-6209
[C]
2GB DDR2 DIMM, 533 MHz
n/a
X7803A
[S]
8GB (2 × 4GB DDR2) Memory Expansion Kit
370-6210
[C]
4GB DDR2 DIMM
n/a
Miscellaneous
Option #
Manufacturing
Description
Previous
X4234A-Z
[S]
594-3954
Air Filter 10-Pack
n/a
n/a
X4353A-Z
[S]
594-4536
Air Filter for 4 Hard Disk Drive Chassis
n/a
Air Filter for 4 Hard Disk Drive Chassis n/a
X949A-4 6
[S]
594-2682
Wago DC Connector Set (10 pack)
n/a
n/a
Wago DC Connector Strain Relief n/a
Wago DC Connector Opening Lever n/a
n/a
7317766 [C]
Air Filter Media, 2U, 2 HDD, 10 pack
n/a
n/a
7317767 [C]
Air Filter Media, 2U, 4 HDD, 10 pack
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
300-1852
[C]
Type A214 550 Watt AC Input Power Supply
n/a
n/a
300-2006
[C]
Type D193 550 Watt DC Input Power Supply
n/a
n/a
371-1098
[F]
Power Distribution Board
n/a
PDB J3 to Disk Drive Interface J6 Cable 422747400007 n/a
Rack
Option #
Manufacturing
Description
Previous
X2089A
[S]
350-1387
19" 2-post Slide Rail Kit
n/a
X7901A-4
[S]
371-1478
19" 2-post Rackmount Kit
n/a
X7902A-4
[S]
371-1481
23" 2-post Rackmount Kit
n/a
X7904A-4
[S]
371-1479
600mm x 600mm Rackmount Kit
n/a
X8099A-4
[S]
371-1480
19" 4-post Slide Mount Kit
n/a
Removable Media
Option #
Manufacturing
Description
Previous
X4352A-Z 7
[S]
8× Slimline DVD-RW Drive Assembly
390-0337
[F]
8x PATA DVD-Writer/24x CD-Writer
n/a
X4356A-Z
[S]
DVD-Writer/CD-Writer
371-2261
DVD-ROM / CD-ROM Drive Bezel
n/a
540-7563
[F]
DVD-Writer/CD-Writer, PATA
n/a
8x PATA DVD-Writer/24x CD-Writer n/a
8x PATA DVD-Writer / 24x CD-Writer n/a
n/a
390-0251
[F]
Slimline 8X DVD-ROM / 24X CD-Writer
n/a
7 Option X4352A-Z includes the DVD Bezel (PN#541-0325)NOTE: DVD-ROM support requires the 2 Hard Disk Drive Cluster (part number 371-2661).
SCSI
Option #
Manufacturing
Description
Previous
SG-XPCI2SCSI-LM320
[S]
375-3191
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
SG-XPCIE2SCSIU320Z
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
SG-XPCIE8SAS-E-Z
[S]
7050793
[C]
PCI Express 8-Port Host Adapter
375-3487
[C]
SGXPCI2SCSILM320-Z
[S]
7050788
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
375-3365
9
[C]
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3365
8
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
n/a
375-3487
[C]
PCI Express 8-Port Host Adapter
n/a
8 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .9 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .
System Board
Option #
Manufacturing
Description
Previous
n/a
525-2146 [F]
SSCC NVRAM
n/a
n/a
541-1438 [F]
0MB 6-Core 1.0GHz System Board
n/a
System Board Assembly w/o UltraSPARC T1 n/a
n/a
n/a
CPU/Memory to I/O Board Cable n/a
n/a
541-1453 [F]
0MB 8-Core 1.2GHz System Board
n/a
System Board Assembly w/o UltraSPARC T1 n/a
n/a
n/a
CPU/Memory to I/O Board Cable n/a
n/a
541-1455 [F]
0MB 4-Core 1.0GHz System Board
n/a
System Board Assembly w/o UltraSPARC T1 n/a
n/a
n/a
CPU/Memory to I/O Board Cable n/a
n/a
541-2405 [F]
0MB 6-Core 1.0GHz System Board
n/a
System Board Assembly w/o UltraSPARC T1 n/a
n/a
n/a
CPU/Memory to I/O Board Cable n/a
n/a
541-2407 [F]
0MB 8-Core 1.2GHz System Board
n/a
System Board Assembly w/o UltraSPARC T1 n/a
n/a
n/a
CPU/Memory to I/O Board Cable n/a
n/a
541-2409 [F]
0MB 4-Core 1.0GHz System Board
n/a
System Board Assembly w/o UltraSPARC T1 n/a
n/a
n/a
CPU/Memory to I/O Board Cable n/a
System Service Processor
Option #
Manufacturing
Description
Previous
n/a
371-1962
[F]
Service Processor Assembly
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

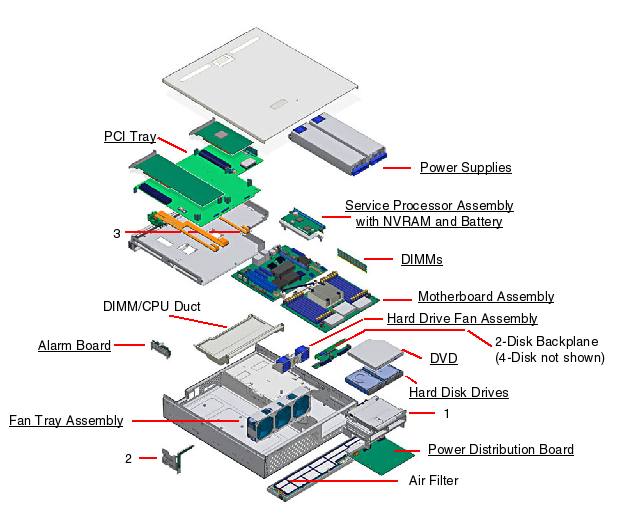

Code
Manufacturing Part#
Description
-
596-6336
Two Drive DC Base Chassis Assembly
1
Two Drive Cluster Assembly
-
Disk Drive Interface Board
-
NS
2-Disk Cluster Bracket 340747400008
NS
2-Disk Cluster Disk Interface to DVD Interface Cable 422747400022
-
596-6448
Two Drive AC Base Chassis Assembly
1
Two Drive Cluster Assembly
-
Disk Drive Interface Board
-
NS
2-Disk Cluster Bracket 340747400008
NS
2-Disk Cluster Disk Interface to DVD Interface Cable 422747400022
-
596-6878
Four Drive Base Chassis Assembly w/o Power Supply
1
Four Drive Cluster Assembly
-
Lower Disk Drive Interface Board
-
Upper Disk Drive Interface Board
-
-
-
2
371-1958 [F]
LED Assembly
-
3
371-1105
[C]
PCI Cable Assembly
-
-
NS
370-6110
19" 4-Post Rackmount Kit
NS
Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm
NS
371-1953
Chassis Subassembly
NS
NS
530-2889
RJ45 to DB25 Serial Port Adapter
NS
530-3623 [C]
Shielded RJ45 to RJ45 Cable, 4M
NS
565-1882
Wago DC Connector Assembly Kit
DC Connector Strain Relief
DC Connector Opening Lever
NS
n/a
LED Bracket 340747400033
NS
n/a
PCI Tray 21-Pin Cable 422747400009
NS
n/a
2-Disk Cluster SAS Cable 422747400021
NS
n/a
2-Disk Cluster SAS Cable 422747400016
NS
n/a
2-Disk Cluster IDE Cable 422747400012
NS
n/a
PCI Tray 21-Pin Cable 422747400011
NS
n/a
LED Cable 422747400014
NS
n/a
PCI Tray 41-Pin Cable 422747400010
NOTE: A two hard disk drive cluster Netra T2000 chassis (with or without DVD-ROM) cannot be field converted to a four hard disk drive cluster Netra T2000, or vice versa.
