DC Power Distribution Board

371-1098

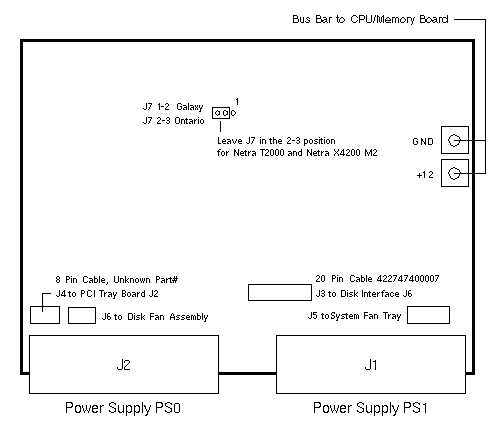

Bus Bar Installation

Netra T2000 Codename: Pelton Netra X4200 M2 Codename: Draco

Notes

1. Use two M4 × 4 Button Head Screws on the PDB side of the Bus Bar.
2. Use two M4 × 4 Button Head Screws on the CPU/Memory Board side of the Bus Bar.
3. The 8-Pin cable is not included with the PDB FRU.
4. The 20-Pin cable 422747400007 is included with the PDB FRU.
