Sun StorEdge 3510 FC Array - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Array Controller
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-3510-CTRL-1G 370-5537 [F] RAID Fibre Channel Controller, 1GB memory and Battery Backup (370-5545) n/a
n/a 370-5538 [F] Fibre Channel Expansion I/O Module (JBOD) n/a
n/a 370-5545 [C] Battery Module n/a
NOTE: SFPs plug into the array controller
Backplane/Centerplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 370-5535 [F] 2U Chassis + Midplane (RAID/JBOD) n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
X9721A 537-1036 [F] Fibre Channel Optical Cable LC/SC, 0.4M n/a
X9740A 537-1062 [F] Fibre Channel Optical Cable LC/LC, 100M n/a
X311L [S] Localized Power Cord Kit - North America/Asia
180-1097 [C] Buy IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black n/a
X312L [S] Localized Power Cord Kit - Continental Europe
180-1993 [C] IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black n/a
X314L [S] Localized Power Cord Kit - Swiss
7049124 [C] IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black 180-1994 [C]
X317L [S] Localized Power Cord Kit - U.K.
180-1997 [C] Buy IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black n/a
X383L [S] Localized Power Cord Kit - Danish
180-1995 [C] IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black 530-1819 [C]
X384L [S] Localized Power Cord Kit - Italian
180-1996 [C] IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black n/a
X386L [S] Localized Power Cord Kit - Australian
180-1998 [C] IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black n/a
X9722A [S] 537-1035 [F] Fibre Channel Optical Cable LC/SC, 2M n/a
X9723A [S] 537-1033 [F] Fibre Channel Optical Cable LC/SC, 5M n/a
X9724A [S] 537-1034 [F] Fibre Channel Optical Cable LC/SC, 15M n/a
X9730A [S] 537-1057 [F] Fibre Channel Optical Cable LC/LC, 0.8M n/a
X9732A [S] 537-1041 [F] Fibre Channel Optical Cable LC/LC, 2M, 2.0M n/a
X9733A [S] 537-1042 [F] Fibre Channel Optical Cable LC/LC, 5M n/a
X9734A [S] 537-1043 [F] Fibre Channel Optical Cable LC/LC, 15M n/a
X9735A [S] 537-1053 [F] Fibre Channel Optical Cable LC/SC, 25M n/a
X9736A [S] 537-1051 [F] Fibre Channel Optical Cable LC/LC, 25M n/a
X9737A [S] 537-1055 [F] Fibre Channel Optical Cable LC/SC, 50M n/a
X9738A [S] 537-1052 [F] Fibre Channel Optical Cable LC/LC, 50M n/a
n/a 180-1994 [C] IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black n/a
n/a 370-5540 [F] Fibre Channel Expansion Cable, 0.5M n/a
n/a 370-6627 [F] DB-9M to DB-9F Serial Cable, 1.8M n/a
n/a 370-6629 [F] Ethernet Cable, 35-88730002 n/a
n/a 370-6630 [F] DC Input Power Cable n/a
n/a 371-0306 [F] Ethernet Cable n/a
n/a 371-0307 [F] DC Input Power Cable n/a
n/a 530-1819 [C] Localized Power Cord Kit - Danish n/a
NOTE: SFPs plug into the array controller
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-3510-146GB-10K 540-5626 1 [F] 146GB - 10000 RPM FC-AL, Disk Assembly with one of the following disks: n/a
  • Seagate ST3146807FC [ST314680FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAP3147FC [MAP3147F SUN146G]
    (146.8GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi DK32EJ-14FC [DK32EJ14FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3146707FC [ST314670FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAT3147FC [MAT3147F SUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1014FA [HUS1014FASUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAW3147FC [MAW3147FCSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1014FA [HUS1014FASUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3146707FC [ST314670FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
540-6572 [F] 146GB - 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks: n/a
  • Fujitsu MAW3147FC [MAW3147FCSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1014FA [HUS1014FASUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3146707FC [ST314670FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
XTA-3510-146GB-15K 540-6495 [F] 146GB - 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks: n/a
  • Seagate ST3146854FC [ST314685FSUN146G]
    (146GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAX3147FC [MAX3147FCSUN146G]
    (146GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3146855FC [ST314655FSUN146G]
    (146GB - 15000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS153014VLF400 [HUS1514FBSUN146G]
    (146.8GB - 15000 RPM - FC-AL Disk)
 n/a
540-6719 [F] 146GB - 15000 RPM FC-AL, Disk Assembly FRU with 1 of the following disks: n/a
  • Fujitsu MAU3147FC [MAU3147FCSUN146G]
    (146GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3146855FC [ST314655FSUN146G]
    (146GB - 15000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS153014VLF400 [HUS1514FBSUN146G]
    (146.8GB - 15000 RPM - FC-AL Disk)
 n/a
XTA-3510-300GB-10K 540-6367 2 [F] 300GB - 10000 RPM FC-AL, Disk Assembly with one of the following disks: n/a
  • Seagate ST3300007FC [ST330000FSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAT3300FC [MAT3300F SUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAW3300FC [MAW3300FCSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3300007FC [ST330000FSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
540-6574 [F] 300GB - 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks: n/a
  • Fujitsu MAW3300FC [MAW3300FCSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3300007FC [ST330000FSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
XTA-3510-36GB-15K 540-5628 [F] 36.4GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks: n/a
  • Seagate ST336753FC [ST336753FSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAS3367FC [MAS3367F SUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST336754FC [ST336754FSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAU3036FC [MAU3036FCSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAX3036FC [MAX3036FCSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
XTA-3510-73GB-10K 540-5629 3 [F] 73.4GB - 10000 RPM FC-AL, Disk Assembly with one of the following disks: n/a
  • Seagate ST373307FC [ST373307FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAP3735FC [MAP3735F SUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi DK32EJ-72FC [DK32EJ72FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373207FC [ST373207FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAT3073FC [MAT3073F SUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
540-6570 [F] 73.4GB - 10000 RPM FC-AL, Disk assembly FRU with 1 of the following disks: n/a
  • Fujitsu MAW3073FC [MAW3073FCSUN73G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1073FA [HUS1073FASUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373207FC [ST373207FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
XTA-3510-73GB-15K 540-6098 4 [F] 73.4GB - 15000 RPM FC-AL, Disk Assembly with one of the following disks: n/a
  • Seagate ST373453FC [ST373453FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAS3735FC [MAS3735F SUN36G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373454FC [ST373454FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAU3073FC [MAU3073FCSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAX3073FC [MAX3073FCSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373455FC [ST373455FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS153073VLF400 [HUS1573FBSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
540-6571 [F] 73.4GB - 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks: n/a
  • Seagate ST373454FC [ST373454FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAX3073FC [MAX3073FCSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373455FC [ST373455FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS153073VLF400 [HUS1573FBSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
XTA-3510-300GB15KZ [S] 540-7159 [F] 300GB - 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks: n/a
  • Seagate ST3300655FC [ST330055FSUN300G]
    (300GB - 15000 RPM - FC-AL Disk)
 n/a
  • Hitachi V-B HUS153030VLF400 [HUS1530FBSUN300G]
    (300GB - 15000 RPM - FC-AL Disk)
 n/a
XTA-3510-73GB-15KZ [S] 540-6571 [F] 73.4GB - 15000 RPM FC-AL, Disk assembly FRU with 1 of the following disks: n/a
  • Seagate ST373454FC [ST373454FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAX3073FC [MAX3073FCSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373455FC [ST373455FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS153073VLF400 [HUS1573FBSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
n/a n/a Drive Mounting Bracket, 82-00000983 (Manufacturer Part Number) n/a
1 Assembly 540-5626 was replaced by 540-6572 in option XTA-3510-146GB-10K in October 2006. (WO_34374)
2 Assembly 540-6367 was replaced by 540-6574 in option XTA-3510-300GB-10K in October 2006. (WO_34374)
3 Assembly 540-5629 was replaced by 540-6570 in option XTA-3510-73GB-10K in October 2006. (WO_34374)
4 Assembly 540-6098 was replaced by 540-6571 in option XTA-3510-73GB-15K in October 2006. (WO_34374)
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
(X)5133A [S] 501-6640 Fibre Channel PCI Adapter n/a
SFP-SW-4GB 5 [S] 371-0294 [F] 4Gb/Sec Short Wave SFP Transceiver n/a
SFP-SW-4GB-4PK 6 [S] 371-0294 [F] 4Gb/Sec Short Wave SFP Transceiver n/a
SG-XPCI1FC-EM2 [S] 375-3304 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-JF2 [S] 375-3156 JNI 2Gb PCI Single FC Host Adapter n/a
SG-XPCI1FC-QF2 7 [S] 375-3102 2Gb PCI Single FC Host Adapter n/a
SG-XPCI1FC-QF4 [S] 375-3354 4Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-QL2 [S] 375-3383 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-QLC [S] 375-3253 Entry-Level 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-QLC-Z [S] 375-3364 Entry-Level 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI2FC-EM2 [S] 375-3305 2Gb PCI-X Dual FC Host Adapter n/a
SG-XPCI2FC-JF2 [S] 375-3157 JNI 2Gb PCI Dual FC Host Adapter n/a
SG-XPCI2FC-QF2 8 [S] 375-3108 2Gb PCI/PCI-X Dual FC Host Adapter n/a
  • 240-4839
  • Low Profile Bracket
 n/a
SG-XPCI2FC-QF2-Z [S] 375-3363 2Gb PCI/PCI-X Dual FC Host Adapter n/a
  • 240-4839
  • Low Profile Bracket
 n/a
SG-XPCI2FC-QF4 [S] 7060890 4Gb PCI-X Dual FC Host Adapter 375-3294
SG-XPCIE1FC-EM4 [S] 375-3396 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
7053428 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-QF4 [S] 375-3355 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE2FC-EM4 [S] 375-3397 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
7053427 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FC-QF4 [S] 375-3356 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FCGBE-E-Z [S] 371-4018 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex n/a
SG-XPCIE2FCGBE-Q-Z [S] 371-4017 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic n/a
X6727A [S] 375-3030 PCI Dual FC Host Adapter+ n/a
X6757A [S] 375-3048 SBus Dual FC Network Adapter n/a
X6767A 9 [S] 375-3102 2Gb PCI Single FC Host Adapter n/a
X6768A 10 [S] 375-3108 2Gb PCI/PCI-X Dual FC Host Adapter n/a
  • 240-4839
  • Low Profile Bracket
 n/a
X6799A [S] 375-3019 11 PCI Single FC Host Adapter n/a
X9279A [S] 370-6697 2Gb/Sec Single FC PCI-X Host Adapter n/a
n/a 370-5211 [F] 2Gb/Sec Short Wave SFP Transceiver n/a
n/a 371-0099 [F] 2Gb/Sec Short Wave SFP Transceiver n/a
n/a 375-3294 4Gb PCI-X Dual FC Host Adapter n/a
5 This x-option is a Small Form Pluggable shortwave Fibre Channel optical transceiver capable of 4Gb, 2Gb, and 1Gb transfer rates.
6 The x-option is a 4 pack of Small Form Pluggable shortwave Fibre Channel optical transceivers capable of 4Gb, 2Gb, and 1Gb transfer rates.
7 Support of this HBA is provided for Red Hat AS 2.1 and 3.0, and for Solaris x86 9 Update 6, using Qlogic's native driver.
8 Support of this HBA is provided for Red Hat AS 2.1 and 3.0, and for Solaris x86 9 Update 6, using Qlogic's native driver.
9 X6767A changed to SG-XPCI1FC-QF2 in July 2003
10 X6768A changed to SG-XPCI2FC-QF2 in July 2003
11 375-3019 with SC connector is no longer available. The substitute adapter uses a smaller LC connector.
NOTE: The SG-(X)PCI1FC-EM2 and SG-(X)PCI2FC-EM2 HBA will not support private loop topology configurations.
NOTE: For FRU/CRU status, see host system's Full Components List.
NOTE: Direct attachment of a host bus adapter (HBA) to the Fibre Channel Expansion I/O Module (JBOD) is not supported.
Power
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-3000-2UAC-KIT [S] 370-6776 12 [F] AC Power Supply / Fan Module, 2U n/a
371-0108 [F] 420 Watt AC Input Power Supply n/a
XTA-3000-2UDC-KIT [S] 370-6798 [F] DC Power Supply / Fan Module, 2U n/a
371-0109 [F] 420 Watt DC Input Power Supply n/a
XTA-3310-DC-KIT [S] 370-5527 [F] DC Power Supply / Fan Module n/a
n/a 370-5398 [F] 420 Watt AC Power Supply / Fan Module n/a
12 Power supply 370-6776 replaces the older power supply 370-5398.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
XTA-3000-2URK-19C 370-5649 Telco Rackmount Kit, Center Mount, 2U, 19" Wide n/a
XTA-3000-2URK-19F 370-5650 Telco Rackmount Kit, Flush/Front Mount, 2U, 19" Wide n/a
XTA-3000-2URK-19U 370-6166 SE3000 2U Family Universal Rackmount Kit n/a
XTA-3310-DESK-KIT 370-6179 Sun StorEdge 3000 Family Tabletop Conversion Kit, includes outer skin with feet and screws n/a
XTA-3000-2URK-19CZ [S] 371-0828 Telco Rackmount Kit, Center Mount, 2U, 19" Wide n/a
XTA-3000-2URK-19FZ [S] 371-0829 Telco Rackmount Kit, Flush/Front Mount, 2U, 19" Wide n/a
XTA-3000-2URK-19UZ [S] 371-0827 SE3000 2U Family Universal Rackmount Kit n/a
XTA-3310-RK-19C [S] 370-5649 Telco Rackmount Kit, Center Mount, 2U, 19" Wide n/a
XTA-3310-RK-19F [S] 370-5650 Telco Rackmount Kit, Flush/Front Mount, 2U, 19" Wide n/a
XTA-3310-RK-19L [S] 370-5648 Rackmount Kit, 2U, 19" Wide, 28"-36" Deep (use with StorEdge 72" Expansion Cabinet) n/a
XTA-3310-RK-19S [S] 370-5643 Rackmount Kit, 2U, 19" Wide, 22"-28" Deep (use with Sun Rack 900) n/a
Switch/Hub
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XSWM6140-64P 595-7135 McData Intrepid 6140 140-port Switch with 64 Ports active, option comes with rack mount kit n/a
  • 64-Port 6140 Switch
 n/a
SG-XSW16-2GB [S] 540-5404 [F] Sun StorEdge Network 2GB FC Switch-16 n/a
SG-XSW16-32P [S] 540-4751 [F] Sun StorEdge Network FC Switch-16 n/a
SG-XSW64-BASE [S] 370-5790 64 Port Base Unit 2Gb FC Switch (32 ports included with base unit) n/a
SG-XSW64-BLADE-8P [S] 370-5847 [F] 8 Port 2Gb FC Blade (Add up to 4 to SG-XSW64-BASE to achieve 64 ports) n/a
SG-XSWBRO12000-32P [S] 370-5748 Brocade Silkworm 12000 Switch with 32 Ports n/a
SG-XSWBRO12000-64P [S] 370-4749 Brocade Silkworm 12000 Switch with 64 Ports n/a
SG-XSWBRO24K-32P [S] 370-6820 [F] 16-Port Switch Module n/a
370-7046 Brocade 24000 Director 32-Port Switch n/a
SG-XSWBRO24K-MOD [S] Brocade 24000 Director 16-port FC Switching Blade
370-6820 [F] 16-Port Switch Module n/a
SG-XSWBRO3200 [S] 370-5769 [F] Brocade Silkworm 3200 8-Port FC Switch n/a
SG-XSWBRO3250 [S] 370-6824 [F] Brocade 3252 Value Line 8-Port FC Switch n/a
370-7047 Brocade 3250 8-Port FC Switch n/a
SG-XSWBRO3250VL2 [S] 370-6824 [F] Brocade 3252 Value Line 8-Port FC Switch n/a
SG-XSWBRO3800 [S] 370-4949 [F] [S] Brocade Silkworm 3800 16-Port FC Switch n/a
SG-XSWBRO3850 [S] 370-6826 [F] Brocade 3852 Value Line 16-Port FC Switch n/a
370-7048 Brocade 3850 16-Port FC Switch n/a
SG-XSWBRO3850VL2 [S] 370-6826 [F] Brocade 3852 Value Line 16-Port FC Switch n/a
SG-XSWBRO3900 [S] 370-6078 [F] Brocade Silkworm 3900 32-Port FC Switch n/a
SG-XSWBRO4100-16P [S] 370-7756 [F] Brocade Silkworm 4100 FC Switch (16 Ports) n/a
SG-XSWBRO4100-32P [S] 370-7770 Brocade Silkworm 4100 FC Switch (32 Ports) n/a
SG-XSWM6140-RK64I [S] 595-7137 McData Intrepid 6140 140-port Switch with 64 ports active in a McData Fabricenter Rack (International power) n/a
  • International Fabricenter Rack with 64-Port 6140 Switch
 n/a
SG-XSWM6140-RK64P [S] 595-7136 McData Intrepid 6140 140-port Switch with 64 ports active in a McData Fabricenter Rack (US power) n/a
  • Domestic Fabricenter Rack with 64-Port 6140 Switch
 n/a
SG-XSWMD4300-12P [S] 595-6748 2GB Short Wave SFP GBIC 4-Pack (×3) n/a
  • 2Gb/Sec Short Wave SFP Transceiver
 n/a
595-7161 12-Port Sphereon 4300 Switch Assembly n/a
  • McData Sphereon 4300 12-port Switch
 n/a
SG-XSWMD4500-8P [S] 370-6085 McData Sphereon 4500 24-port Switch with 8 ports activated n/a
SG-XSWMD4500-UPG [S] 595-7116 McData Sphereon 4500 8 port activation license key, activates 8 additional ports n/a
SG-XSWMD6064-32P [S] 595-7020 McData 6064 Director w/32 Ports n/a
  • 32-Port 6064 Switch (595-7020-01)
 n/a
SG-XSWQLG5200-20P [S] 370-7694 13 QLogic 5200 Switch (20 ports active) n/a
SG-XSWQLG5200-8P [S] 370-7664 [F] QLogic 5200 Switch (8 ports active) n/a
n/a 540-4372 [F] StorEdge Network FC Switch-8 n/a
13 Sixteen 2-Gb ports and four 10-Gb ports activated.

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

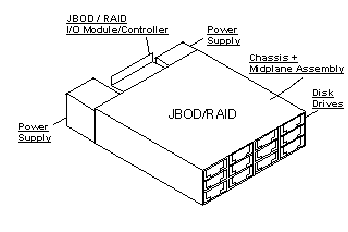

Sun StorEdge 3510 FC Array Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
NS 370-6007 Air Management Blank Sled, Disk Drive Slot Filler (Option XTA-3000-AMBS)
NS 370-7589 [F] LED/Reset Switch Board
NS 371-0718 [F] 2U SE3000 L/R Plastic Ear (for chassis)
NS n/a DB-9M to DB-25M Adapter, 35-00000109
NS n/a Front Bezel Key, 82-00000909
NS n/a Power Cord Clamp, 82-00000829
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
