Brocade Silkworm 3800 16-Port Switch

Options SG-SNFCS48 / SG-XSWBRO3800
Options XT8-BR-3802-0011 / XT9-SWBRO3800

Premier Support End Date = June 2012
Follow this link to view Service Life End Dates.

595-6496	595-6316	595-6814
SG-SNFCS48 Switch 380-0668 No FRU Available Discontinued 04/03	XT8-BR-3802-0011 Switch 370-4949 FRU 370-4949 Discontinued 05/03	SG-XSWBRO3800 Switch 370-4949 FRU 370-4949

370-4949	370-5774	370-5776	370-7040
Switch FRU	Power Supply FRU	Fan Tray FRU	XT9-SWBRO3800 No FRU Available

Front View

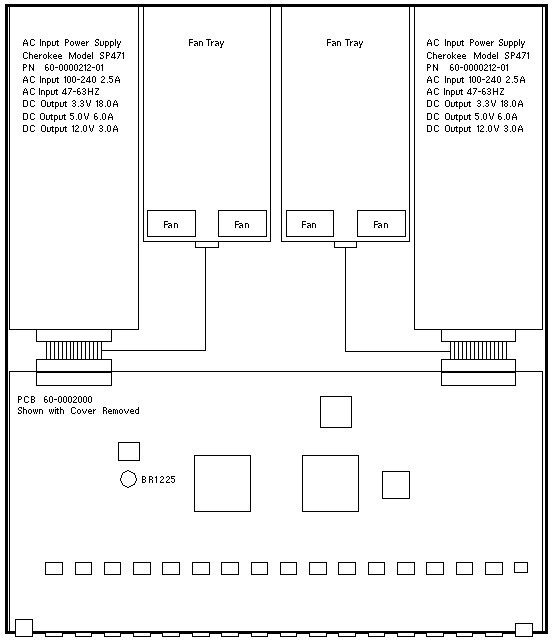

Overhead Cutaway View

Table Legend

[F] = Field Replaceable Unit (FRU) [S] = Supported, but can no longer be ordered

Full Components List

Notes

1. SFP Transceivers were included with option XT8-BR-3802-0011.
2. SFP Transceivers are not included with option SG-XSWBRO3800.
3. The 370-4949-02 includes Fabric Watch and Performance Monitor.
4. Brocade part numbers 53-xxxx, 55-xxxx, and 60-xxxx have no Sun part numbers.

Option Notes

1. SG-SNFCS48 was sold with the StorEdge 9900, StorEdge L5500, and StorEdge L6000.
2. XT8-BR-3802-0011 was sold with the StorEdge 9900.
3. SG-XSWBRO3800 was announced in December 2002 with SAN 4.1.
4. XT9-SWBRO300, announced in June 2004, is sourced from Hitachi.
5. SG-130078-01 was sold for the StorEdge L5500 and StorEdge L6000 SilkWorm 3800.

References

1. Brocade 3800 Documentation
