RAID I/O Module
Option XTA-3510-CTRL-1G
Option XTA-3510-CTRL-1GZ
 |
|

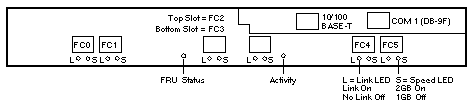

| Rear View |
 |
.4 Meter LC-SC Cable 537-1036, Option 9721
2 Meter LC-SC Cable 537-1035, Option 9722
5 Meter LC-SC Cable 537-1033, Option 9723
15 Meter LC-SC Cable 537-1034, Option 9724
.8 Meter LC-LC Cable 537-1057, Option 9730
2 Meter LC-LC Cable 537-1041, Option 9732
5 Meter LC-LC Cable 537-1042, Option 9733
15 Meter LC-LC Cable 537-1043, Option 9734 |

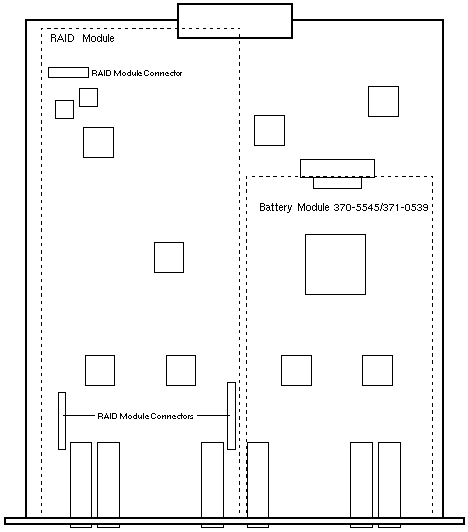

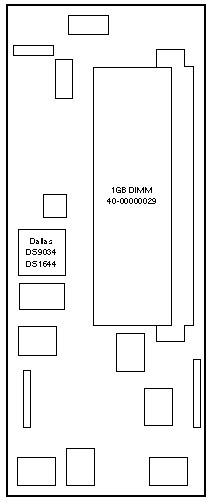

RAID Module Top Side
Dot Hill 66-00000056 (370-5537) |
 |
|
|

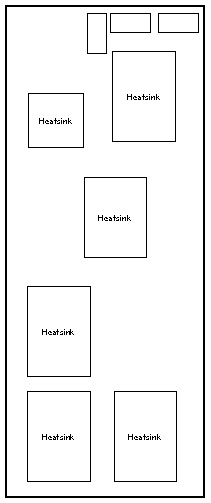

RAID Module Bottom Side
Dot Hill 66-00000056 (370-5537) |
 |
|
| StorEdge 3510 Codename: Minnow 2U FC |
Notes
- XTA-3510-CTRL-1G <=595-6578-03 does not include
Shortwave SFP Transceivers.
- XTA-3510-CTRL-1G 595-6578-04 includes two Shortwave SFP Transceivers.
References
 Sun StorEdge 3510 FC Array Documentation.
|
