QLogic SANbox 5200 Switch

Options SG-XSWQLG5200-8P / SG-XSWQLG5200-20P

Premier Support End Date = June 2011
Follow this link to view Service Life End Dates.

370-7664 594-0607 594-0608
Switch FRU
License Key for
8× 2Gbps Ports		 SG-XSWQLG5200-8P
Switch 370-7664
License Key for
8× 2Gbps Ports
8 Short Wave SFPs		 SG-XSWQLG5200-20P
Switch 370-7694
License Key for
16× 2Gbps Ports
4× 10Gbps Ports
16 Short Wave SFPs
594-0609 594-0610
SG-XSWQLG5200-CBL
9" Cable 530-3369		 SG-XSWQLG5200-RK
Rack Mount Option
852-1953 852-1954
SG-XSWQLG5200-UPG
4 Port License Key
4 Short Wave SFPs		 SG-XSWQLG5200-10UP
10Gbps License Key
3" Cable 530-3368

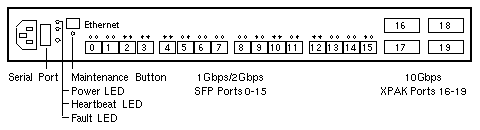

Front View

Full Components List


Notes

  1. XPAK Transceivers are not included with the switch options.
  2. Connect up to four switches with 3" and 9" XPAK Cables 530-3368 and 530-3369.
  3. QLogic Power Cord WCL250 is included with the switch options.
