Sun Ultra 45 Workstation - Full Components List

Batteries Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel Graphics I/O IDPROM Memory Miscellaneous Power Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5949 [C]	3V Lithium Battery CR2032	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-2961	RJ45 Cat5 Ethernet Cable	n/a
n/a	n/a	Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1355A-2 [S]	371-0982	2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable	n/a
	375-3296 [C]	Quad Port High Speed Serial Interface PCI-X (HSI/U)	n/a
X2156A-2 [S]	375-3420 [C]	Serial Asynchronous Interface PCI (SAI/P) 3.0	n/a
X6000A 1 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	F373-0020	Disk Backplane	n/a
	373-0020 [F]	Disk Backplane	n/a
	n/a	Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)	n/a
	n/a	Ultra 25/45 Disk Backplane SAS/SATA Data Cable 422739300001 (75mm)	n/a
	n/a	Ultra 40 Disk Backplane SATA Data Cable 422740700002 (230 mm)	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS1CE-146G15K [S]	146GB - 15000 RPM SAS Disk Option
	540-7088 [C]	146GB - 15000RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:	540-6554 [C]
	390-0334	Seagate ST3146855SS [ST314655SSUN146G] (146GB - 15000 RPM - SAS Disk)	n/a
	390-0338	Seagate ST3146854SS [ST314654SSUN146G] (146GB - 15000 RPM - SAS Disk)	n/a
	390-0371	Hitachi HUS153014VLS300 [HUS1514SBSUN146G] (146GB - 15000 RPM - SAS Disk)	n/a
	540-6562	1" SPUD Bracket	n/a
XRA-ST1CE-250G7K 2 [S]	250GB - 7200 RPM SATA Disk Option
	540-6485 [C]	250GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0243	Seagate ST3250824AS [STN7225SASUN250G] (250GB - 7200 RPM - SATA Disk)	n/a
	390-0246	Hitachi HDT722525DLA380 [HDS7225SBSUN250G] (250GB - 7200 RPM - SATA Disk)	n/a
	390-0352	Hitachi HDT725025VLA380 [HDS7225SCSUN250G] (250GB - 7200 RPM - SATA Disk)	n/a
	390-0354	Seagate ST3250820NS [ST32500NSSUN250G] (250GB - 7200 RPM - SATA Disk)	n/a
	540-6562	1" SPUD Bracket	n/a
	540-6666 [C]	250GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0295	Hitachi HDT722525DLA380 [HDS7225SBSUN250G] (250GB - 7200 RPM - SATA Disk)	n/a
	540-6562	1" SPUD Bracket	n/a
XRC-ST1CE-160G7KZ [S]	160GB - 7200 RPM SATA Disk Option
	540-7112 [C]	160GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0317	Hitachi HDT722516DLA380 [HDS7216SASUN160G] (160GB - 7200 RPM - SATA Disk)	n/a
	390-0318	Seagate ST3160812AS [STA7216SASUN160G] (160GB - 7200 RPM - SATA Disk)	n/a
	390-0351	Hitachi HDT721616PLA380 [HDS7216SBSUN160G] (160GB - 7200 RPM - SATA Disk)	n/a
	540-6562	1" SPUD Bracket	n/a
n/a	540-6554 [C]	146GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0234	Seagate ST3146854SS [ST314654SSUN146G] (146GB - 15000 RPM - SAS Disk)	n/a
	540-6562	1" SPUD Bracket	n/a

2 Assembly 540-6485 replaced 540-6666 in option XRA-ST1CE-250G7K in February 2007. (WO_35083)

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1027A-Z [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4151A-2 [S]	501-7430 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4445A [S]	501-6738 [C]	Quad GigaSwift PCI-X Ethernet (QGE-X)	n/a
X5544A-4 [S]	10Gb PCI-X Ethernet Adapter, no transceiver
	501-7413 [C]	10Gb PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
X5558A [S]	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
X4150A-2 [N]	501-7415 [C]	GigaSwift Ethernet UTP (GCS)	n/a
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0703 [F]	3-Fan Tray	n/a
n/a	F373-0019	Fan Board	n/a
	373-0019 [F]	Fan Board	n/a
	n/a	Motherboard J20 to Fan Board Cable 422739300002	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QLC-Z [S]	375-3364 [C]	Entry-Level 2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [C]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	375-3363 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
	240-4839	Low Profile Bracket	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3000A [S]	375-3545 [C]	XVR-300 x8 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 3 [C]	DMS-59 to Dual DVI-I Cable, 215mm	530-3459 [C]
X4240A [S]	605-4668	XVR-300X16 Graphics Accelerator	n/a
	375-3458 [C]	XVR-300 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 4 [C]	DMS-59 to Dual DVI-I Cable, 215mm	530-3459 [C]
X7295A [S]	375-3292 [C]	XVR-2500 Graphics Accelerator	n/a
X7296A [S]	375-3290 5 [C]	XVR-100 Graphics Accelerator (64MB)	n/a
n/a	375-3454 [C]	XVR-2500 Graphics Accelerator	n/a

3 Sun custom overmold to fit systems using the Jake and Elwood chassis. Cable 530-3998 replaced 530-3459 in option X4240A in December 2007. 4 Sun custom overmold to fit systems using the Jake and Elwood chassis. Cable 530-3998 replaced 530-3459 in option X4240A in December 2007. 5 Refer to FAB article 1001156.1 fuzzy or blurry video with the XVR-100 Graphics Accelerator.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	F373-0021	Front I/O Board I/O Assembly	n/a
	373-0021 [F]	Front I/O Board Assembly	n/a
	n/a	Motherboard J36 to I/O J3 USB Cable 422740700004	n/a
	n/a	Motherboard J3 to I/O J2 Audio/Power Cable 422739300005	n/a

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
n/a	525-2180	SEEPROM 2x MAC	83xxxxxx

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X8703A [S]	540-6466 [C]	Qty 2 - 512MB DIMMs (1GB Memory Assembly)	n/a
	370-7972	512MB PC2700 DIMM	n/a
X8704A [S]	540-6467 [C]	Qty 2 - 1GB DIMMs (2GB Memory Assembly)	n/a
	370-7973	1GB PC2700 DIMM	n/a
X8711A [S]	540-6468 [C]	Qty 2 - 2GB DIMMs (4GB Memory Assembly)	n/a
	370-7974	2GB PC2700 DIMM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X2136A	370-6200	Rear Guide Kit	n/a
	375-3203 [C]	SunPCi IIIpro 1.6GHz Co-Processor Card, 256MB memory	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1800 [F]	1000 Watt AC Input Power Supply	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X7277A [S]	371-1106	8x DVD-Writer / 24x CD-Writer	n/a
	371-2549	8x DVD-Writer / 24x CD-Writer	n/a
	373-0018	DVD Paddleboard	n/a
	390-0403	8x PATA DVD-Writer / 24x CD-Writer	n/a
n/a	F371-1106 6 [C]	8x DVD-Writer/24x CD-Writer	n/a
	371-1106	8x DVD-Writer / 24x CD-Writer	n/a
	371-2549	8x DVD-Writer / 24x CD-Writer	n/a
	373-0018	DVD Paddleboard	n/a
	390-0403	8x PATA DVD-Writer / 24x CD-Writer	n/a
	n/a	Motherboard J11 to DVD Cable	n/a

6 A #00 Philips Screwdriver is required to service the DVD-ROM.

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI2SCSI-LM320 [S]	375-3191 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SGXPCI2SCSILM320-Z [S]	7050788 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	375-3365 8 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
X4422A-2 [S]	501-7490 [C]	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3365 7 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a

7 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1. 8 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	375-3277 [F]	Motherboard 1 × 1.6GHz UltraSPARC IIIi 0MB	n/a
	371-0083	CPU Fan/Heatsink	n/a
	375-3506	Motherboard with 1 CPU Socket	375-3279
n/a	375-3278 [F]	Motherboard 2 × 1.6GHz UltraSPARC IIIi 0MB	n/a
	371-0083	CPU Fan/Heatsink	n/a
	375-3279	Motherboard with 2 CPU Sockets	n/a
n/a	375-3552 [F]	Motherboard 1 × 1.6GHz UltraSPARC IIIi 0MB	n/a
	371-0083	CPU Fan/Heatsink	n/a
	375-3554	Motherboard with 1 CPU Socket	n/a
n/a	375-3553 [F]	Motherboard 2 × 1.6GHz UltraSPARC IIIi 0MB	n/a
	371-0083	CPU Fan/Heatsink	n/a
	375-3555 [F]	Motherboard with 2 CPU Sockets	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

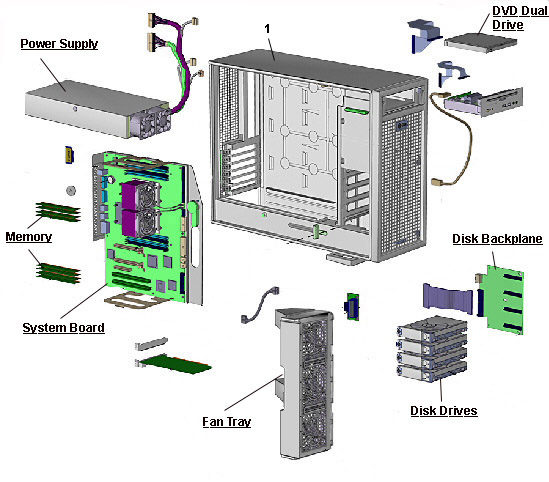

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	380-1335	Base Chassis Assembly
NS	371-1568	Filler panel for Optical Bay, Option 8017A [S]
NS	530-3459 [C]	DMS-59 to Dual DVI-I Cable, 215mm
