Seagate ST3250820NS (250.0GB)

3 1/2" 7200 RPM   Serial ATA 3.0Gb/s

Options 8011A / TA-ST1CF-250G7K
Options XRA-ST1CE-250G7K / XRA-ST1CH-250G7KZ
Options XRB-ST1CE-250G7K / XRC-ST1CE-250G7K
Options XTA-ST1NJ-250G7K

390-0354
Barracuda ES

540-6485	540-7111	540-7511	540-7604	541-1468
Spud Bracket FRU 1" Bracket 540-6562 Option 8011A XRA-ST1CE-250G7K XRB-ST1CE-250G7K	5220 NAS FRU 1" Bracket 541-1406 TA-ST1CF-250G7K	Spud Bracket FRU 1" Bracket 540-6562 XRC-ST1CE-250G7K	J4200 FRU Interposer 570-1181 Tray 570-1182 XTA-ST1NJ-250G7K See Notes	7210/X4500/X4540 FRU 1" Bracket 541-0456 XRA-ST1CH-250G7KZ

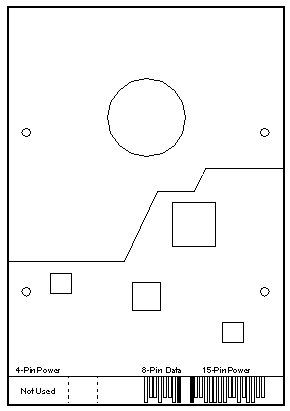

Bottom View

Notes

1. Drive 390-0354 was released and added to 540-6485 in May 2007. (WO_36820)
2. Drive 390-0354 was added to 541-7111 in June 2007. (WO_37111)
3. Drive 390-0354 was added to 541-1468 in July 2007. (WO_37357)
4. Assembly 540-7511 with 390-0354 was released in July 2007. (WO_37351)
5. Assembly 540-7604 with 390-0354 was released in May 2008. (WO_39168)
6. Assembly 540-7727 with 390-0354 was waivered in April 2008. (WO_38893)
7. Drive 390-0354 does not include a World-Wide-Name required for Multipathing.
   Drive 390-0354 was removed from 540-7604 in August 2009. (WO_40319)
8. 390-0354 was used in 541-3678 in September 2009 on Sun Fire X4540 by deviation. (WO_42089)
9. 390-0354 was used in 541-3678 in September 2009 on Storage 7210 by deviation. (WO_42093)
10. The Seagate Model Number on the serial number label is ST3250820NS.
11. The Sun Model Number on the serial number label is ST32500NSSUN250G.
12. The Product in Identify Device data bytes 31-38 is ST32500NSSUN250G.
