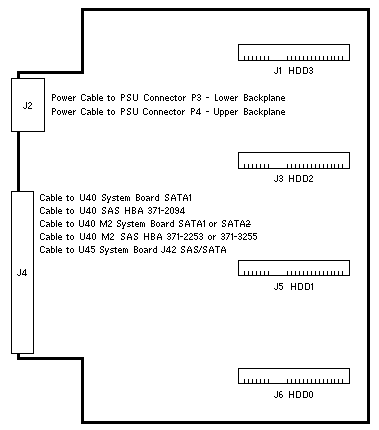

4-Slot SAS/SATA Disk Backplane

Option 4213

F373-0020
Assembly/FRU Backplane 373-0020 Assy 411739300011 PCB 316739300003 Ultra 40 SATA Data Cable 422740700002 Ultra 25/45 SAS/SATA Data Cable 422739300001 Ultra 40 M2 SAS Cable Kit 422755900001

Ultra 25 Codename: South Side Ultra 40 Codename: Sirius Ultra 40 M2 Codename: Stuttgart Ultra 45 Codename: Chicago

Ultra 40 M2 Notes

1. Set the solder side switch to Master for lower backplane drives HDD0-HDD3.
2. Set the solder side switch to Slave for upper backplane drives HDD4-HDD7.
3. SATA Data Cable 422740700002 has no Sun part number and no option.
   SATA Data Cable 422740700002 (U40) is not included with Backplane Option 4213.
   SATA Data Cable 422739300001 (U25/U45) is not included with Backplane Option 4213.
   SATA Data Cable 422755900001 (U40 M2) is included with Backplane Option 4213.

4. The switch was added to 373-0020-02 in October 2006. (WO_34043)

References

1. Sun Ultra 25 Workstation Documentation.
2. Sun Ultra 40 Workstation Documentation.
3. Ultra 40 Service, Diagnostics, and Troubleshooting Manual, 819-3952.
4. Sun Ultra 40 M2 Workstation Documentation.
5. Sun Ultra 45 Workstation Documentation.
