Sun Fire X4275 Server - Full Components List

Batteries CPU Module Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part
System Notes: If this unit is part of an Exadata V2, please reference the Oracle System Handbook entry for Exadata V2

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X5861A-2U [S]	371-4298 [F]	2.93GHz Intel Quad-Core Xeon X5570, 8MB, 95W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X5862A-2U [S]	371-4299 [F]	2.80GHz Intel Quad-Core Xeon X5560, 8MB, 95W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X5863A-2U [S]	371-4300 [F]	2.53GHz Intel Quad-Core Xeon E5540, 8MB, 80W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X5864A-2U [S]	371-4302 [F]	2.26GHz Intel Quad-Core Xeon L5520, 8MB, 60W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a
X5865A-2U [S]	371-4477 [F]	2.26GHz Intel Quad-Core Xeon E5520, 8MB, 80W	n/a
	541-3310 [F]	Xeon Heatsink w/Grease	n/a
	240-6751	Spring Screw	n/a
	310-0211	Pre-greased Heatsink	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	560-2937 [F]	X4275 Cable Kit	n/a
	530-4245	12-Slot Backplane Power Cable	n/a
	530-4246	20-Pin Backplane I2C Cable	n/a
	530-4247	6-Pin Fan Power Cable	n/a
	530-4248	16-Pin FAN I2C Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X4217A-Z [S]	375-3549 [C]	Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X4237A [S]	375-3606 [C]	Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	350--1262	Mounting Bracket	n/a
n/a	541-3386 [F]	12-Slot Disk Backplane	n/a
	350-1262	Mounting Bracket	n/a
	511-1180	12-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS1CR-300G15K [S]	541-3864 [C]	300GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0423	Seagate ST3300656SS [ST330056SSUN300G] (300GB - 15000 RPM - SAS Disk)	n/a
	390-0461	Seagate ST3300657SS [ST330057SSUN300G] (300GB - 15000 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-SS1CR-450G15K [S]	541-3865 [C]	450GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0424	Seagate ST3450856SS [ST345056SSUN450G] (450GB - 15000 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-SS1CR-600G15K [S]	542-0166 [C]	600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0463	Seagate ST3600057SS [ST360057SSUN600G] (600GB - 15000 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
	542-0428 [C]	600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0463	Seagate ST3600057SS [ST360057SSUN600G] (600GB - 15000 RPM - SAS Disk)	n/a
	390-0483	Hitachi HUS156060VLS600 [HUS1560SCSUN600G] (600GB - 15000 RPM - SAS Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-ST1CR-1T7K [S]	540-7891 [C]	1TB - 7200 RPM 3.5" SATA, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0381	Hitachi HUA721010KLA330 [HUA7210SASUN1.0T] (1TB - 7200 RPM - SATA Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-ST1CR-2T7K [S]	542-0167 [C]	2TB - 7200 RPM 3.5" SATA, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0467	Hitachi H7220AA30 [H7220AA30SUN2.0T] (2TB - 7200 RPM - SATA Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a
XRA-ST1CR-32G2SSD [S]	541-3890 [C]	32GB Solid State SATA Drive Assembly	n/a
	371-4196	Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)	n/a
	350-1386	Coral 3.5" Disk Drive Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1109A-Z Buy	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	375-3617 [C]
SG-XPCIEFCOE2-Q-SR [S]	7053422 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S]	7053423 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	375-3682 [C]
X1106A-Z [S]	375-3585 [C]	Intel PRO/10GbE-SR x8 PCI Express	n/a
X1107A-Z [S]	375-3586 [C]	Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket	n/a
X4446A-Z [S]	7054739 [C]	PCI Express Quad Gigabit Ethernet UTP	375-3481 [C]
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	375-3481 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
n/a	375-3617 [C]	Dual 10-Gigabit Ethernet SFP+ LP	n/a
n/a	375-3681 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	n/a
n/a	375-3682 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-3290 [C]	CPU Dual Fan Assembly w/ Metal Fingerguards	n/a
	310-0210	Japan Servo Fan, 60×38mm, 2U	n/a
n/a	541-3394 [F]	Fan Board Assembly	n/a
	330-4940	Top Bracket	n/a
	350-1270	Bottom Bracket	n/a
	511-1239	Fan Board	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM8-Z [S]	371-4295 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053433 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF8-Z [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	341-4139	PCI Filler Panel	n/a
n/a	541-2884 [C]	x8/x8 PCI Express Riser Assembly	n/a
	501-7964	x8/x8 PCI Express Riser	n/a
	541-2531	Bracket	n/a
n/a	541-3356 [C]	x8/x8 Switched PCI Express Riser Assembly	n/a
	511-1139	x8/x8 Switched PCI Express Riser	n/a
	541-2531	Bracket	n/a
n/a	7049269 [C]	x8/x8 PCI Express Riser Assembly	541-2884 [C]
	541-2531	Bracket	n/a
	7049268	x8/x8 PCI Express Riser	501-7964
n/a	7049272 [C]	x8/x8 Switched PCI Express Riser Assembly	541-3356 [C]
	541-2531	Bracket	n/a
	7049271	x8/x8 Switched PCI Express Riser	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X4680A [S]	375-3590 [C]	16GB Compact Flash	n/a
X5866A [S]	371-4282 [C]	2GB Registered DDR3-1066 / DDR3-1333 DIMM	n/a
X5867A [S]	371-4283 [C]	4GB Registered DDR3-1066 / DDR3-1333 DIMM	n/a
X5868A [S]	371-4285 [C]	8GB Registered DDR3-1066 DIMM	n/a
X5869A [S]	371-4287 [C]	2GB Registered DDR3-1333 DIMM	n/a
X5870A [S]	371-4288 [C]	4GB Registered DDR3-1333 DIMM	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
X6328A [S]	300-1897 [C]	Type A217 1050 Watt AC Input Power Supply	n/a
n/a	300-2235 [C]	Type A249 1100/1200 Watt AC Input Power Supply	n/a
n/a	300-2304 [C]	Type A249A 1100/1200 Watt AC Input Power Supply	300-2235 [C]
n/a	541-2073 [F]	Power Distribution Board/Bus Bar Assembly	n/a
	341-3166	Bus Bar Left	n/a
	341-3167	Bus Bar Right	n/a
	371-2484	PDB Signal Cable	n/a
	501-7697	Horizontal Power Distribution Board	n/a
	501-7951	Vertical Power Distribution Board	n/a

NOTE: 1050 Watt Power Supply PN#300-1897 is a previous part to the 1100/1200 Watt Power Supply PN#300-2235. (Reference e0007663)

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X5888A [S]	350-1287 [C]	1U/2U Cable Management Arm	n/a
X5889A [S]	350-1265 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
X5906A [S]	350-1502 [C]	1U/2U Bolt-In Slide Rail Kit	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SG-XPCIE8SAS-I-Z [S]	7064052 [C]	PCI Express 8-Port SAS Controller	371-3255 [C]
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
SGXPCIESAS-R-INT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3536 2 [C]	8-Port SAS Adaptec RAID HBA	n/a
n/a	371-3255 [C]	PCI Express 8-Port SAS Controller	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a
n/a	375-3641 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a

2 Reference Alert article
System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2542 [F]	System Board Assembly	n/a
	501-7917	System Board	n/a
	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a
	541-2543	System Board Tray	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

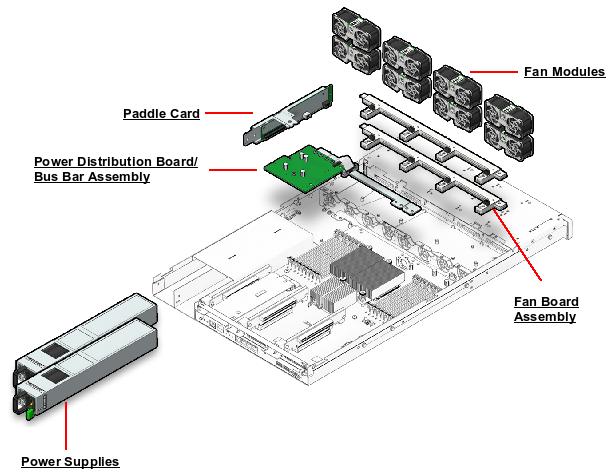

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	341-3569	2U Power Supply Unit Filler Panel
NS	350-1288	DIMM Slot Filler
NS	371-2484	PDB Signal Cable
NS	530-3892 [C]	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm
NS	530-3927 [C]	PDB to System Board Ribbon Cable
NS	530-4228 [C]	SFF8087 to SFF8087 Mini-SAS Cable, 690mm
NS	541-2075 [F]	Bus Bar Set
NS	341-3096	Long Red Bus Bar
NS	341-3104	Short Blue Bus Bar
NS	599-3568	X4275-S1-AA Base Assembly
NS	330-4687	Clear Plastic Air Duct
	341-4139	PCI Filler Panel
NS	540-7870	Hyde Enclosure Assembly
NS	350-1263	Top Cover w/o Labels (see 386-5191)
NS	150-4065	Interlock Switch Magnet
NS	541-3384	Hyde Enclosure Subassembly
NS	350-1257	Chassis (-03) see 386-5185
NS	350-1261	Rear PCI Panel
NS	541-3385 [F]	Connector Board Assembly
NS	341-5081	Mounting Bracket
NS	511-1229	Connector Board
NS	530-3510	Interlock Switch Cable
NS	541-3387 [F]	SAS Expander Card Assembly
NS	330-4945	Bracket
NS	511-1214	SAS Expander Board
NS	541-3388 [F]	Left Indicator Assembly
NS	341-5084	Left Bracket
NS	511-1251	Left LED Board
NS	530-4244	Indicator Cable
NS	541-3389 [F]	Right Indicator Assembly
NS	341-5085	Right Bracket
NS	511-1252	Right LED Board
NS	530-4244	Indicator Cable
