Hitachi HUA721010KLA330 (1.0TB)

3 1/2" 7200 RPM Serial ATA 3.0Gb/s

Option XRA-ST1CH-1T7K
Option XRB-ST1CE-1T7K
Option XTC-ST1CF-1TB7KZ
Option XTA-ST1NG-1T7K
Option XTA-ST1NJ-1T7K
Option XRA-ST1CR-1T7K

390-0381
GeminiK
540-7506 540-7507 540-7590
Spud Bracket FRU
1" Bracket 540-6562
XRB-ST1CE-1T7K		 7210/X4500/X4540/J4500 FRU
1" Bracket 541-0456
XRA-ST1CH-1T7K		 6140/6540 FRU
1" Bracket 541-1406
XTC-ST1CF-1TB7KZ [S]
540-7594 540-7624 540-7891
J4200/J4400 FRU
Interposer 570-1181
Tray 570-1182
XTA-ST1NJ-1T7K		 2500 Series FRU
Bracket 541-7216
XTA-ST1NG-1T7K		 Coral Bracket FRU
Bracket 350-1386
XRA-ST1CR-1T7K
542-0397
J4200/J4400 FRU
Interposer 570-1181
Tray 570-1182
no option

Top Cover Label

Notes

  1. Drive 390-0381 was released in October 2007. (WO_38004)
  2. Assembly 540-7507 with 390-0381 was released in October 2007. (WO_37692)
  3. Assembly 540-7590 with 390-0381 was released in November 2007. (WO_37723)
  4. Assembly 540-7506 with 390-0381 was released in December 2007. (WO_38348)
  5. Assembly 540-7624 with 390-0381 was released in January 2008. (WO_38388)
  6. FRU F540-7594-01 was released in May 2008. (WO_39254)
    The J4200 product team did not release 540-7594 in May 2008.
  7. Assembly 540-7594-01 Rev 00 to Rev 05 includes 390-0381.
    Assembly 540-7594-01 was waivered in October 2008. (WO_39967)
    Assembly 540-7594-01 Rev 50 was inactivated in January 2009. (WO_40642)
  8. Drive 390-0414 replaced 390-0381 in 540-7594 in January 2009. (WO_40642)
  9. Drive 390-0381 was used in 540-7910 in March 2009 by deviation. (WO_40920)
  10. Drive 390-0381 was used in 540-7594 in March 2009 by deviation. (WO_41071)
  11. Drive 390-0381 was used in 540-7594 in July 2009 by deviation. (WO_41769)
  12. Assembly 540-7891 with 390-0381 was released in April 2009. (WO_40670)
  13. Assembly 542-0397 with 390-0381 was released in August 2010. (WO_43249)
  14. Assembly 542-0397 is single sourced from Hitachi for use in Lustre configurations.

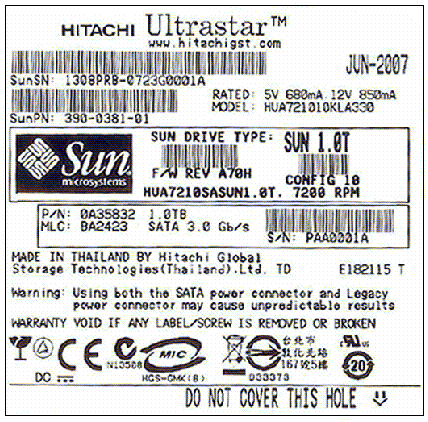

  15. The Hitachi Model Number on the serial number label is HUA721010KLA330
  16. The Sun Model Number on the serial number label is HUA7210SASUN1.0T.
  17. The Product in Identify Device data bytes 31-38 is HUA7210SASUN1.0T.
